Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe
Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe
Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe
Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe
Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe
Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe
Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe
Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe
Specifications
Brand Name :
Yusheng
Model Number :
4*23
Certification :
VDE
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100,000,000 pieces per month
Delivery Time :
7-10 days
Packaging Details :
2000pcs per box, box size: 280*260*320mm
Type :
4*23
Resistance :
R25＝10K±1%,B25/85＝3435±1%
Temperature Range :
-30 to +125℃
Terminal :
SM-2Y (Red Color)
Theory :
Resistance Sensor
Output :
Analog Sensor
Material :
Manganese steel, plastics, Manganese steel nickel plating
Color :
Red, Silver
Lead Wire :
UL 3398 24# 150C Black
Wire Length :
120+/-10mm
Description

10K Ohms 3450 4*23mm Bullet Type Probe NTC Temperature Sensor for Dishwasher

Quick Details:

Product Name NTC Temperature Sensor Model/Type 4*23
Temperature Range -30 to +125℃ Resistance

R25＝10K±1%

B25/50＝3435±1%
Terminal SM-2Y(Red Color) Usage Wall Boiler,Water Heater
Lead Wire UL 3998 24# 150C Black Wire Length 120+/-10mm
Theory Resistance Sensor Output Analog Sensor
Material Manganese steel, plastics, Manganese steel nickel plating Color Red, Silver

Description:

NTC Temperature Sensor is a detection element that feeds back the results to the system.

It is also called thermistor or probe. Its principle is the resistance decreases rapidly when the temperature rises. NTC(Negative Temperature CoeffiCient)refers to thermistor phenomenon and material with negative temperature coefficient, and the resistance decreases exponentially when the temperature rises. NTC Temperature sensors are widely used in household, automotive, industrial, medical and other industries.Generally speaking, temperature sensors are used in most electrical and electronic products that require temperature feedback.

Specifications:

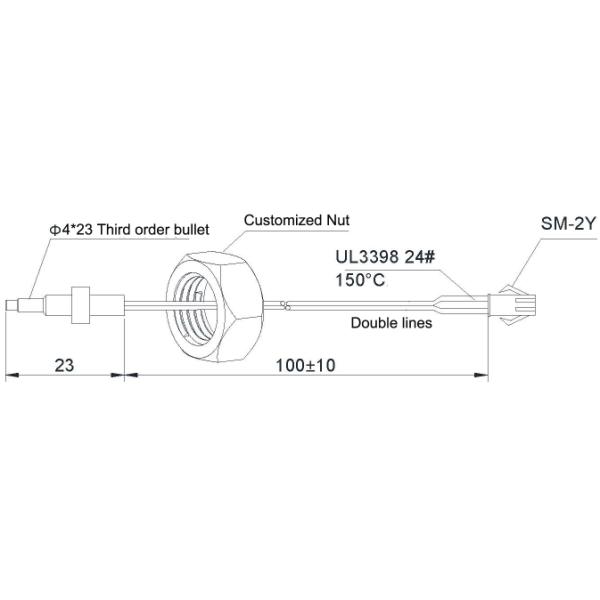

1. Overall Dimensions(mm)

Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe

2. BOM

Part Name Specification QTY
Housing 4*23 Third Order Bullet Probe 1PCS
NTC Element

R25=10KΩ±1% B25/85=33435K±1%,

Single-ended glass sealed

 1PCS
Lead Wire UL3398 24# 150 Deg C Double Lines(Black Color) 120mm
Coating Epoxy G108 Black About 0.3g
Screw Nut Customized Screw Nut 1PCS
Terminal SM-2Y Red Color 1PCS

3. Electrical Specification:

No. Item Sign Test Condition Min. Normal value Max. Unit
3-1. Resistance at 25℃ R25

Ta=25±0.05℃

PT≦0.1mw

 9.9 10 10.1 KΩ
3-2. B Value B25/50 Bullet Type NTC Temperature Sensor Small Size 4*23mm Temperature Probe 3400.7 3435 3469.4 K
3-3. Dissipation factor(in air) σ Ta=25±0.05℃ 3 / / mW/℃
3-4. Time constant(in water) τ

25℃→50℃

T1=25+(50-25)×63.2%

=40.8℃

 / / 5 Sec
3-5. Insulation resistance / 500VDC 100 / / MΩ
3-6. dielectric strength test / 1500V AC 0.5mA 5 / / S
3-7. Operating temperature range / / -30 / 125 ℃

TEMPERATURE VS RESISTANCE TABLE
Resistance 10K Ohms at 25deg. C
Resistance Tolerance + / -1%
B Value 3950K at 25/50 deg. C
B Value Tolerance + / - 1%
Temp. Rmax Rnor Rmin Temp. Rmax Rnor Rmin Temp. Rmax Rnor Rmin
(deg. C) (K Ohms) (K Ohms) (K Ohms) (deg. C) (K Ohms) (K Ohms) (K Ohms) (deg. C) (K Ohms) (K Ohms) (KN.,…. Ohms)
-30 186.361 179.267 172.425 20 12.6537 12.501 12.3479 70 1.7864 1.738 1.6908
-29 174.961 168.405 162.079 21 12.0895 11.949 11.808 71 1.7267 1.6794 1.6332
-28 164.332 158.273 152.422 22 11.5535 11.424 11.2946 72 1.6694 1.6231 1.5779
-27 154.417 148.815 143.402 23 11.0442 10.925 10.8064 73 1.6142 1.5689 1.5247
-26 145.164 139.984 134.975 24 10.5602 10.451 10.3419 74 1.5612 1.5168 1.4736
-25 136.525 131.733 127.096 25 10.1 10 9.9 75 1.5101 1.4667 1.4245
-24 128.456 124.022 119.729 26 9.6709 9.5709 9.471 76 1.461 1.4185 1.3772
-23 120.915 116.811 112.835 27 9.2623 9.1626 9.063 77 1.4137 1.3722 1.3317
-22 113.864 110.065 106.382 28 8.8732 8.7738 8.6747 78 1.3681 1.3275 1.288
-21 107.269 103.751 100.339 29 8.5025 8.4037 8.3052 79 1.3243 1.2845 1.2458
-20 101.098 97.8396 94.6771 30 8.1494 8.0512 7.9534 80 1.282 1.2431 1.2053
-19 95.3201 92.302 89.3705 31 7.8128 7.7154 7.6184 81 1.2413 1.2033 1.1663
-18 89.9088 87.1124 84.3946 32 7.4919 7.3953 7.2993 82 1.2021 1.1649 1.1287
-17 84.8385 82.2471 79.7268 33 7.1859 7.0903 6.9953 83 1.1644 1.1279 1.0926
-16 80.0856 77.6837 75.3463 34 6.894 6.7995 6.7056 84 1.1279 1.0923 1.0577
-15 75.6284 73.4018 71.2336 35 6.6156 6.5221 6.4294 85 1.0928 1.058 1.0241
-14 71.4468 69.3823 67.3708 36 6.3498 6.2576 6.166 86 1.059 1.0249 0.9918
-13 67.522 65.6077 63.7412 37 6.0962 6.0051 5.9148 87 1.0264 0.993 0.9606
-12 63.837 62.0616 60.3295 38 5.854 5.7642 5.6752 88 0.9949 0.9623 0.9306
-11 60.3755 58.7288 57.1212 39 5.6227 5.5342 5.4465 89 0.9646 0.9326 0.9016
-10 57.1228 55.5953 54.1032 40 5.4018 5.3146 5.2283 90 0.9353 0.904 0.8737
-9 54.0651 52.648 51.2629 41 5.1907 5.1049 5.0199 91 0.907 0.8764 0.8468
-8 51.1895 49.8747 48.5889 42 4.989 4.9045 4.821 92 0.8797 0.8498 0.8208
-7 48.4842 47.2643 46.0705 43 4.7961 4.713 4.6309 93 0.8534 0.8241 0.7958
-6 45.9381 44.8062 43.6978 44 4.6117 4.53 4.4494 94 0.828 0.7994 0.7716
-5 43.5409 42.4906 41.4615 45 4.4354 4.3551 4.2759 95 0.8035 0.7754 0.7483
-4 41.2831 40.3086 39.3531 46 4.2667 4.1878 4.11 96 0.7798 0.7523 0.7258
-3 39.1559 38.2516 37.3644 47 4.1053 4.0278 3.9515 97 0.7569 0.73 0.7041
-2 37.1508 36.3117 35.488 48 3.9508 3.8748 3.7999 98 0.7348 0.7085 0.6831
-1 35.2603 34.4817 33.7169 49 3.803 3.7283 3.6548 99 0.7134 0.6877 0.6628
0 33.4771 32.7547 32.0447 50 3.6614 3.5882 3.5161 100 0.6928 0.6676 0.6433
1 31.7945 31.1243 30.4652 51 3.5258 3.454 3.3833 101 0.6728 0.6482 0.6244
2 30.2064 29.5847 28.9728 52 3.396 3.3255 3.2562 102 0.6536 0.6295 0.6062
3 28.7068 28.1301 27.5623 53 3.2715 3.2025 3.1346 103 0.6349 0.6113 0.5885
4 27.2904 26.7556 26.2286 54 3.1523 3.0846 3.0181 104 0.6169 0.5938 0.5715
5 25.9521 25.4562 24.9672 55 3.038 2.9717 2.9065 105 0.5995 0.5769 0.555
6 24.6872 24.2274 23.7738 56 2.9285 2.8635 2.7996 106 0.5826 0.5605 0.5391
7 23.4912 23.065 22.6443 57 2.8234 2.7597 2.6972 107 0.5663 0.5447 0.5237
8 22.3599 21.965 21.575 58 2.7227 2.6603 2.599 108 0.5506 0.5293 0.5089
9 21.2897 20.9239 20.5622 59 2.626 2.5649 2.5049 109 0.5353 0.5145 0.4945
10 20.2768 19.938 19.6028 60 2.5333 2.4734 2.4147 110 0.5206 0.5002 0.4806
11 19.3178 19.0041 18.6937 61 2.4443 2.3856 2.3282 111 0.5063 0.4863 0.4671
12 18.4096 18.1193 17.8318 62 2.3589 2.3014 2.2452 112 0.4924 0.4729 0.4541
13 17.5493 17.2807 17.0146 63 2.2768 2.2206 2.1656 113 0.4791 0.4599 0.4415
14 16.734 16.4857 16.2394 64 2.1981 2.1431 2.0892 114 0.4661 0.4474 0.4293
15 15.9612 15.7317 15.504 65 2.1224 2.0686 2.0159 115 0.4535 0.4352 0.4175
16 15.2284 15.0164 14.8059 66 2.0498 1.997 1.9455 116 0.4414 0.4234 0.4061
17 14.5333 14.3376 14.1432 67 1.98 1.9283 1.8779 117 0.4296 0.412 0.3951
18 13.8738 13.6933 13.5139 68 1.9129 1.8623 1.813 118 0.4182 0.4009 0.3844
19 13.2479 13.0816 12.916 69 1.8484 1.7989 1.7507 119 0.4071 0.3902 0.374
　 　 　 　 　 　 　 　 120 0.3964 0.3799 0.364

Application:

● Cooker: Electric stove, Toaster, Rice cooker, Induction cooker, heatig iron, Bread oven, Electric pan, Cofee maker, Gas stove.
● Heating &Cooling: Air-conditioning, Heaters, Warm bed, Electric carpets, Electric Blankets
● Home Applianance: Water heaters, Boilers, Warm water bidet, Refrigerator, Washing machine, Room dryer, Bathtub, Washtand, Solar systems, Waste disposal machine, Solar heater.
● Other Sets: Thermometers, Electric iron, Hair dryer, Hair coloring device, ironing board.
● OA Set: Copier, Fax Machine, Inkjet printer, LCD printer, Laser printer, Matrix printer, Watches, Camera.
● Automobile: Intake air temperature, Exhasust temperature, Cooling water temperature, Engine temperature, Transmission temperature, Auto air conditioning (interior / exterior / surrounding), Body (thin plate) temperature detection.
● Agriculture: Greehouse cultivation, Germination machine, Tobacco dryer, baking utensils, Granary temperature regulation, Soil, fertilizer.
● Industry: Industrial measuring instruments, Ice maker, developer thermostat, oil temperature, warmer, food processing machines, Oil bath.
● Fishing: Temperature control, water temperature measurement, Sonar, seaweed farming.
● Commercial: Refigerated display racks, vending machine, snow equipment, wine filling machine, ash recycling machine, cold car, battery charger, water purifier
● Medical: Skin surface temperature measurements, rectal, Raynaud's disease diagnosis, incubators, infusion heater, dental amalgam insylation
● Physical / Chemical Research: Temperature measuring, weather observation detectors, surface temperature measurement, reversing (guide) detection devices, satellites, geothermal temperature measurements, atmosphere observation etc.

Advantages:

● High Stability

● High accuracy and precision

● Sensitve reaction, durable

● Easy to install

Tag:

Temperature Probe, Resistance Temperature Detector, Resistance Sensor, Thermistor, Temperature Transducer,

Resistive Temperature Detector
