Specifications
Model Number :
3G
Certification :
UL/CSA
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T, Western Union
Supply Ability :
500,000,000pcs per month
Delivery Time :
5-7 work days
Packaging Details :
1000pcs per box
Brand Name :
Yusheng
Operating Temperature :
-40℃~+125℃
Rated Voltage :
125V/250V
Breaking Capacity :
50 amperes at 125V/250V AC (200mA~6.3A)
Certificate :
UL/CSA
Description

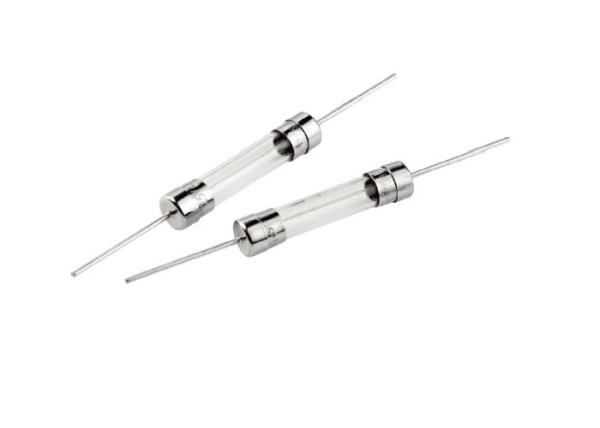

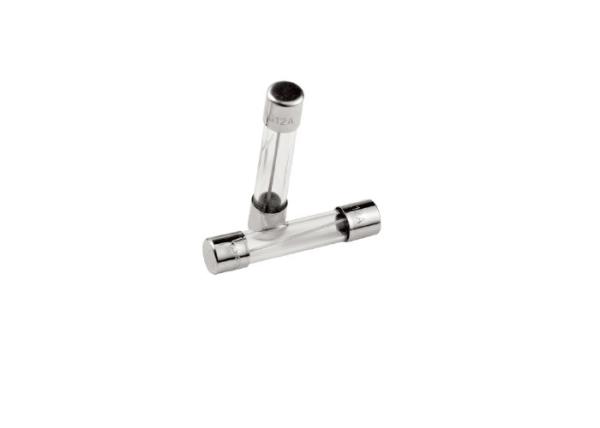

ROHS Compliant Glass Slow Blow 250V 1A Tube Fuse for Electronic Circuit Board


Quick Detail:

Model Material Operating Temeprature Soldering Conditions
3T

Fuse body:glass tube

Terminal:nickel plated brass

Pigtail:tin plated copper on nickel plated brass cap

 -40℃~+125℃ Wave soldering:260℃,≤5s
Hand soldering:360℃,≤1s


Description:


Glass tube fuses are effective at preventing molten metal from splashing onto other devices and keeping out high temperatures.Common glass tube insurance is often used in the device more dense electronic circuit board, because it is convenient for rapid replacement and maintenance of the characteristics, but also can be installed in the wire, plug or special insurance seat.The closed fuse can also be used in explosion-proof places.


Application:


● Electronic circuit board
● PCB board
● Plug
● Special safety seat


Specifications:


1. Dimensional Drawing

Miniature Glass Slow Blow Durable Construction Large Current Easy To Install

①Brass Cap ②Glass Tube ③Lead Wire ④ Fuse Element ⑤Soldering Tin


2. Electrical characteristics

Test Current Blow Time
Min Max
100% 4 h -
200% 100 ms 60 s

Rated Current Rated Voltage Norminal Melting I2T(A2Sec) Approvals
UL
200mA 125V/250V 0.06 ●
250mA 125V/250V 0.10 ●
300mA 125V/250V 0.12 ●
315mA 125V/250V 0.14 ●
350mA 125V/250V 0.18 ●
400mA 125V/250V

0.23

 ●
500mA 125V/250V 0.38 ●
600mA 125V/250V 0.41 ●
630mA 125V/250V 0.42 ●
750mA 125V/250V 0.47 ●
800mA 125V/250V 0.53 ●
1A 125V/250V 0.65 ●
1.25A 125V/250V 1.25 ●
1.5A 125V/250V 2.20 ●
2A 125V/250V 4.10 ●
2.5A 125V/250V 7.20 ●
3A 125V/250V 14.00 ●
3.15A 125V/250V 17.00 ●
3.5A 125V/250V 18.00 ●
4A 125V/250V 19.00 ●
5A 125V/250V 22.00 ●
6A 125V/250V 25.00 ●
6.3A 125V/250V 28.8 ●


3. 3G I-T Average Time Current Curve
Miniature Glass Slow Blow Durable Construction Large Current Easy To Install
4. The installation method is recommended as follows:

Miniature Glass Slow Blow Durable Construction Large Current Easy To Install

Competive Advantages:


● Easy to install
● Wide application

● High quality with low cost

● Passed UL


Tag:


Tube Fuse, Micro Fuse, Slow Brow Fuse, Fast Acting Fuse
