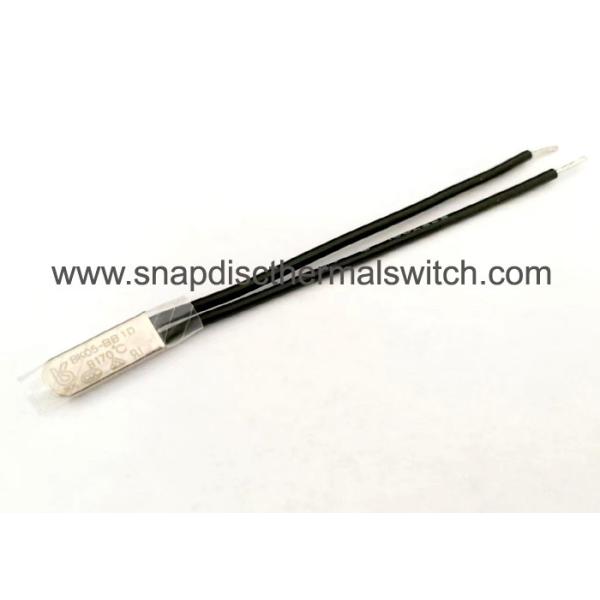

BK05 Normally Closed 16A 170 Deg C Automatic Reset Bi-metal Thermal Protector For Overload Protecting

Quick Detail:

Description:

BK05-BB1D series THERMAL PROTECTOR is a precise protector with small size. It is sensitive, accurate and reliable, especially suitable for heat cable, battery protection board, micro-motor and security protection of transformer. BK05-BB1D series THERMAL PROTECTOR is using a special shape of double metal piece without auxiliary mechanism. The status of metal piece has the fast change is only depended on the self temperature sensing of the metal piece and the current thermal reaction. It makes the contact realize the cut off the power automatically and get through the power. The over heating protection and overload protection will be raised.

Work Principle:

BK05 type bimetal thermal protector is using the double metal piece as e temperature sensing element. When the electrics work normally, the double piece is at the free status, the contact is at close/break off position. When the temperature rises to the action temperature, the double metal piece acts fast by the inside force caused by heating, open/close the contact, cut off/get through the power, the temperature protection function is raised. When the temperature lows to the reset temperature, the contact closes/breaks off automatically and recovery to normal work status.

Applications:

Battery pack, Li battery protect board

Electrical tools

PC board, temperature sensitive cable

Heating-pads, electrical blankets

Fluorescent ballasts and lightings, transformers

Competitive Advantages:

Small size, Installation is more flexible and convenient;

Have the stable work characteristics and excellent reliability;

Sensitive temperature and snap action;

Nickel and wires are optional;

Each type of parts strictly implemented European ROHS environmental standards;

Terminals are optional with normally closed Model B and normally open Model K

Specifications:

1. Dimensional Outline

2. Structural Drawing

Plastic Case Type	Metal Case Type
1. Lead wire 2. Epoxy Resin 3. Stationary Contact Plate 4. Movable Contact 5. Movable Spring Plate 6. Bimetallic Strip 7. Plastic Case 8. Insulation Block 9. Baseplate	1. Lead 2.Epoxy Resin 3. Stationary Contact Plate 4. Movable Contact 5. Movable Spring Plate 6. Bimetallic Strip 7. Metal Case 8. Insulation Block 9. Baseplate 10. Insulating Tube

3. Action Temperature Table
