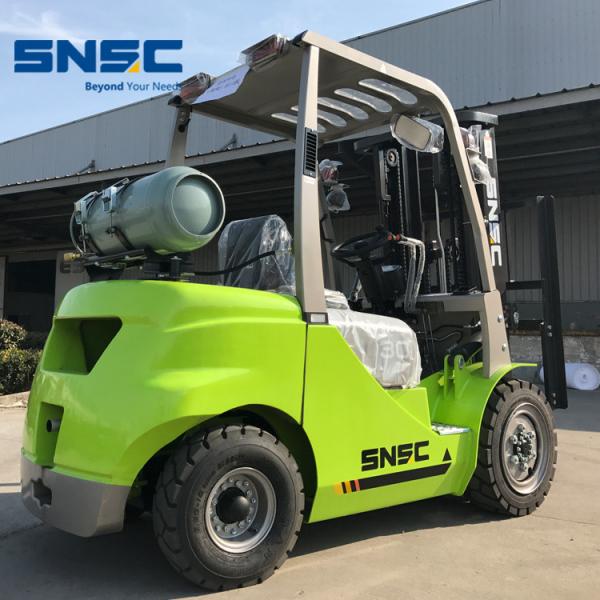

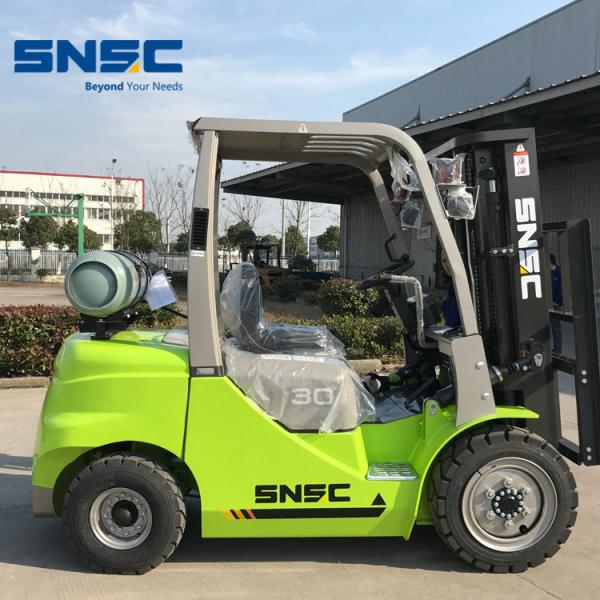

3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
Specifications
Model NO. :
FL30
Fuel :
Petrol & Gas
Load center :
>500mm
Lift height :
3000mm-6000mm
Condition :
New
Engine :
China / Japan for Choice
Mast :
Duplex/Full Free Lift Mast
Tire :
Pneumatic Tire
Transmission :
Automatic Transmission
Attachements :
Side Shifter, Clamps, Positioner Ect
Options :
LED Light, Lux Seat, Fan, Solid Tire Ect
Transport Package :
Container Shipment
Specification :
4250kg
Trademark :
SNSC
Origin :
China, Wuhu
HS Code :
84272090
Supply Ability :
500/Months
After-sales Service :
Online
Warranty :
15 Months
Cab Location :
Adjustable
Type :
Ordinary Combustion Forklift
Power :
LP Gas Engine
Load Capacity :
1T - 5T
Customization :
Available | Customized Request
Place of Origin :
china
Brand Name :
snsc
Certification :
CE/ISO
MOQ :
1 unit
Price :
negotiable
Packaging Details :
shipped by container
Delivery Time :
30-45 Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
Specifications Unit FD30
1 Characteristics Power diesel
2 Rated Capacity kg 3000
3 Center of load mm 500
4 Lifting height mm 3000
5 Free lifting height mm 145
6 Forks L×W×H mm 1070×125×45
7 Tilt Forward/Backward . 6/12
8 Min.turning radius mm 2600
9 Min.ground clearance(Mast) mm 120
10 Overhead guard height mm 2170
11 Height from seat to overhead guard mm 480
12 Front overhang mm 545
13 Perf Max.traveling speed(loaded) km/h 20
14 Max.lifting speed(loaded/empty) mm/s 470/520
15 Drawbar pull/Gradeability kN/% 18/20
16 Dimensions Overall length (without fork) mm 2825
17 Overall width mm 1230
18 Mast lowered height mm 2065
19 Mast extended height mm 4260
20 Chassis Tire Front 28×9-15-12PR
21 Rear 6.50-10-10PR
22 Wheelbase mm 1800
23 Tread width Front/Rear mm 1000/970
24 Curb weight None-load kg 4250
25 Powertrain Battery Voltage/Capacity V/Ah 12/90
26 Engine Model GQ491
27 Rated power kw/r.p.m 31.2/2250
28 Rated torque Nm/r.p.m 143.7/1600
29 Cylinder amount 4
30 Bore×Stroke mm 91×86
31 Displacement 2.237
32 Fuel tank L 70
33 Transmission 1/1 automatic transmission
34 Working pressure MPa 17.5
Mandatory maintance time The first mandatory maintance The second mandatory maintance The third mandatory maintance The fourth mandatory maintance The fifth mandatory maintance The sixth mandatory maintance
Running time 50hours 200 hours 500 hours 800 hours 1100 hours 1400 hours

3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.

Packaging&Shipping 1*20'GP - 2 Units, 1*40'GP - 4 Units

3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
We are first calss in Chinese forklift truck manufactures,with 130,000 square meters production area,over 700 service engineers and 200 sets service vehicles,30,000 units forklift truc production capacity per year ,5000 sets export volume. Our product exported to UK, Russia,Brazil, Austrilia,United Stated, Southeast Asia, Middle East and Afrique, South Amerique ect 130 countries and areas.

Nous sommes premiers cals dans les manufactures de chariots élévateurs chinois, avec 130 000 mètres carrés de la zone de production, plus de 700 ingénieurs de service et 200 ensembles de véhicules de service, 30000 unités chariot élévateur capacité de production par an, 5000 définit le volume d'exportation. Notre produit exporté au r-u, Russie, Brésil, Austrilia, United a indiqué, Asie du sud-est, Moyen-Orient et Afrique, Sud Amerique ect 130 pays et secteurs.

3-7m Lifting Height 2-3.5ton Gas Montacargas Forklift with Imported Nissan K25 Engine
