Fb25 Electric Forklift 2.5 Ton Battery Forklift Truck with Fork Size 1070*122*40mm

Specifications

Place of Origin :

china

Brand Name :

snsc

Certification :

CE/ISO

MOQ :

1 unit

Price :

negotiable

Packaging Details :

shipped by container

Delivery Time :

30-45 Days

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

1000/Month

Model NO. :

FB25

Lift height :

3000~7000mm

Condition :

New

Controller :

USA Curtis Controller

Light :

All LED Light

Hydraulic System :

Japan Shimadzu Hydraulic System

Seat :

Luxury Suspension Seat

Mirror :

Triangle Wide Rearview Mirror

Color :

Green/Yellow/Red/Blue

Rated Load :

3000kg

Fork Size :

1070*122*40mm

Transport Package :

Nude Packing

Trademark :

SNSC

Origin :

China

HS Code :

8427209000

Cab Location :

Adjustable

Type :

Heavy Forklift

Power :

AC Motor

Load Capacity :

1T - 5T

Fuel :

Electric

Load center :

500mm

Customization :

Available | Customized Request

Description

Product Description

Grua horquilla 3 Ton Electric Montacargas Forklift for loading and unloading containers
Specifications				Unit	FB30Z	FB35Z
1	Features	Power type		-	Battery	Battery
2		Rated load		kg	3000	3500
3		Load center		mm	500	500
4		Lifting Height		mm	3000	3000
5		Free lifting height		mm	145	145
6		Fork size	LxWxT	mm	1070X125X40	1070X125X40
7		Mast Tilt Angle	Front/Read	°	6/12	6/12
8		Min. Turning Radius		mm	2245	2385
10		Min. Ground Clearance	Mast	mm	120	120
11		Overhear Guard Height		mm	2170	2300
12		Front Overhang		mm	475	485
14	Performances	Max. Travelling Speed	loaded	Km/h	13.5	13
15		Max. Lifting Speed	loaded/empty	mm/s	280/320	280
17		Max. Climbing Ability		°	15	12
18	Dimension	Overall Length	without fork	mm	2511	2630
19		Overall Width		mm	1225	1225
20		Mast Lowered Height		mm	2055	2095
21		Mast Extended Height		mm	4264	4264
22	Chassis	Tyre	Front	-	28x9-15-12PR	28x9-15-12PR
23		Tyre	Rear	-	18x7-8-14PR	18x7-8-14PR
24		Wheel Base		mm	1600	1720
25		Wheel Thread	Front/Rear	mm	1000/980	1000/980
26		Weight(without load)		kg	4810	5300
27	Powertrain	Battery		V/Ah	80/500	80/560
28		Motor	driving	KW	12	12
29		Motor	lifting	KW	12/14	14
30		Controller			Curtis	Curtis
31		Controller type			50%AC/100%AC	100% AC
32		Working pressure		Mpa	17.5	17.5

3 ton electric forklift exported to Bangladesh

with free-maintenance AC motor

side shift on forklift electric truck

3 ton forklift electric exported to Uzbekistan

AC lifting motor fork lift chariot elevateur
side shift & non-marking tires

3 ton electric forklift exported to Thailand

electric truck 3 ton 80v/520Ah battery fork lift
duplex 4m mast from electric forklift manufacture SNSC

SNSC 3 tons electric forklift exported to Russia

electric forklift pallet trucks montacargas fork lift
triplex 3.6m mast on batterie pour chariot elevateur

Details Description

Imported USA Curtis Controller

SNSC electric forklift use CURTIS controller imported from the USA, which is good quality with stable performance.

Free-maintenance AC Motor

Electric Forklifts Truck Machine with Automatic Electronic Hydraulic Transmission, Free-maintenance AC lifting motor and traveling motor.

3000-7000mm Lifting Mast

SNSC fork lift 2.5 ton electric FB20 FB25 can customized the lifting height 3000-6000mm duplex or triplex 4.5m container mast.

Japan SHIMADZU Hydraulic System

SNSC forklift adopt Japan Shimadzu hydarulic pump & vlave , Quality is more stable and reliable.

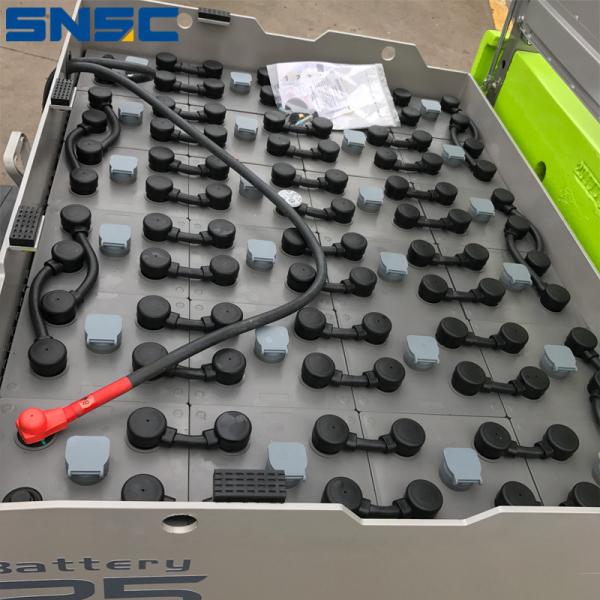

Lead-Acid & Lithium Battery Options

SNSC electric montacargas forklift with lead-acid battery, we have lithium battery as options.

Customized Charger and Plug

SNSC forklift customized the charger and plug according different vlotage request in different countries.

Three-pivot Wide-view Mirror

SNSC forklift use wider back mirror, make driver have a more clear back view to ensure work high-efficiency.

Lights Protection Guard

Light Protection Can extend the the light service life, we also have LED lights for your choice.

Cylinder Anti-dust Protection Cover

electric forklift in china mast cylinder has rubber dust protection, which make forklift mast cylinder free to maintain.

Quality Control

All of our finished products are placed in finished forklifts warehouse waiting for delivery. We adopt strict quality monitor during producing, and all of our forklifts will strict inspection again by quality control department before delivery, to ensure forklifts with high performance. If not passed any test, the forklift is not allowed leave the factory. If the storage time exceeds 1 month, we need do regular maintenance and testing until it leaves the factory.

Delivery and Shipping

In common, SNSC FORKLIFT 2ton/2.5ton Electric Forklift will be shipped by container. When order quantity is 1unit, we will use LCL container shipment; When order quantity is 2-3units, we will use 20ft container shipment; When order quantity is 4-6units, we will use 40ft container shipment; When order quanlity is more than 6units, we will check the most suitable package and delivery way for your reference.

Company Profile

Our SNSC FORKLIFT factory was established in 2010, covering area of 130,000 square meters, has more than 400 employees work for forklift manufacture snsc. Among them, there are nearly 80 engineers, 60 office staff and 300 front-line workers. The annual output is 10,000 sets forklifts truck, the daily output is 40 units fork lift, and the export volume is 3,000 units. Our montacargas exports to more than 130 countries.

What kinds of forklift we are selling:
1. Diesel Forklift Truck Range from 1 to 10tons;
2. Electric Forklift Truck Range from 1.5 to 3.5tons;
3. LPG & Gasoline Forklifts Range from 1.5 to 3.5tons;
4. Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ;

5.Rough terrain forklift from 1.8 ton to 5 ton;

2017.09, 4 units SNSC 3 ton diesel forklift FD30 with ISUZU engine fork lifter to Belgium

2019.05, China forklift 8 units FD30 forklifts truck with side shifter hot sale to Libya

2019.06, China 3 ton forklift SNSC FD30 diesel container mast montacargas to Egypt

2020.03, 8 unit 3.5 tons forklift diesel FD35 chariot elevateur to France

2020.06, 6 units electric forklift FB20H china fork lift sale material handling equipment 2 tons to Canada

2020.08, 6 units diesel forklift 2.5tons FD25H Chinese fork lift trucks to Argentina.

Forklift Optional Attachments

We are dedicated to providing forklift VIP solution to meet all kinds of work condition which means SNSC forklift can be customized. For example, if your want move forks from left to right automatically without moving forklift, we suggest you side shifter. if you want to adjust fork’s distance, we suggest fork positioner. If your working environment is very cold or rainy, we suggest you fully closed cabin with opening windows. And all kinds of attachments, such as paper roll clamp, bale clamp, block clamp, carton clamp, double forks and so on.

Optional Attachments/Clamps/Accessories High Visibility Two-stages Free Lift Mast / High Visibility Three-stages Free Lift Mast / Widen Fork Carriage / Lengthen Forks / Lengthen Fork Extension / Carton Clamp / Hinged Fork / Hinged Bucket / Paper Roll Clamp / Block Clamp / Multi-use Drum Bucket / Load Stabilizer / Load Pusher / Carpet Boom / Crane Jib / Fork Positioner and more other customized Attachments for 2.5ton diesel fork lift SNSC FORKLIFT 2.5t for your choice!
