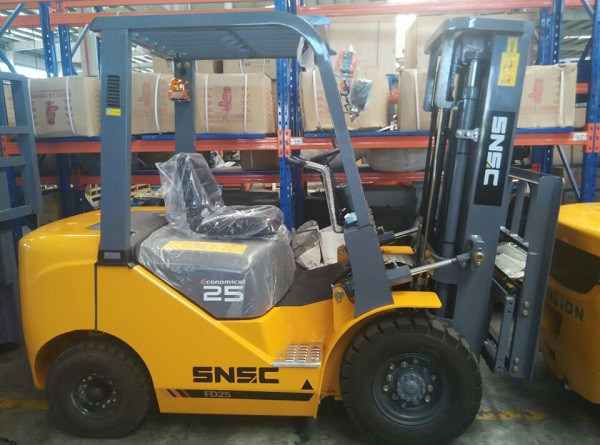

1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
Specifications
Model NO. :
FD25
Lift height :
3000-6000
Condition :
New
Engine Model :
Chinese Xinchai Engine/ Japanese Isuz/ Mitsubishi
Transmission Type :
Auto Electric Hydraulic Transmission
Hydraulic System :
Japanese Hydraulic System
Mast Type :
Duplex 3m/ Triplex Full Free 4.5m/6m
Side Shifter :
Can Be Customized
Solid Tire :
Can Be Customized
Steering Gear :
USA Eaton Brand
Radiator Type :
Copper Radiator
Color :
Red/Yellow/Green/Customized
Cabin :
Can Be Customized
Transport Package :
Nude Package/Container Delivery
Specification :
2570*1175*1990 mm
Trademark :
SNSC
Origin :
China
HS Code :
84272090
Supply Ability :
500/Months
Cab Location :
Adjustable
Type :
Ordinary Combustion Forklift
Power :
Diesel Engine
Load Capacity :
1T - 5T
Fuel :
Diesel
Load center :
500mm
Customization :
Available | Customized Request
Place of Origin :
china
Brand Name :
snsc
Certification :
CE/ISO
MOQ :
1 unit
Price :
negotiable
Packaging Details :
shipped by container
Delivery Time :
30-45 Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
SNSC best configurations FD25 model 2.5 ton diesel forklift truck
SNSC forklift is used to move the goods on a pallet and lift them onto somewhere higher. Meanwhile,
with some proper tools, the forklift could move and stack the goods which not on a pallet or no need of a pallet.
SNSC forklift products have been widely used in papermaking, automobile, tobacco, warehouse, port, logistics, stone and other industries.
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
2.5 ton diesel powered forklift truck with 3m mast
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance

Main Features for SNSC FD25 2.5tons diesel forklift truck

1) Our 2.5tons diesel forklift truck equip with powerful Chinese XINCHAI 490/ original JAPAN ISUZU/MITSUBISHI/ Japan NISSAN K25 engine;

2)with auto electric hydraulic transmission by finger with TCM technology, just use your finger that can achieve the forklift's forward and backward;

3)with JAPANESE hydraulic system, like JAPAN SHIMADZU brand hydraulic pump and muti-way control valves, which can guarantee our snsc 3t forklift's best performance;

4)SNSC diesle 2.5t forklift installed famouse USA EATON brand steering gear, which makes our snsc forklift have longer working life;

5) with a tool box and free spare parts;

6)with CE, ISO, GHOST certificates, quality is guaranteed;

7) SNSC forklift diesel truck can install different attachments to help your work, like paper roll clamp, side shifter,
full free container mast, bale clamp, button clamp, block clamp, cabin, etc.

1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance

Specifications of 2500kg diesel motor forklift truck
This is our standard 2.5ton diesel forklift techincal specifications. We also can customized the fork lifter according to our customer's demands and working conditions.
FD25 FORKLIFT SPECIFICATIONS
No. Specifications Unit FD25
1 1 Characteristics Power diesel
2 2 Rated Capacity kg 2500
3 3 Center of load mm 500
4 4 Lifting height mm 3000
5 5 Free lifting height mm 135
6 6 Forks L×W×H mm 1070x122x40
7 7 Tilt Forward/Backward . 6/12
8 8 Min.turning radius mm 2240
9 9 Min.ground clearance(Mast) mm 110
10 10 Overhead guard height mm 2120
11 11 Height from seat to overhead guard mm 943
12 12 Front overhang mm 473
13 13 Perf Max.traveling speed(loaded) km/h 19
14 14 Max.lifting speed(loaded/empty) mm/s 470/510
15 15 Drawbar pull/Gradeability kN/% 17/20
16 16 Dimensions Overall length (without fork) mm 2570
17 17 Overall width mm 1175
18 18 Mast lowered height mm 1990
19 19 Mast extended height mm 4000
20 20 Chassis Tire Front 7.00-12-12PR
21 21 Rear 6.00-9-10PR
22 22 Wheelbase mm 1600
23 23 Tread width Front/Rear mm 970/970
24 24 Curb weight None-load kg 3750
25 25 Powertrain Battery Voltage/Capacity V/Ah 12/90
26 26 Engine Model XC490BPG
27 27 Rated power kw/r.p.m 37/2650
28 28 Rated torque Nm/r.p.m 148/2000
29 29 Cylinder amount 4
30 30 Bore×Stroke mm 90x100
31 31 Displacement 2.54
32 32 Fuel tank L 60
33 33 Transmission 1/1 automatic transmission
34 34 Working pressure MPa 17.5

Our SNSC FORKLIFT Factory Show

We, SNSC fork lifter factory, are top 3 fork lifter montacargas manufactures and top 20 in the world. with 130,000 square meters production area, over 500 employees,30,000 units forklifter diesel truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are responsible for our customers and forklifts.
''QUALITY LEADING THE FUTURE" is our belief forever.
We'd like to offer our best quality forklifts to our customers from all over the world.
1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance

SNSC FD25 DIESEL FORKLIFT DELIVERY SOLUTIONS:
Our 2.5ton diesel forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 3 units 2.5ton diesel forklifts;
one 40'GP container can hold 6units 2.5ton diesel forklift trucks.

Related SNSC forklift products
Our SNSC forklifts have different forklift series that can meet our customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.


If you have interests in our snsc forklift, welcome you to contact Nicole
