Specifications
Model NO. :
FD30
Lift height :
>5000mm
Condition :
New
Engine :

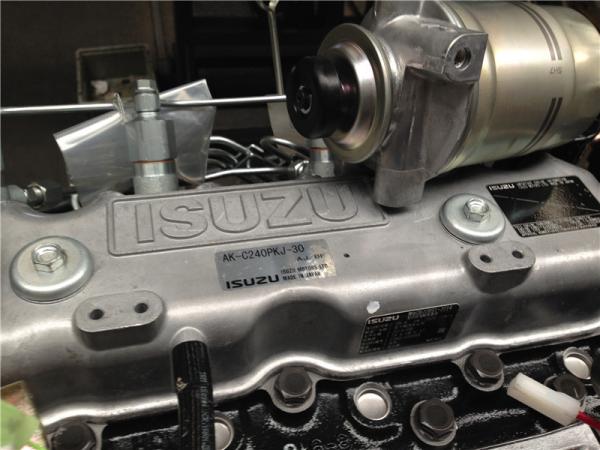

Japan Isuzu C240 or China Xc490
Hydraulic System :
Japan Tcm Technolgy
Gear :
USA Eaton Steering Gear
Transmission :
Automatic Transmission
Seat :
Luxury Suspension Seat
Radiator :
Copper Radiator
Light :
All LED Light
Mirror :
3 Way Wider Back Mirror
Overhead Guard :
Water Proof Overhead Guard
Spare Parts :
Free Filters and Seals Maintance Parts
Multi Valve :
Japan Shimadzu
Warranty Spare Parts :
Filters and Seals
Transport Package :
Nude Package
Specification :
3 Ton
Trademark :
SNSC
Origin :
China
HS Code :
84272090
Supply Ability :
500/Months
Cab Location :
Adjustable
Type :
Heavy Forklift
Power :
Diesel Engine
Load Capacity :
1T - 5T
Fuel :
Diesel
Load center :
500mm
Customization :
Available | Customized Request
Place of Origin :
china
Brand Name :
snsc
Certification :
CE/ISO
MOQ :
1 unit
Price :
negotiable
Packaging Details :
shipped by container
Delivery Time :
30-45 Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

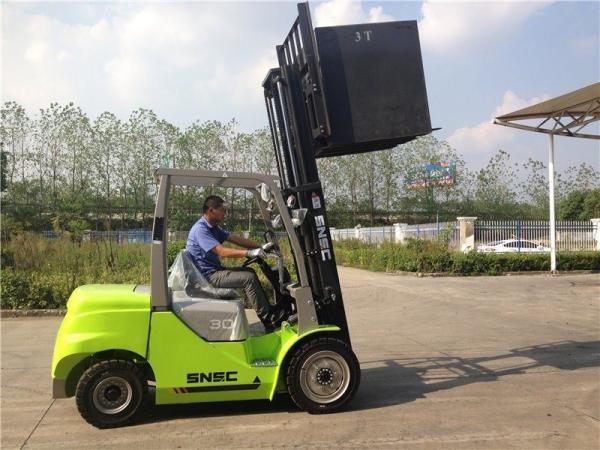

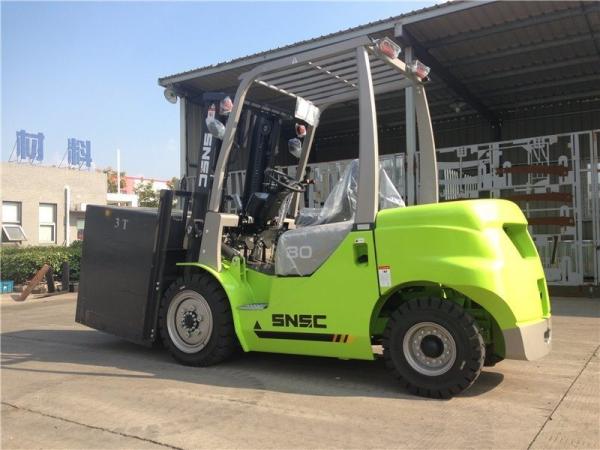

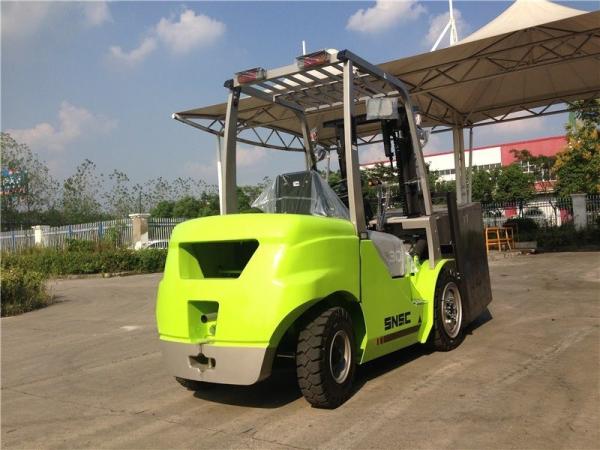

SNSC 3 Ton Diesel Forklift

Snsc 3 Ton Diesel Forklift with Heavy Forklift Gear USA Eaton Steering Gear
Snsc 3 Ton Diesel Forklift with Heavy Forklift Gear USA Eaton Steering Gear
Diesel Forklift Description:
1- Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
2- Japan hydraulic system, by using Shimadzu brand Valve and Pump;
3- USA Eaton steering gear;
4- LED light& Protection , with long durability time;
5- Copper Radiator, with better heat radiation;
6- Red/yellow/green and all kinds of customized colors for your reference;
7- Standard duplex mast, optional 3M-7M duplex / triplex mast;
8 - Standard China XC490 engine, optional Japan Isuzu/Mitsubishi / Yanmar engine;
Snsc 3 Ton Diesel Forklift with Heavy Forklift Gear USA Eaton Steering Gear

Common Optionals:
Japan Isuzu/Mitsubishi engine,Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner.

Container Package Method:
1.5 ton diesel forklift package:20GP container can hold 4 units,40GP container can hold 6 units;
2-2.5 ton diesel forklift package:20GP container can hold 3 units,40GP container can hold 6 units;
3-3.5 ton diesel forklift package:20GP container can hold 2 units,40GP container can hold 4 units.

More Parameters:
Specifications Unit FD30
1 Characteristics Power - diesel
2 Rated Capacity kg 3000
3 Center of load mm 500
4 Lifting height mm 3000
5 Free lifting height mm 145
6 Forks L×W×H mm 1070×125×45
7 Tilt Forward/Backward . 6/12
8 Min.turning radius mm 2600
9 Min.ground clearance(Mast) mm 120
10 Overhead guard height mm 2170
11 Front overhang mm 545
12 Performance Max.traveling speed(loaded) km/h 20
13 Max.lifting speed(loaded/empty) mm/s 470/520
14 Drawback pull/Grade ability kN/% 18/20
15 Dimensions Overall length (without fork) mm 2825
16 Overall width mm 1230
17 Mast lowered height mm 2065
18 Mast extended height mm 4260
19 Chassis Tire Front - 28×9-15-12PR
20 Rear - 6.50-10-10PR
21 Wheelbase mm 1800
22 Tread width Front/Rear mm 1000/970
23 Curb weight None-load kg 4250
24 Powertrain Battery Voltage/Capacity V/Ah 12/90
25 Engine Model - XC490BPG
26 Rated power kw/r.p.m 37/2650
27 Rated torque Nm/r.p.m 148/2000
28 Cylinder amount - 4
29 Bore×Stroke mm 90×105
30 Displacement - 2.54
31 Fuel tank L 70
32 Transmission - 1/1 automatic transmission
33 Working pressure MPa 17.5
Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Snsc 3 Ton Diesel Forklift with Heavy Forklift Gear USA Eaton Steering Gear

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
