Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Specifications
Model NO. :
FD35
Lift height :
3000~5000mm
Condition :
New
Free Lifting Height :
135mm
Fork Size :
1070*125*45mm
Mast Tilt Angle :
6/12 Degree
Min. Ground Clearance :
110mm
Overhead Guard Height :
2130mm
Front Overhang :
483mm
Height From Seat to Overhead Guard :
1000mm
Transport Package :
Nude Package
Trademark :
SNSC
Origin :
China
HS Code :
84270290
Supply Ability :
500/Months
Cab Location :
Not Adjustable
Type :
Diesel Forklift
Power :
Diesel Engine
Load Capacity :
1T - 5T
Fuel :
Diesel
Load center :
500mm
Customization :
Available | Customized Request
Place of Origin :
china
Brand Name :
snsc
Certification :
CE/ISO
MOQ :
1 unit
Price :
negotiable
Packaging Details :
shipped by container
Delivery Time :
30-45 Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Diesel Fork Lifter Price Forklift Truck China Diesel Forklift Truck
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs

We can customize all kinds of diesel forklift attachments according to different customer's working demands,
eg: block clamp or paper roll clamp, or bale clamp/ fork positioner and single double attachment, and so on...
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs


Details:
Japan Isuzu C240 Engine;
Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);
Full free 3-stage 4.5m mast;
With Rotator
Electric Hydraulic Automatic Transmission by TCM technology;
Lamp protection;
Triangle wide view back mirror;
Waterproof overhead guard;
Backing buzzer and warning light;
Solid tyres
Specifications:
Specifications Unit FD35
Features Power type Diesel
Rated load kg 3500
Load center mm 500
Lifting height mm 3000
Free lifting height mm 160
Fork size L*W*T mm 1070*125*50
Mast tilt angle Front/Rear . 6/12
Min. turning radius mm 2445
Min.ground clearance Mast mm 120
Overhead guard height mm 2090
Front overhang mm 488
Performance Max. travelling speed loaded km/h 20
Max. lifting speed loaded/empty mm/s 470/520
Max. traction force loaded KN 18
Max. climbing ability % 20
Dimension Overall length without fork mm 2746
Overall width mm 1230
Mast lowered height mm 2090
Mast extended height mm 4256
Chassis Tyre Front 28x9-15-12PR
Rear 6.50-10-10PR
Wheel base mm 1700
Wheel thread Front/Rear mm 1000/970
Weight(without load) kg 4850
Powertrain Battery V/AH 12/90
Engine Model XC490BPG
Rated power km/r.p.m 42/2650
Rated torque Nm/r.p.m 174/2000
No. cylinder 4
Bore x stroke mm 95X105
Displacement L 2.98
Fuel tank capacity L 70
Transmission/shift 1/1 automatic transmission
Operation pressure Mpa 17.5
Container Package Method:
3-3.5 ton diesel forklift package:20GP container can hold 2 units,40GP container can hold 4 units.

Spare Parts With Delivery:
To guarantee every diesel forklift customer has a good forklift using feeling and longer using life, we send some spare parts for free with every forklift delivery, eg: filters, seal and related

In future, if customers need any spare parts, we will give reflection within 24hours, so please be relax, we will never leave our customers in anxious situation, especially spare parts.

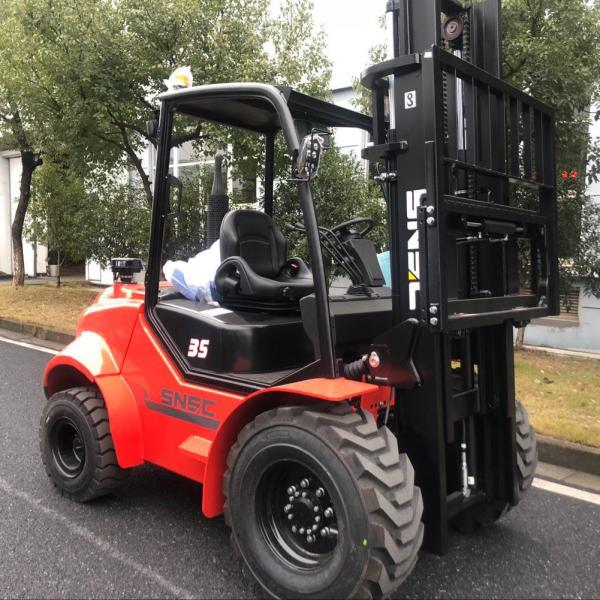

Details of 3.5Ton Diesel Forklift FD35
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
3.5Ton Diesel Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast
CE Configuration:
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Customized 1T - 5T Diesel Forklift Truck for Your Material Handling Needs
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
