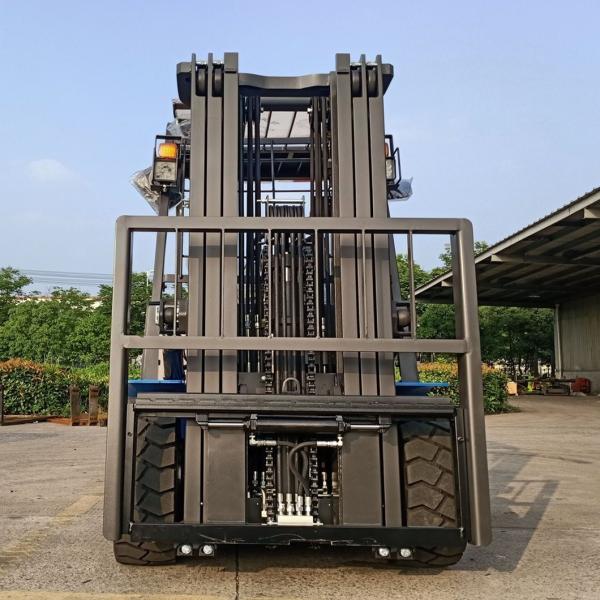

80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
Specifications
Model NO. :
FB30
Fuel :
Electric
Load center :
500mm
Lift height :
3000mm-6000mm
Condition :
New
Engine :
China / Japan for Choice
Tire :
Pneumatic Tire
Mast :
Duplex/Full Free Lift Mast
Transmission :
Automatic Transmission
Options :
LED Light, Lux Seat, Fan, Solid Tire Ect
Attachements :
Side Shifter, Clamps, Positioner Ect
Color :
Customer Customized
OEM Serviece :
Yes
Transport Package :
Container Shipment
Specification :
4810kg
Trademark :
SNSC
Origin :
China, Wuhu
HS Code :
84271090
Supply Ability :
500/Months
After-sales Service :
Online
Warranty :
12 Months
Cab Location :
Adjustable
Type :
Electric Forklift
Power :
AC Motor
Load Capacity :
1T - 5T
Customization :
Available | Customized Request
Place of Origin :
china
Brand Name :
snsc
Certification :
CE/ISO
MOQ :
1 unit
Price :
negotiable
Packaging Details :
shipped by container
Delivery Time :
30-45 Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management


80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
No. Specifications Unit FD35S
1 Characteristics Power
2 Capacity kg 3000
3 Center of load mm 500
4 Lifting height mm 3000
5 Free lifting height mm 145
6 Forks L×W×H mm 1070×125×45
7 Mast tilt angle Forward/Backward . 6/12
8 Min.turning radius mm 2245
9 Min. right angle stacking width mm 3930
10 Min. right angle Aisle width mm 2120
11 Min.ground clearance mm 120
12 Overhead guard height mm 2170
13 Height from seat to overhead guard mm 1005
14 Front overhang mm 475
15 Perf Max.traveling speed(loaded) km/h 13.5
16 Max.lifting speed(loaded) mm/s 280
17 Gradeability % 15
18 Dimensions Overall length (without fork) mm 2511
19 Overall width mm 1225
20 Mast extended height(with bracket) mm 4264
21 Mast lowered height mm 2055
22 Chassis Tire Front 28×9-15-12PR
23 Front 28×9-15-12PR
Rear 18×7-8-14PR
25 Wheelbase mm 1600
26 Tread width Front/Rear mm 1000/980
27 Curb weight None-load kg 4810
28 Powertrain Battery Voltage/Capacity V/Ah 80/500
29 Motor Traveling KW 12
30 Lifting KW 12
31 Controller CURTIS
32 Control type 50%AC
33 Working pressure Mpa 17.5
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse Management
SNSC 3.5Ton Electric forklift main configuration:
With AC DriverMotor,AC Lift Motor;
With Imported Electrical Controller & Water proof LCD Dispaly;
With Chinese top brand battery 80V/500AH;
With Battery charger;
With High quality 1070mm fork, 1220-2500mm for as option;
With Duplex wide view mast 3000mm lifting height; duplex mast 3000mm-triplex mast 7000mm as option;
With Pneumation tire, solide tire and no marking tire as option;
With Toyota seat with safty belft;
With tool box and operation manul;
80V Battery Operated Forklift 1.5ton 2ton 2.5ton 3ton 3.5ton for Warehouse ManagementSNSC Forklift is shipped by container.

Packaging&Shipping 1*20'GP - 2 Units, 1*40'GP - 4 Units

Covered Forklift In Container Shipping with Tool Box, Catalogue, Gloves and Operation and Maintenance Manuals and Spare Parts together.


Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.
