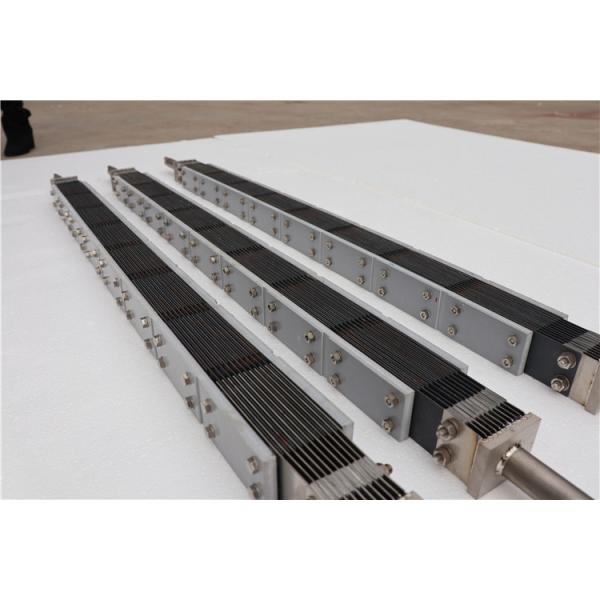

Low Overpotential MMO Titanium Anode High Electric Catalytic Property
Low Overpotential MMO Titanium Anode High Electric Catalytic Property
Low Overpotential MMO Titanium Anode High Electric Catalytic Property
Low Overpotential MMO Titanium Anode High Electric Catalytic Property
Specifications
Brand Name :
Geemblue
Model Number :
GB-400-EC
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
NEGOTIATION
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 set/ month
Delivery Time :
40 days
Packaging Details :
wooden case
Function :
Produce 0.8% Sodium Hypochlorite Liquid
Usage :
brine electrolysis
Current density :
≦10000mA/M2
Coating thickness :
≥1.0um
Available chlorine output :
400 g / h
Material of Cell Body :
High Strength Organic Glass
Description

Low Overpotential MMO Titanium Anode High Electric Catalytic Property

Introduction of electrodes

Electrodes (Anodes & Cathodes) consist of a basic component, which is responsible for mechanical stability and uniform current distribution. As Titanium has all these character, insoluble electrodes are manufactured with titanium as basic component. Occasionally electrodes are also made from Nb, Ta and or Zr. In general, electrodes are available in the form of plate, mesh, rod, wire, ribbon, and customs built. Electro catalytically selective Electrodes from Titanium are superior to conventional Nickel, Lead, Lead alloy, Steel, Graphite & Magnetite Electrodes.

Features:

* High electric catalytic property

* High anti-corrosion property & lasting working life

* Keep the operating voltage stably

* Saving electricity

* Long service life

* Economical and need no maintenance

* Unique chain type nano coating

* first grade pole reverse electrode

* low electric potential for chlorine separation, high electrolytic efficiency

* uniform and sturdy coating

Electrode application

Electro-dialysis in waste water treatment, water conditioning and the synthesis of organic compounds.

Cathodic protection of various structures like offshore, ships, reinforcement bars in concrete.

Wet electro deposition of precious metals like Gold, Rhodium, Platinum, Palladium & Non-ferrous metals like Chromium, Nickel, Copper, Tin, Cobalt & Zinc.

Production of Chlorates, Perchlorate, Chlorine / Caustic, Hypochlorite.

Electrolytic production of chromic acid and Hydrogen from water.

Electrochemical Cleaning of electronic components.

Eelectrochemical Electro-galvanizing of Steel Strip.

Electrolytic metal recovery.

Electrophoresis.

Specification

Material Pure titanium
Dimension Usually customized by your designs, drawings or requirements.
Working life ≥5 years
Technology Punching ,Pulling, Brush painting
Shape Tube, sheet, mesh sheet
Main Working Parameters I. Current density<2000A/M2.
II. Temperature<60°C.
III. PH 1~14.
IV. Max content of Fluoride ion is 50mg/L
Features • Large adaptability to different brine qualities
• Lower energy consumption
• High strength sodium hypochlorite
• Can be washed in order to restore the original permeability
• Harmless and environmental friendly, does not contain any restricted material
Applications Sodium Hypochlorite Generator, swimming pool disinfection, etc.
Certificate ISO 9001
Packing Wooden case
Payment terms T/T, L/C, Western Union, PayPal or as your requirements
Delivery 40 days
