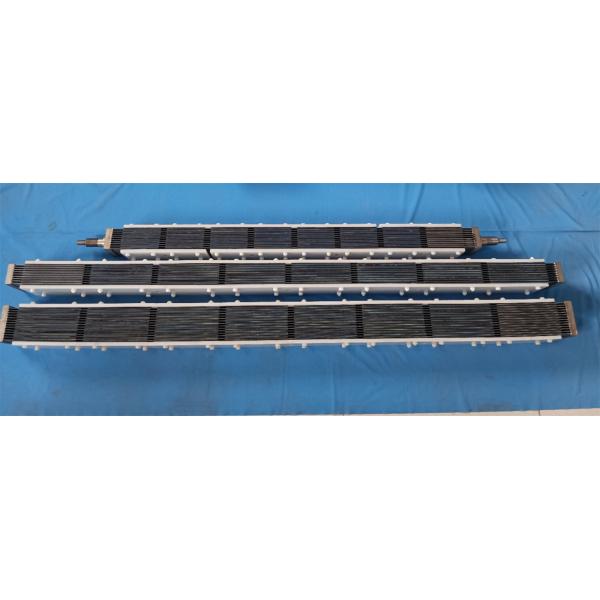

2mm 400L/h Titanium Anode With Ruthenium And Iridium Coating
2mm 400L/h Titanium Anode With Ruthenium And Iridium Coating
Specifications
Brand Name :
GEEMBLUE
Model Number :
EC-2k
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
8000~15000 usd
Supply Ability :
100 set per month
Delivery Time :
20 DAYS
Packaging Details :
Wooden Case
Capacity :
2kg/h
Concentration :
5000~8000ppm
Input current :
180~260A
Input voltage :
28~40V
output flow :
250~400L/h
Anode material :
titanium base with Ru-Ir coating
cell body :
acrylic
electrode plate spacing :
2mm
Cleaning mode :
Acid washing
Salt consumption :
3.5kg per kg CL2
Power consumption :
4kw per kg Cl2
Description

Titanium Anode with Ruthenium and Iridium coating

Introduction:

Titanium anode (MOx anode) is made of ruthenium, iridium, tantalum, rhodium, palladium and other precious metal salts coated on a titanium substrate and then sintered at high temperature.
1.The size of the titanium anode is stable, and the distance between the electrodes does not change during the electrolysis process, which can ensure that the electrolysis operation is performed under the condition of stable voltage.
2. The working voltage of the titanium anode is low, so the power consumption is small, which can save the power consumption, and the DC power consumption can be reduced by 10%-20%.
3. Titanium anode has a long working life, the life time can be customized from 3 years to 10years

Model:

EC-1K EC-2K EC-3K EC-5K EC-8K
Capacity 1Kg/h 2Kg/h 3Kg/h 5Kg/h 8Kg/h
Brine concentration 2.5~3% 2.5~3% 2.5~3% 2.5~3% 2.5~3%
Input current 135~180A 280~360A 400~500A 650~800A 1000~1200A
Input voltage 28~32V 28~32V 28~32V 28~32V 28~32V
NaClO concentration 5000~8000ppm 5000~8000ppm 5000~8000ppm 5000~8000ppm 5000~8000ppm
NaClO output flow 125~200L/h 250~400L/h 375~600L/h 625~1000L/h 1000~1600L/h

Features

1) Effective& environment-friendly method
2) High anti-corrosion property
3) High current efficiency property
4) Low chlorine evolution voltage
5) High catalytic property
6) Long lifetime
7) Light weight electrodes
Keep the operating voltage stably

2mm 400L/h Titanium Anode With Ruthenium And Iridium Coating

Applications:

1) Organic sewage treatment,
2) Chemical sewage treatment,
3) Pesticide sewage treatment,
4) Drinking water disinfection,
5) Bleaching & dyeing,
6) Swimming pool water
7) Domestic sewage treatment,
8) Hospital sewage treatment,
9) Food industry disinfection
Industrial waste water treatment,etc
