Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Automatic Three Tanks RO Water Treatment System With LCD Touch Screen
Specifications
Brand Name :
GEEMBLUE
Model Number :
KYRO-500-PLC
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 3000~4500/SET
Payment Terms :
L/C, T/T
Supply Ability :
30 set per month
Delivery Time :
20 DAYS
Packaging Details :
Wooden Case
Capacity :
500L/h
Recovery Rate :
50%
Desalination Rate :
97%
Output Power :
1.5kw
Membrane Brand :
Dupont
Control Mode :
PLC
Tank Material :
Stanless steel
Operation mode :
LCD touch screen
Description

Automatic stanless steel three tanks RO system with PLC control and LCD touch screen

Description of reverse osmosis water treatment plant

Reverse Osmosis or (RO) can be described as a procedure whereby pure water and contaminants is divided via a semi-permeable membrane(s) with very fine pores. This method is a necessary technique employed in the majority of water purification systems. Reverse Osmosis is considered to be a highly effective approach to eliminating water impurities, such as Toxic Heavy Metals i.e. Lead and Radium, Mercury, Chlorinated Pesticides, organic matters, Turbidity & Dissolved Solids, bacteria, virus.


RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.

Working Process

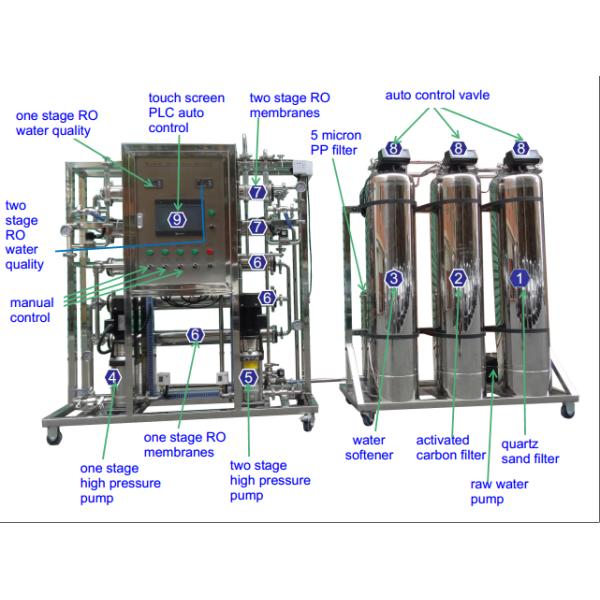

Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→water softener(optional)→ security filter→ high pressure pump →reverse osmosis system→ Ozone sterilizer (UV sterilizer).

Automatic Three Tanks RO Water Treatment System With LCD Touch Screen

Replacement time of consumable parts

There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 years
We suggest customers buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to be replaced every month.

Application Area
1)Food, beverage, drinking water, bottled drinking water, sachet/pouch packing pure drinking water treatment
2)Chemical industry, pharmaceutical industry pure water treatment
3)Electronic industry, semiconductor industry ultrapure water treatment
4)Electroplating and leather industry waste water treatment
5)Brackish water desalination, sea water desalination, metallurgy and light industry pure water treatment
6)Cosmetic products, car battery, liquid fertilizer production pure water treatment
7)Edible cube ice, tube ice etc.
8)School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler, high pressure boiler water treatment

Ro system technical parameters
Item Name
Brand
Material
Function
Raw Water Pump
CNP/Grundfos/Danfoss
SUS-304/316
Provide pressure for filters
Quartz Sand Filter
Geemblue
FRP/ Ss-304/316
Filtrate sediments...
Activated Carbon Filter

Geemblue
FRP/ Ss-304/316
Obsorb odor, smell, color, irons, chlorine... to make clear water
Anti-scalant chemical dosing system/Water Softener
SEKO
Soften water, protect RO Membranes
Security filter
Geemblue
FRP/ Ss-304/316
Remove colloids larger than 5micro
High pressure pump
CNP/Grundfos/Danfoss
SUS-304/316
Provide pressure for Ro membranes
RO vessels &membranes
Domestic&DOW/Toray/Votron/Hydrau.
FRP/Ss-304/316
Remove dissolved ions,organic materia,bateria...
Solenoid valves, gauges,switch...
China
Cooper/Ss-304/316
To protect the machine underoperation
CIP Washing system(optional)
Geemblue
Ss-304/ FRP/316
Membranes maitenance
Electronic control
PLC Program control , LCD touch screen
Water quality detector,AC contacter,Air switch,indicator light,knob switch,electrical miscellaneous pieces...
UV/Ozone(optional)
USA/Dahuang
Remove some baterial like coliform,pseudomonas aeruginosa...(Sterilization)
