Waste Water And Waste Liquid Treatment System
Waste Water And Waste Liquid Treatment System
Specifications
Brand Name :
Geemblue
Model Number :
CFT7
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
NEGOTIATION
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 SET/MONTH
Delivery Time :
60-80 work days
Packaging Details :
wooden case
Model :
CT7
Anode Material :
BDD
Cathode Material :
Titanium
Treatment Capacity :
By water quality
Design Circulating flow :
10m3/h
Head Loss at design ciculating flow :
20KPa
Description

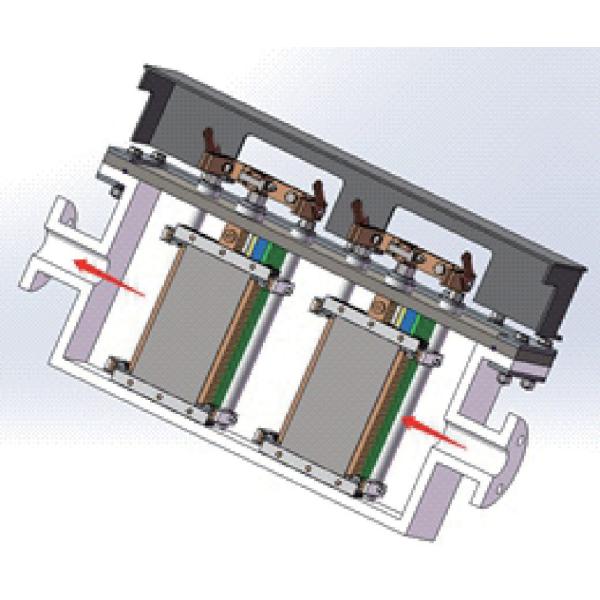

Waste water and Waste Liquid Treatment System

HIGH PROTECTION:the integrated PP electrolytic cell is molded to avoid leakage；

EASY TO CLEAN: it is easier to discharge gas and waste residue when it is used vertically with a bracket；

HIGH EFFICIENCY:baffle-type flow channel design, anode tantalum wire and double short-side packaging to maximize the degradable contact surface.

Waste Water And Waste Liquid Treatment System

Specifications:

Equipment model

CT7

Equipment dimension (L×W×H, mm)

930 x 350 x 535

(The height includes the size of the protective cover)

Weight(kg)

77.9

Anode material

BDD

Cathode material

Titanium

Area of anode strip(㎡)

0.88

Treatment capacity(m³/h)

By water quality

Single-batch processing time(h)

By water quality

Design circulating flow(m³/h)

10

Head loss at design circulating flow(KPa)

20

Current density(mA/c㎡)

≤70(≤301 A)

Maximum heating power(kW)

3.06(Install two modules)

Power input

DC 500 A/20 V

Operating ambient temperature

0 ℃ ~ 40 ℃

Relative humidity

≤90%

Installation method

Indoor

Inlet diameter

DN50 flange

Outlet diameter

DN50 flange
