Softgel Die Roll 10 inch Large Capsule Mold For Making OB / OV Shape With CE
Softgel Die Roll 10 inch Large Capsule Mold For Making OB / OV Shape With CE
Softgel Die Roll 10 inch Large Capsule Mold For Making OB / OV Shape With CE
Softgel Die Roll 10 inch Large Capsule Mold For Making OB / OV Shape With CE
Softgel Die Roll 10 inch Large Capsule Mold For Making OB / OV Shape With CE
Softgel Die Roll 10 inch Large Capsule Mold For Making OB / OV Shape With CE
Softgel Die Roll 10 inch Large Capsule Mold For Making OB / OV Shape With CE
Softgel Die Roll 10 inch Large Capsule Mold For Making OB / OV Shape With CE
Specifications
Brand Name :
Kunyou
Model Number :
Ø 150X250
Certification :
CE,ISO9001
Place of Origin :
China,Beijing
MOQ :
1 set
Payment Terms :
T/T， L/C
Supply Ability :
10 Pairs per week
Delivery Time :
7-10 days
Packaging Details :
Wood cages
Description

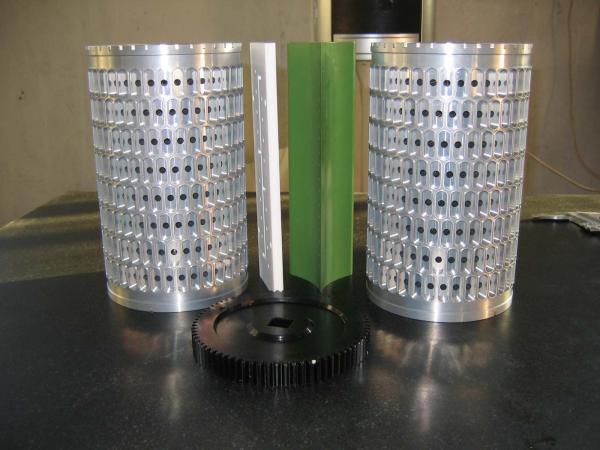

Large Capsule Mold / Softgel Die Roll For Making OB / OV Shape With CE

Quick Detail

Product Name

Large Die roll for softgel and paintball

Certification

CE

Place of Origin

Beijing, China(Main land)

Material

Aluminium alloy

Die roll Speed

0~5 rpm

Product Description

The soft capsules die roll are widely used in softgel making machines for softgel making enterprises and pharmaceutical enterprises. It can make various types of softgel and according to customers’ requirements.

S406 Soft capsule die roll is used for S406 Soft capusle making machine which is suitalble for medium scale production. The raw material of die roll is imported aircraft grade aluminium alloy which has very good strength and tension. Its tension degree can get to 570 MPa and 150 Brinell hardness.

Using the imported aircraft grade aluminium alloy can significantly prolong the life of dies. Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle.

After processing these dies roll, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance. In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.

Softgel Die Roll 10 inch Large Capsule Mold For Making OB / OV Shape With CE

Application

It’s widely used for softgel and paintball making enterprises and pharmaceutical enterprises, including cosmetic manufacturing company and health products manufacturing company and nutrition foods manufacturing.

Specification

Model

Ø 150X250

Die roll diameter(mm)

150

Die roll length(mm)

250

Die roll speed

0-5

Plunger Qty.

20

Machine Overall Dimension

2050×1200×1850mm

Machine Weight(kg)

1900kg

Machine Power(kw)

20kw

Control

PLC.touch screen

Competitive Advantage

1. Widely used for softgel and paintball making enterprises and pharmaceutical enterprises

2. The raw material is imported aircraft grade aluminium alloy
3. Various types of softgel and round paintball
4. product: Metal: Aluminium, copper
5. Make different die roll according to customers’ requirements
6. Softgel Capsules Making machine for laborotary and small scale production
Soft capsule die roll, softgel mold, softgel die roller and paintball die roll, paintball mold.
