Product Application

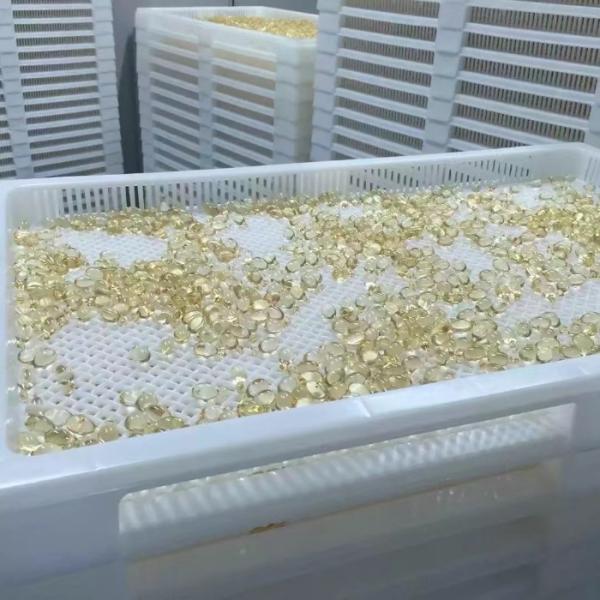

S403 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels.
The production line can be used for Vegetable gelatin capsule production with a little changes. We have helped many customers in USA ,Poland , Demark manufacturing the vegetable gelatin capsule successfully.

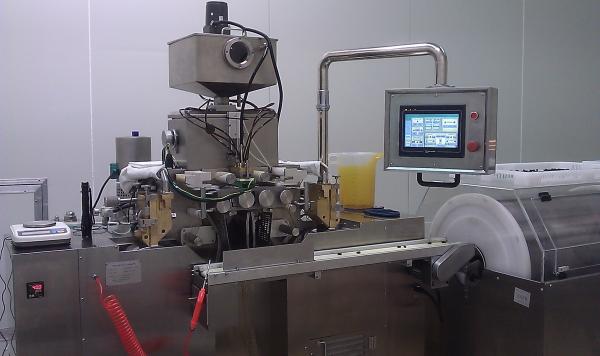

The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc. This machine is the most popular model. It used normal scale production.

Main Features

 Filling tolerance <±1.5%
 Maximum single plunger dosage－ 2ml
 Die Roll Size — Ф80x100mm
 Die Roll Speed — 0~5rpm, stepless adjustable
 Main Motor Power— 0.75 kW
 Main Machine Power — 3kW
 Power — 3 Phase 220V/380V/415V,50Hz/60Hz
 Overall Dimensions(L x W x H) — 1650 x 800 x 2050mm

 Weight — 600kg
 The cooling drums are cooled by both water and air.

 Consumption of compressed air — 50NL/h
 Consumption of gelatin — 2.5L/h( at 3 rpm)
 Material consumption — 4.6L/h(at 3 rpm)

Machine Parts

Name: Lubirication

 Lubrication oil consumption — 70g/h(Based on 3 rpm

Main Features

Name: Pump
Original: Germany
 Maximum single plunger dosage－ 2ml
Dosage Devation <±1.5%

Machine Parts

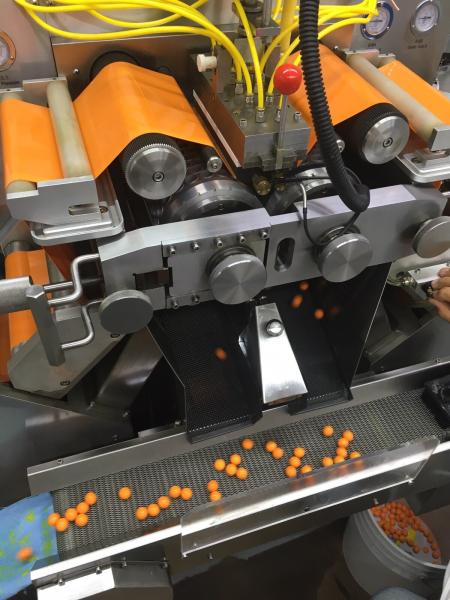

Name: DieRoll
With wedge, distribution plate, etc.
Die rolls are made from aviation high hardness aluminum alloy, injection wedge made from copper and coated with PTFE, meet GMP requirement;

Main Features

Name: Electricity Part
Brand: Schineider
All the contactors, relays, breakers, switches and knobs are Schneider brand.
Control system adopts PLC control.
