Specifications
Brand Name :
OEM/ODM
Model Number :
1000Base-T RJ-45
Certification :
RoHS
Place of Origin :
China
MOQ :
10 pcs
Price :
sales@sogootelecom.com
Payment Terms :
Paypal,T/T, Western union
Supply Ability :
100000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
PP bag+ paper carton
Product Name :
80m 473305A FUFDD MM OD Fiber with Uni boot NSN
Key words :
473305A FUFDD MM OD Fiber LC OD - LC OD 80m
Connector :
LC OD - LC OD
Boot Type :
Uni boot / NSN
Application :
Nokia RFM/RRH
Length :
80m NSN Boot Fiber Optical Jumper
Description

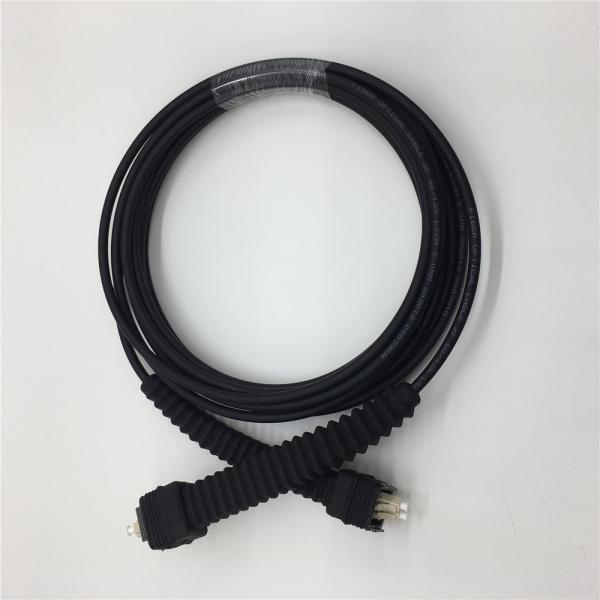

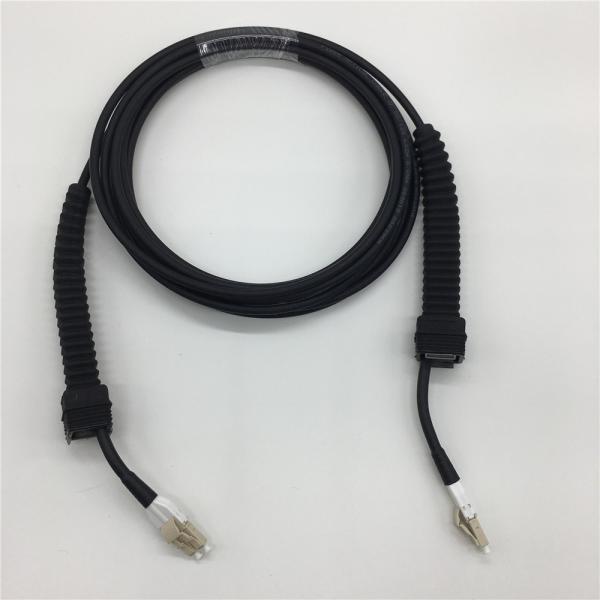

473305A FUFDD MM OD Fiber LC OD - 80m RFM/RRH With NSN Uni Boot For Nokia

FUFDD MM OD Fiber LC OD-LC OD is 80m, used in RFM/RRH applications, the optical cable is OM2, flexible ended Uni boot NSN, compatible with Nokia 473305A. At both sides, LC duplex connectors adopt with flexible tube, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.

Application

  1. Multi-purpose Outdoor.
  2. For connection between distribution box and RRH. 3.Deployment in Remote Radio Head cell tower applications.

Features

1.Easily add/install jumper cables for a future expansion.

2.Low insertion loss and added loss.

3.Height of attenuation.

4.Flexibility with small bending radius and excellent cable routing properties.

5.End-face geometry and quality superior than IEC and Telcordia standards.

6.The material in the jumper cable are all-weather and UV-resistant.

7.IP67 water and dust protection.

8.Mechanical performance: IEC 61754-20 standard.

9.RoHS and REACH materials compliant.

Connector Types

Type Reference Note

LC

IEC 61754-20

Single mode duplex

 UPC: Blue connectors
Multimode duplex UPC: Grey Connectors

Dimensional Diagrams

  1. NSN boot 180°dulex LC Fiber Optic Jumper

End1 473305A FUFDD MM OD Fiber LC OD - LC OD 80m with NSN Uni Boot For Nokia RFM/RRHEnd2

  1. NSN boot 90°dulex LC Fiber Optic Jumper

End1 473305A FUFDD MM OD Fiber LC OD - LC OD 80m with NSN Uni Boot For Nokia RFM/RRHEnd2

3. Flexible LC OD - LC OD Fiber Optic Jumper

473305A FUFDD MM OD Fiber LC OD - LC OD 80m with NSN Uni Boot For Nokia RFM/RRH​

Patch cord versions

Jumper tolerance requirement
Overall length (L) (M) length of tolerance(CM)
0＜L≤20 +10/-0
20＜L≤40 +15/-0
L＞40 +0.5%L/-0

Cable Structure- No Armoureed

473305A FUFDD MM OD Fiber LC OD - LC OD 80m with NSN Uni Boot For Nokia RFM/RRH

Cable Count

Out sheath Diameter

(MM)

Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)

Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 30 800 400 2000 1000 20D 10D -20 ~~ +70

Cable Parameters- Amoured

473305A FUFDD MM OD Fiber LC OD - LC OD 80m with NSN Uni Boot For Nokia RFM/RRH

Cable Count

Out sheath Diameter

(MM)

Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)

Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 45 400 800 2000 3000 20D 10D -20~~+70


Related NSN uni-boot Outdoor optical fiber jumper cable

Name

Product code

Length

Cable label

Usage

Notes

FUFAS MM OD fiber LC
OD-LC OD dual 2 m

473288A

2 m (6.6 ft)

995741

OM2 - RFM/RRH

MM, LC dual OD IP-LC OD IP
dual, HF,OM2
Flexible ended

FUFAR MM OD fiber LC
OD-LC OD dual 5 m

473287A

5 m (16.4 ft)

995740

FUFBC MM OD fiber LC
OD-LC OD dual 10 m

473305A

10 m (32.8 ft)

995758

FUFBA MM OD fiber LC
OD-LC OD dual 30 m

473303A

30 m (98.4 ft)

995756

FUFBB MM OD fiber LC
OD-LC OD dual 50 m

473304A

50 m (164 ft)

995757

FUFAY MM OD fiber LC
OD-LC OD dual 100 m

473302A

100 m (328.1 ft)

995755

FUFBD MM OD fiber LC
OD-LC OD dual 200 m

473306A

200 m (656.2 ft)

995759

473305A FUFDD MM OD Fiber LC OD - LC OD 80m with NSN Uni Boot For Nokia RFM/RRH
