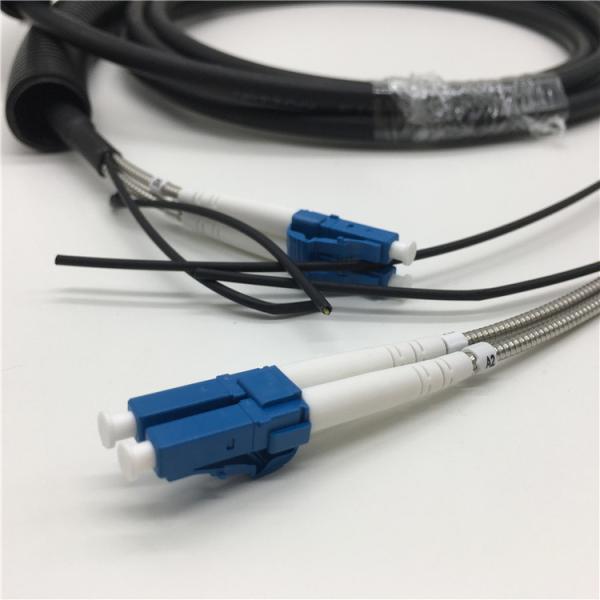

14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores
14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores
14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores
14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores
14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores
14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores
14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores
14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores
Specifications
Brand Name :
SOGOO
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
10 pcs
Price :
sales@sogootelecom.com
Payment Terms :
T/T; Paypal; Western Union
Supply Ability :
2000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
10pcs in 1 Anti-static package, standard packing
Model Number :
14130625
Product Name :
DLC/PC DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores 0.03m/0.34m Optical Cable Assembly
Length :
150m 14130625 Optical Part
Connector :
DLC/PC DLC/PC
Insertion loss :
<=0.3 dB
Wire diameter :
7.0 mm
Cable mode :
2 Cores 0.03m/0.34m armoured
Application :
For Huawei Or ZTE
Description

DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores Optical Cable Assembly , it including 3 &34 cm armoured branch patch cord. It is outdoor Protected Branch Cable. DLC/DLC, GYFJH fiber cable, 2Core, MM,7.0mm dia, SM or MM. Customized length from 10m~ 300m, wide used for 3G 4G 5G base station BBU, RRU, RRH, LTE.

Features:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;
3. The mechanical characteristics of jacket meet the requirements of relevant standards;
4. Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5. Meet various requirements of market and clients

Specification

1. GYFJH Cable

1.1 Structure:

1.2 Application

Mainly used in wireless base station horizontal and vertical cabling

1.3 Features

1, Good mechanical and environmental characteristics;

2, Flame retardant characteristics meet the requirements of relevant standards;

3, The mechanical characteristics of jacket meet the requirements of relevant standards;

4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

5, Meet various requirements of market and clients

1.4 Cable Parameters

Fiber Count

Cable Dimension

mm

Cable Weight

kg/km

Tensile

N

Crush

N/100mm

Min. Bend Radius

mm

Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
2 7.0 42.3 200 400 1100 2200 20D 10D -30-+70

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

3. D is outer diameter of the round cable;



14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores

14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores

Recommend Products

14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores

14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores

Packaging and Shipment

14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores

Contact us

14130625 0.03m/0.34m Optical Cable Assembly DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores

Look forward to your inquiry on DLC/PC DLC/PC GYFJH 2A1a (LSZH) 7.0mm 2 Cores 0.03m/0.34m Optical Cable Assembly.
