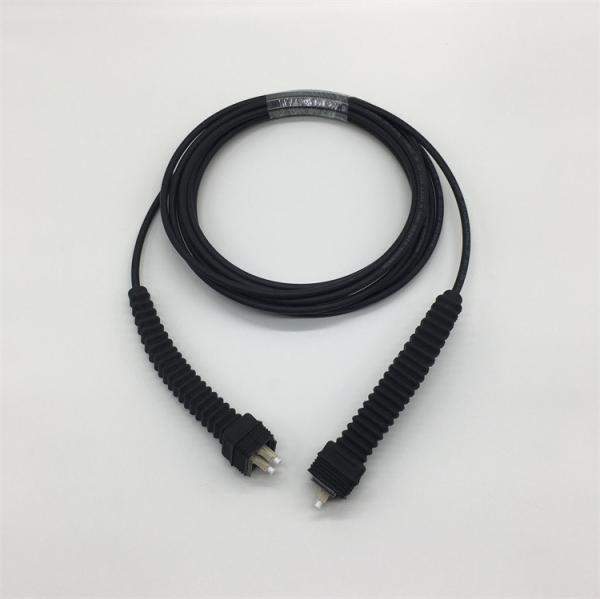

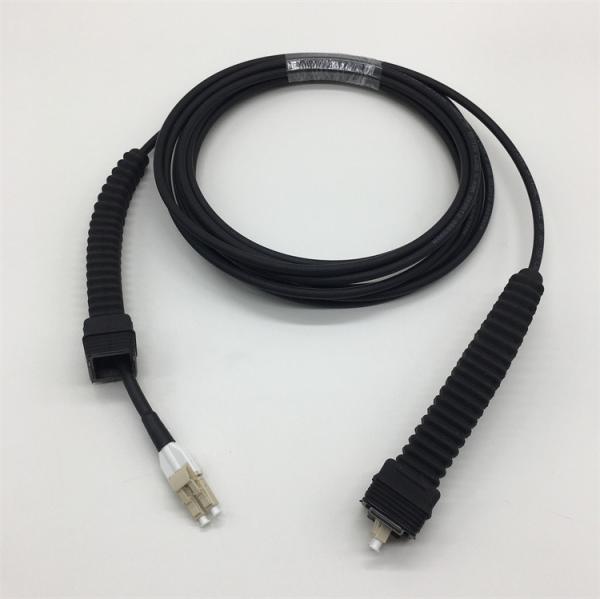

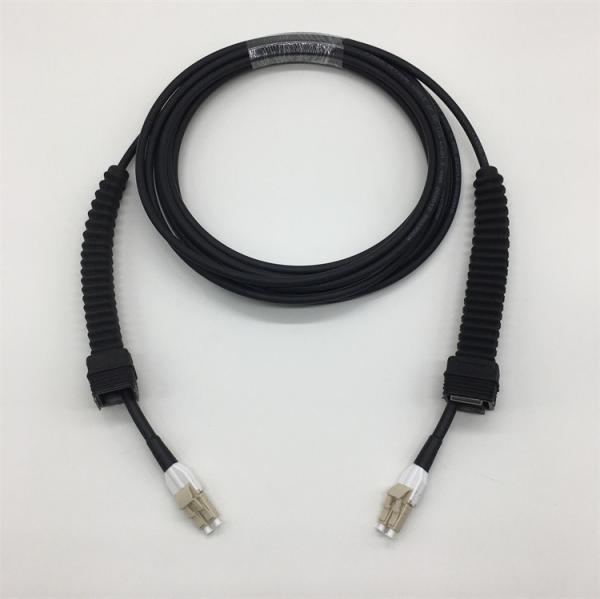

50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot
50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot
50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot
50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot
50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot
50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot
50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot
50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot
Specifications
Brand Name :
SOGOO
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
10 pcs
Price :
sales@sogootelecom.com
Payment Terms :
T/T; Paypal; Western Union
Supply Ability :
100000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
Cartons
Product Name :
50m NSN boot FUFBB MM OD fiber cable
Key words :
50m NSN boot FUFBB fiber cable
Length :
50m NSN FUFBB fiber cable
Connector :
LC with NSN boot
Fiber Mode :
MM
Application :
RRU station
Description

50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, , Dia of 5.0mm

NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, used in RFM/RRH applications, the optical cable is OM2, flexible ended Uni boot NSN, compatible with Nokia 173306A. At both sides, LC duplex connectors adopt with flexible tube, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.

Duplex tight-buffer fiber + central loose tube/ armoured steel tube + kevlar + OD 5.0mm jacket cable, connected with NSN boot LC DX connector.

Product Name : Nokia Patch Cord Compatible NSN Connector LC DX Fiber Optic Cable
Model NSN Uni-boot both end DX LC/UPC-LC/UPC
Cable Type 5.0mm armoured LSZH 2core YOFC fiber
Cable weight 2kg/pc
Length 50m or customized

Features

1.Easily add/install jumper cables for a future expansion.

2.Low insertion loss and added loss.

3.Height of attenuation.

4.Flexibility with small bending radius and excellent cable routing properties.

5.End-face geometry and quality superior than IEC and Telcordia standards.

6.The material in the jumper cable are all-weather and UV-resistant.

7.IP67 water and dust protection.

8.Mechanical performance: IEC 61754-20 standard. 9.RoHS and REACH materials compliant.

Connector Types

Type Reference Note

LC

IEC 61754-20

Single mode duplex

 APC: Green connectors UPC: Blue connectors
Multimode duplex UPC: Grey Connectors

Dimensional Diagrams

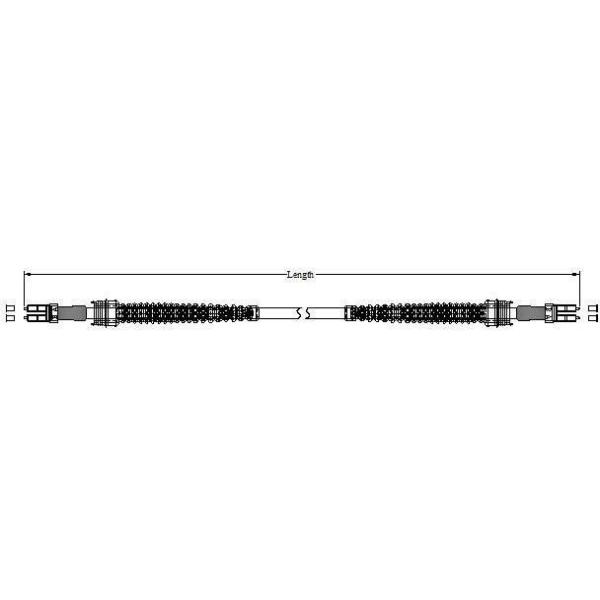

  1. NSN boot 180°dulex LC Fiber Optic Jumper

End1 50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni bootEnd2

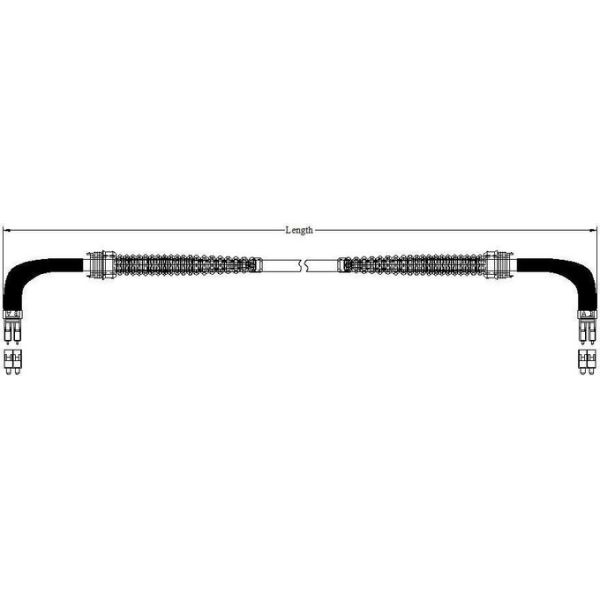

  1. NSN boot 90°dulex LC Fiber Optic Jumper

End1 50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni bootEnd2


Patch cord versions

Jumper tolerance requirement
Overall length (L) (M) length of tolerance(CM)
0＜L≤20 +10/-0
20＜L≤40 +15/-0
L＞40 +0.5%L/-0

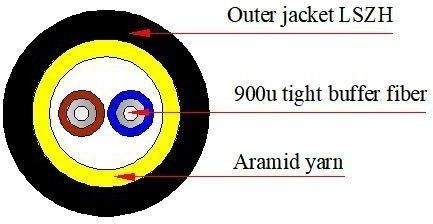

Cable Structure- No Armoureed

50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot

Cable Count

Out sheath Diameter

(MM)

Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)

Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 30 800 400 2000 1000 20D 10D -20 ~~ +70

Cable Parameters- Amoured

50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, Uni boot

Cable Count

Out sheath Diameter

(MM)

Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)

Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 45 400 800 2000 3000 20D 10D

-20~~+70
