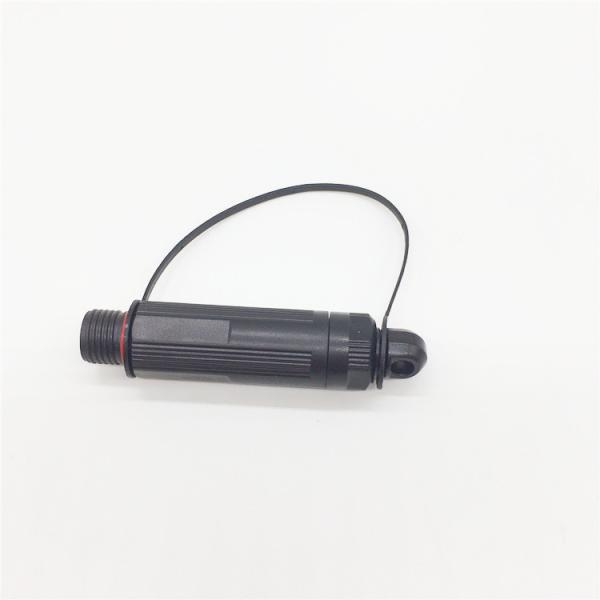

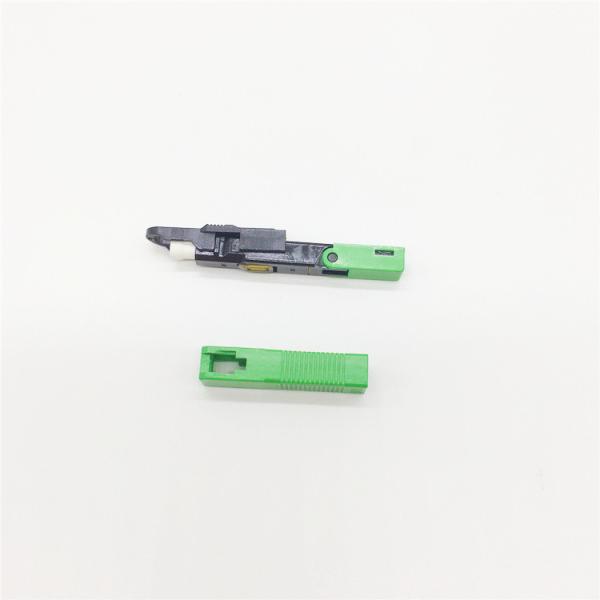

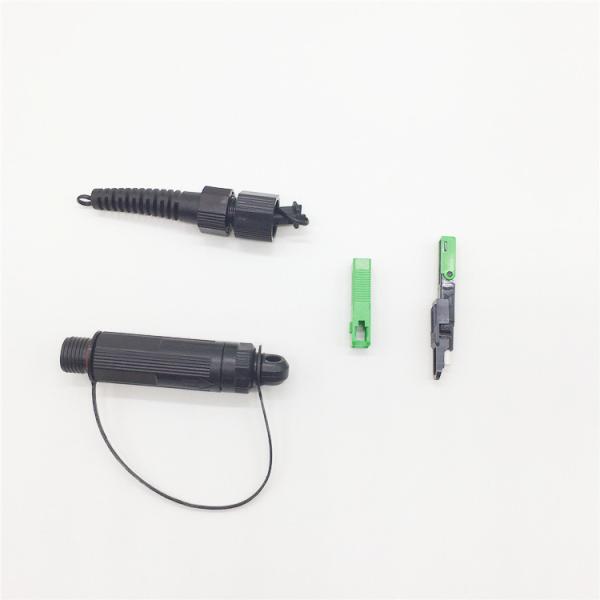

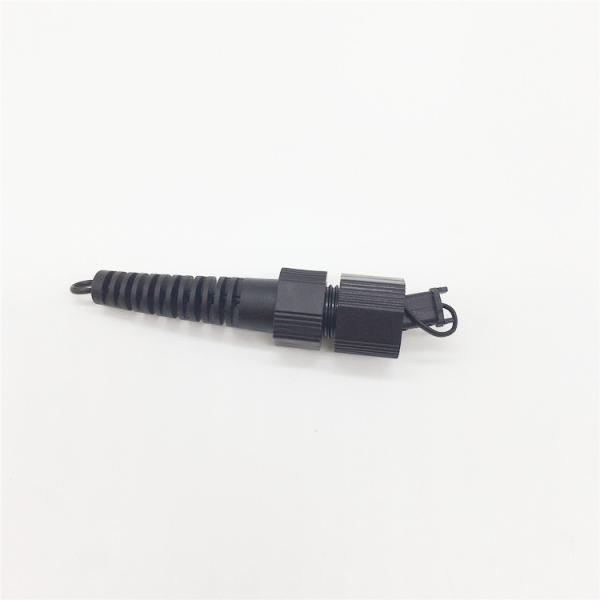

IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector
Specifications
Brand Name :
SOGOO
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
10 pcs
Price :
sales@sogootelecom.com
Payment Terms :
T/T; Paypal; Western Union
Supply Ability :
100000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
Cartons
Product Name :
Mini IP SC Fast Connector Compatible With Huawei Mini SC Connector
Key Words :
Mini IP SC Fast Connector
Type :
Compatible With Huawei Mini SC Connector
Ferrule End-face :
PC, UPC, APC
Packaging :
Cartons
Application :
Huawei BBU RRU application
Description

Mini IP SC Fast Connector Compatible With Huawei Mini SC Connector

Mini IP SC series Field installable fast connector is a new design outdoor waterproof fiber optical connector compatible with Huawei Mini SC connector /adapter . It’s mainly used for FTTH outdoor installation . It’s small and easy to be installed with IP67 grade . Mini sc fast connector is an excellent solutions with Huawei Device and do not need terminated the connector in laboratory . It can bot field assembled very easy to save time and short the project time.

Features

Cost effective solution for in house termination.

Low insertion loss and added loss.

Height of attenuation.

IP67 water, dust proof and corrosion resistant

Mechanical performance: IEC 61754-4 standard.

RoHS and REACH materials compliant.

Cable diameter Range: 2.0*3.0mm Ftth drop cable (Round 5.0/3.0mm cable under design by team will released soon)

Application

FTTH & Outdoor Fiber Terminal End

Harsh Environment

FTTA BBU RRU

Data Video Transmission

Optical Fiber Access Of Mobile Base Station

IEC 61754-4 Huawei BBU RRU Mini IP SC Fast ConnectorIEC 61754-4 Huawei BBU RRU Mini IP SC Fast ConnectorIEC 61754-4 Huawei BBU RRU Mini IP SC Fast ConnectorIEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector

IEC 61754-4 Huawei BBU RRU Mini IP SC Fast Connector

Parameter:

Parameter
Cable Scope 2*3.0mm flat drop cable,
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Return Loss ≥ 50dB for UPC, ≥ 55dB for APC
Success Rate >98%
Reusable Times >5 times
Tensile Strength >30 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB

Environment Performance

Category Specification
Condition IL Variation RL Variation Appearance
High TEMP 110℃,200H ≤ 0.5 ≤5

No mechanical

damage, like

deformation, cracking
Low TEMP -40℃,200H ≤ 0.5 ≤ 5
TEMP Cycling -40~85℃,3.5H/Cle, 100C ≤ 0.5 ≤5
HAST 110℃,90%RH,200H ≤ 0.5 ≤ 5
Immersion 25℃,200H ≤ 0.5 ≤ 5
Salt Mist 5% Nacl,6.5 ≤ 5

Tensile

Pull:50N;The distance between

Loading location and fast connector:

L = 22-28cm;

Duration:1min.

≤ 0.5

≤ 5
