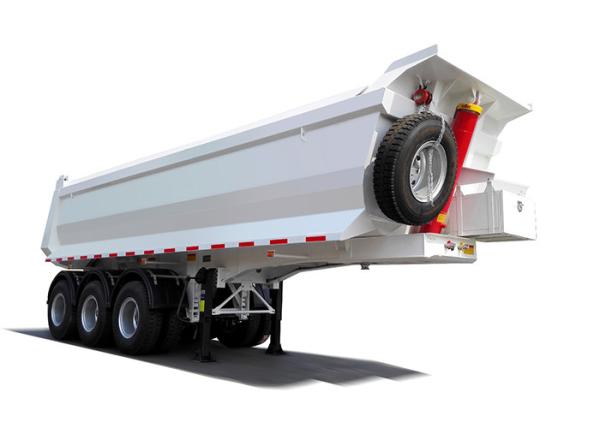

50 Ton U Type Low Bed Semi Trailer Body Tipping , 3 BPW Axles Dumpping Semi Trailer
50 Ton U Type Low Bed Semi Trailer Body Tipping , 3 BPW Axles Dumpping Semi Trailer
Specifications
Brand Name :
Sinoway
Model Number :
SWTST500U
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
D/A, L/C, D/P, T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
30 days
Packaging Details :
Nude
Payload capacity :
50 ton
Axles :
3 axles
Hydraulic system :
HYVA
Tire size :
12R22.5
Overall dimension :
11538×2500×3500mm
Body type :
U type
Description

Semi Trailer Features:
Apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics
Overall assembly and disassembly convenient, can be more than one car, van, car warehouse gate, tailgate car at the same time.
Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.
Advanced means of production technology and perfect testing equipment to protect the the product overall structure is reasonable, reliable performance.
Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.

Main Technical specification 　
Type 3 axle U-shape dump trailer
Overall dimension 11538×2500×3500mm(length×width×height)
King pin setting 1283mm from the face of front bolster
Axle space 6030+1310+1310mm
Tare weight 11.6 Metric ton
Payload 50 Metric ton
Main beam T700, submerged arc welding
Flange and web 14mm/8mm/14mm
Inside dimension 10500×2310×1500mm(length×width×height)
Body capacity 33m³
Floor BHNM450/6mm
Side wall T700/4mm
Front wall T700/4mm
Rear wall T700/4mm
Landing gear Holland DLH-30
Kingpin JOST 2''
Hydraulic system HYVA FC196-5-07300
Brake system Dual lines air brake system,T30 on front two axle,T30/30 on rear two axle, WABCO brake valve ,without ABS
Electrical system 24V ISO1185 standard modular harness
Receptacle 7 way
Suspension Mechanical suspension with 10-leaf spring
Axle 3×16 ton, braking pad width 220mm without ABS
Tire 12R22.5
Rim 8.25*22.5

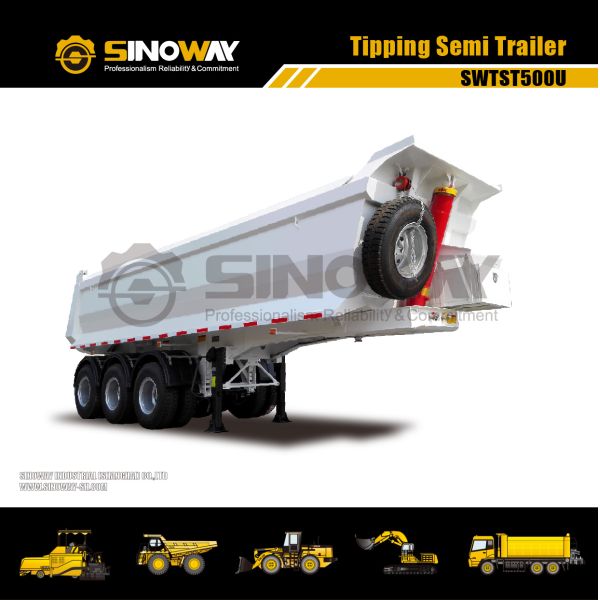

50 Ton U Type Low Bed Semi Trailer Body Tipping , 3 BPW Axles Dumpping Semi Trailer
