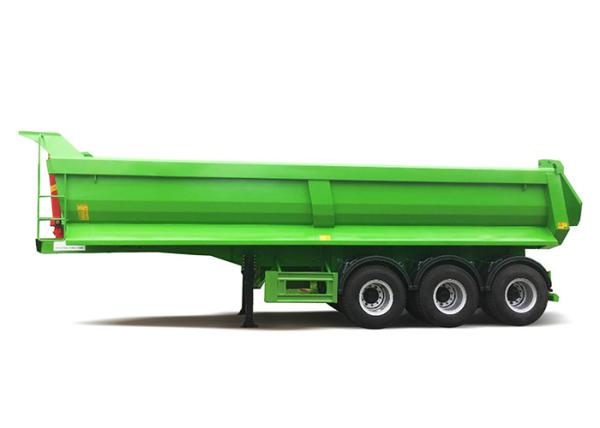

3 Axle Semi Low Bed Trailer , 70 Ton U Shape Dumping Semi Trailer
3 Axle Semi Low Bed Trailer , 70 Ton U Shape Dumping Semi Trailer
Specifications
Brand Name :
Sinoway
Model Number :
SWTST700U
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
D/A, L/C, D/P, T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
30 days
Packaging Details :
Nude
Payload capacity :
70 ton
Axles :
3 axles
Hydraulic system :
HYVA
Tire size :
12R22.5
Kingpin :
JOST 3.5’
Tare weight :
13200kg
Description

Semi Trailer Features:
Apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics
Overall assembly and disassembly convenient, can be more than one car, van, car warehouse gate, tailgate car at the same time.
Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.
Advanced means of production technology and perfect testing equipment to protect the the product overall structure is reasonable, reliable performance.
Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.

Main Technical specification 　
Overall dimension 10235×2940×3680mm
Inner dimension 9200×2700×1650mm
King pin setting 1060mm
Fifth wheel height The height will be adjusted according to the tractor specification
Axle space 5060+1310+1310mm
Tare weight 13200kg(+/- 5%)
Payload 70000kg
Main beam Submerged arc welding
Flange and web 10/6+6/12,High-reinforced Steel,AG700 / T700L
Body Floor: 8; Side wall: 6; High-reinforced/wear-resistant steel (equivalent to HARDOX 450/400)
Tire 12.00R24-20PR, 13 pcs per chassis, including 1 pec of spare tyre
Rim 8.5-24
Axle 3×20T FUWA axles
Suspension 3-axle mechanical suspension with 12 pieces
Hydraulic system HYVA,FCA202-5
Landing gear 30T
Kingpin 3.5”JOST ,exchangeable
Brake system Dual lines air brake system,T30 on front two Axle, T30/30 on Rear two Axle, WABCO brake valve ,without ABS
Electrical system 24V, LED lamp
Spare tire carrier Equip 1 set per chassis
Tool box 1 set
Paint Primer coat+top coat after sand blasting, polyurethane paint
Color By customer’s requirement

3 Axle Semi Low Bed Trailer , 70 Ton U Shape Dumping Semi Trailer
