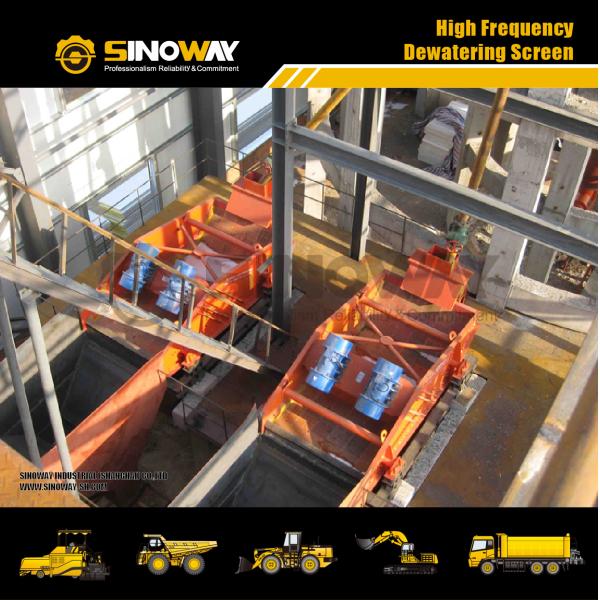

High Frequency Mineral Processing Equipment Vibrating Screen / Dewatering Screen
High Frequency Mineral Processing Equipment Vibrating Screen / Dewatering Screen
Specifications
Brand Name :
SINWOAY
Model Number :
GZS1838
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per year
Delivery Time :
30 days
Packaging Details :
Container
Product Name :
High Frequency Dewatering Screen
Screen Deck Inclination :
-5~-3°
Mesh Size :
0.2~0.5mm
Capacity :
40~120t/h
Power :
2×7.5KW
Weight :
6600kg
Description

High Frequency Vibrating Screen Mineral Processing Equipment High Frequency Dewatering Screen

High frequency dewatering screen is a kind of vibrating screen with high frequency and high vibration intensity. It is mainly suitable for the wet classification and solid-liquid separation of fine material below 0.5mm. Widely used in filtration and dewatering equipment industry such as beneficiation, environmental protection, tailings dry row, concentrate dewatering, slurry concentration, removal of debris, carbon slurry separation etc. This machine is particularly suitable for processing fine minerals. In addition, it can combine with hydrocyclone to be more efficient.

Features and technology advantages

1. Advanced structure, small size, low noise, high dehydration efficiency

2. The screen using the polyurethane sieve plate has the advantages of simple structure, convenient maintenance, durable.

3. High vibration intensity, high frequency of work, rely on the sieve filter layer to retain the fine particles and the material layer extrusion dehydration, the realization of ordinary vibrating screen can not complete the work of large screen seam recycling fine particles.

Working principle

High frequency dewatering screen adopts double vibration motor as power supply. The two motors that rotate synchronously and reversely and centrifugal force is produced by two groups of eccentric block. This makes the screen body periodical to-and-fro moving along the direction of straight line, which is for the purpose of dehydration. The screen frame is connected by the high-intensity bolts, so the structure is stable and durable.

Specification

Model Screen Deck Inclination Mesh Size (Mm) Capacity (T/H) Power (Kw) Weight (Kg)
GZS1036 -5~-3° 0.2~0.5 10~15 2×1.1 3800
GZS1236 -5~-3° 0.2~0.5 18~65 2×2.2 4500
GZS1536 -5~-3° 0.2~0.5 30~90 2×3.0 5700
GZS1838 -5~-3° 0.2~0.5 40~120 2×7.5 6600
GZS2138 -3~-0° 0.2~0.5 60~150 2×7.5 8200
GZS2538 -3~-0° 0.2~0.5 80~200 2×11 11000

High Frequency Mineral Processing Equipment Vibrating Screen / Dewatering Screen
