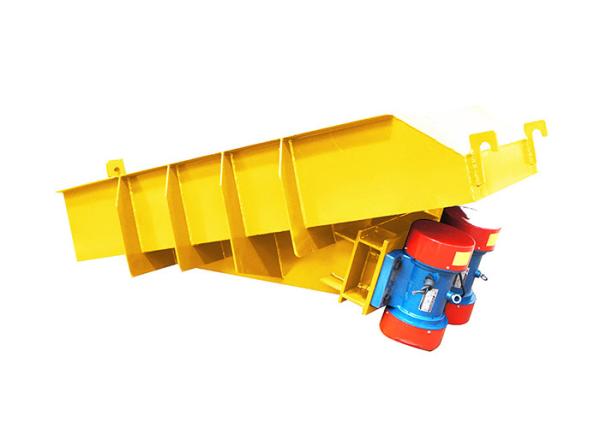

Electromagnetic Vibrating Feeder 2200×1300×300mm Feeding Tank Dimension
Electromagnetic Vibrating Feeder 2200×1300×300mm Feeding Tank Dimension
Specifications
Brand Name :
SINWOAY
Model Number :
GZ8
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per year
Delivery Time :
30 days
Packaging Details :
Container
Product Name :
Electromagnetic Vibrating Feeder
Feeding Tank Dimension :
2200×1300×300mm
Max. Feeding Size :
300mm
Horizontal Feeding capacity :
400t/h
Feed capacity :
560t/h
Power :
4KW
Description

Feeding Material Equipment Mineral Processing Equipment Electromagnetic Vibrating Feeder

Electromagnetic vibrating feeder is a new type of continuous feeding equipment widely used in the manufacturing process of mining, melting, coal, building material, chemical industries. It can be used as the material supply equipment for the belt conveyor, bucker elevator, crusher, etc. Moreover, it can be used for automatic mixing, ration packed and automatic control line for the atomization of the production line.

Features and technology advantages

1.Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost.

2.Adoption the principle of the mechanical vibration, and less energy consumption.

3.Change the volume of flow at any time.

4.Centralized control and automatic control of production process.

Working principle

The electromagnetic vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.

Specification

Model Feeding Tank Dimension (LXWXH) (mm) Max. Feeding Size (mm) Horizontal Feeding capacity (t/h) Feed capacity (t/h) Power
(kW)		 Overall Dimension (LXWXH) (mm) Weight
(kg)
GZ1 600X200X100 50 5 7 0.06 910X376X485 80
GZ2 800X300X120 50 10 14 0.15 1175X608X600 165.5
GZ3 900X400X150 75 25 35 0.2 1325X578X675 223
GZ4 1100X500X200 100 50 70 0.45 1616X762X814 462
GZ5 1200X700X250 150 100 140 0.65 1815X840X980 656
GZ6 1600X900X250 200 150 210 1.5 2410X10925X1500 1252
GZ7 1800X1100X250 250 250 350 3 2800X1330X1710 2017
GZ8 2200X1300X300 300 400 560 4 3302X1556X1995 3153
GZ9 2400X1500X300 350 600 840 5.5 3515X1776X2200 3750
GZ10 2500X1800X375 500 750 1050 4X2 3630X2500X2235 6491
GZ11 2800X2000X375 500 1000 1400 5.5X2 4060X2640X2919 7680
GZ12 3000X2200X400 500 1200 1500 15 5260X2860X2563 8840
GZ13 3200X2500X450 500 1300 1600 15 6394X3040X2864 9920
GZ14 3500X2500X450 550 1500 1700 18.5 7475X3802X3000 11000

Electromagnetic Vibrating Feeder 2200×1300×300mm Feeding Tank Dimension
