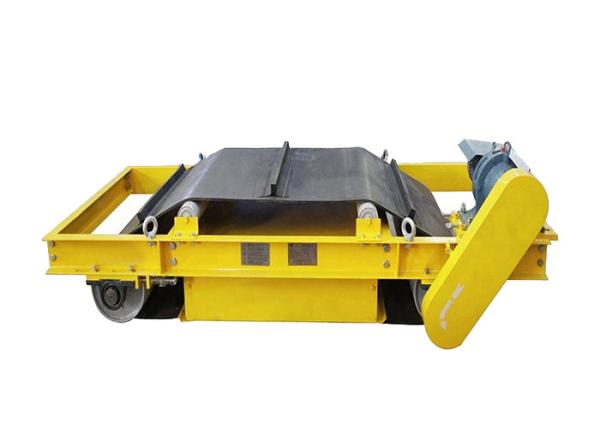

Electromagent Iron Remover Suspended Self Cleaning Cross Belt Magnetic-Separator
Electromagent Iron Remover Suspended Self Cleaning Cross Belt Magnetic-Separator
Specifications
Brand Name :
SINWOAY
Model Number :
RCDD-5
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per year
Delivery Time :
30 days
Packaging Details :
Container
Product Name :
Electromagent Iron Remover
Belt width :
500mm
Rated Suspension Height :
150mm
Magnetic Intensity :
≥70mt
Drive Powe :
2.2KW
Weight :
900kg
Description

Aggregate Processing Equipment Electromagent Iron Remover Suspended-Self-Cleaning-Cross-Belt-Magnetic-Separator

Electromagnetic iron remover is a kind of electromagnetic equipment used to remove iron parts from scattered non-magnetic materials. It is usually installed in the head or middle of belt conveyor. The strong magnetic force produced by electrification will suck up the iron mixed in the material and throw it out by the discharging belt to achieve the purpose of automatic clearance, and can effectively prevent the longitudinal splitting of conveyor belt, and protect the normal work of crusher, grinder, flat iron remover, etc.

The electromagnetic iron remover is composed of the body and the iron removing mechanism. The main body of the iron remover has reasonable magnetic circuit design, high magnetic field intensity and large permeability depth, so it is suitable for removing iron when the material layer is thicker. Because of the fully sealed structure and vacuum drying in the manufacturing process, it can effectively prevent the dust and harmful gases from corroding the coil. It has strong adaptability to the environment and climate and long service life.

Model Belt width (mm) Rated suspension height(mm) Magnetic intensity (mT) Drive power (Kw)

Weight

(Kg)

Suspension dimension

(mm) (DxE)

 Overall dimension(mm) (L×W×H)
RCDD-5 500 150 ≥70　　 2.2 900 900×710 2000×860×700
RCDD-6 650 200 ≥70 2.2 1050 963×835 2300×1000×700
RCDD-8 800 250 ≥70 2.2 1510 1174×985 2500×1150×700
RCDD-10 1000 300 ≥70 3 2030 1420×1283 2900×1450×770
RCDD-12 1200 350 ≥70 3 3050 1616×1500 3150×1650×905
RCDD-14 1400 400 ≥70 4 4550 1760×1665 3600×1812×984
RCDD-16 1600 450 ≥70 5.5 5960 1960×2050 3900×2100×986
