Feeding Material Equipment Belt Conveyor 20~30 m Transport Distance
Feeding Material Equipment Belt Conveyor 20~30 m Transport Distance
Specifications
Brand Name :
SINWOAY
Model Number :
B500
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per year
Delivery Time :
30 days
Packaging Details :
Container
Product Name :
Belt Conveyor
Belt Width :
500mm
Transport Distance :
20~30m
Power :
5.5~7.5KW
Belt Speed :
1.3~1.6m/s
Capacity :
40~80t/h
Description

Easy Installation Feeding Material Equipment Aggregate Processing Equipment Belt Conveyor

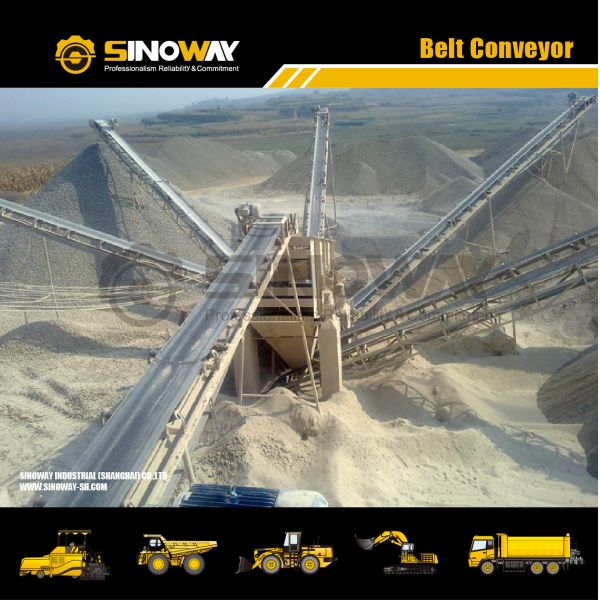

Belt conveyor is widely used in mining, metallurgy and coal industries to convey loose material or packaged material. According to the conveyor processing requirements, the conveying system can be one single machine or multi-conveyors or combined with other transfer equipments. The belt conveyor can be installed horizontally or obliquely to meet the needs of different transfer lines.

Features and technology advantages

1.Rubber or plastic bands with oil resistance, acid and alkali resistance are adopted for materials with special properties.

2.The head of conveyor belt with vulcanized linkage prolongs the service life greatly.

3.Stable conveying, no relative movement between materials and conveyer belt

4.Large capacity, simple structure, convenient maintenance, low operation cost and wide application.

.Working principle

The Belt Conveyor is driven by the motorized pulley and the lifting and running of the whole set is non-motorized. It is suitable for loading and unloading and to deliver bulk materials or integrated items in short distance. The steel tube structure is light, pleasing and with good mobility. The transmission device is a motorized pulley equipped with pneumatic tire and steel wheels, and the dip angle can be adjusted if the conveyor length is more than 10m.

Model B500 B650 B800 B1000 B1200 B1400
Belt Width(mm) 500 650 800 1000 1200 1400

Transport distance(m)

/Power(kw)

 ≤12/3 ≤12/4 ≤10/4 ≤10/5.5 ≤10/7.5 ≤10/15
12~20/3.5~5.5 12~20/4~5.5 10~15/4~5.5 10~20/5.5~11 10~20/7.5~15 10~20/15~18.5
20~30/5.5~7.5 20~30/5.5~11 15~30/5.5~15 20~40/11~22 20~40/15~30 20~40/30~45
Belt Speed(m/s) 1.3~1.6 1.3~2.0
Capacity(t/h) 40~80 80~120 120~200 200~320 290~480 320~600

Feeding Material Equipment Belt Conveyor 20~30 m Transport Distance
