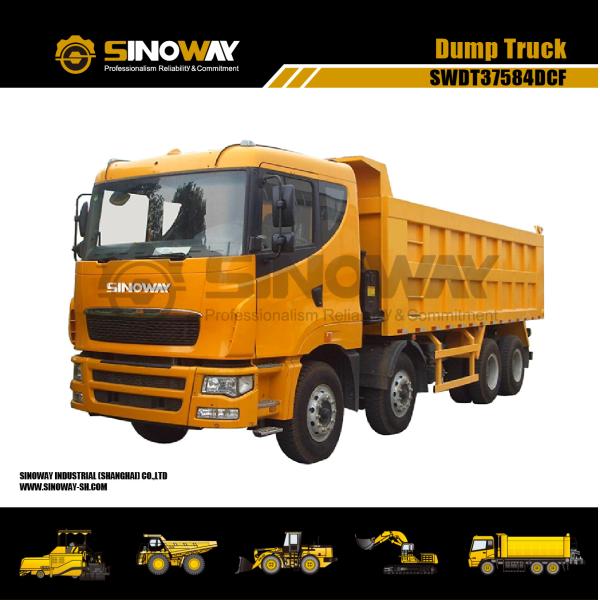

8x4 Construction Dump Truck Tipper , Dump Truck Tipper 375hp Power
8x4 Construction Dump Truck Tipper , Dump Truck Tipper 375hp Power
Specifications
Brand Name :
SINOWAY
Model Number :
SWDT37584DCF
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Dump Truck Tipper
Engine Type :
CM6D18 375 30 ( AVL developed )
Rated power :
276kw/1900rpm
Drive Type :
8x4
Wheel base :
1940+3280+1350mm
Hoist :
HVYA front lifting
Description

375hp Power 8x4 Drive Type Construction Dump Truck Tipper With ZF Transmission System

Engine 　
Make CM6D18 375 30 ( AVL developed )
Type Six cylinder,direct injection turbocharged,water cooled
Max. power 276kw/1900rpm
Max. torque 1750N.m/1100-1500rpm
Number of cylinder 6
Displacement 9.84L
Main Technical Specification 　
Curb weight 16000Kg
Max. payload capacity 40000Kg
Rated axle loading capacity (Front) 2×7500kg
Rated axle loading capacity (Rear) 2×13000kg
Max. traveling speed 85km/h
Max. grade ability 30%
Approach angle 25°
Departure angle 24°
Fuel consumption 35L/100km
Dimensions 　
Overall size(L×W×H) 9880×2495×3360mm
Wheel base 1940+3280+1350mm
Front overhang 1512mm
Rear overhang 1400mm
Transmission System 　

ZF 9S1820, mechanical with synchronizer

　
Ratio 　
Forward 11.26, 7.9, 5.67, 4.07, 2.76, 1.94, 1.39, 1.00
Reverse 12.26
Dump Body 　
Overall length 7200mm
Overall width 2300mm
Overall height 1500mm
Side plate thickness 6mm
Under floor thickness 8mm
Hoist HVYA front lifting
Steering System 　
Hydraulic steering with power assistance
Driving position Left hand drive
Axle And Tyre 　
Front axle Reinforced
Rear axle Reinforced
Rear axle ratio 4.8
Tyre size 1200R20
Electric System 　
Batteries 2*12 Volt – 150 AH*2
Alternator 24 Volt/70A
Starter 24 Volt/7.80kw
Clutch And Brake 　

Single-plate dry coil-spring clutch, hydraulically operated with air assistance

　
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Suspension 　
Front suspension 9 semi-elliptic leaf spring
Rear suspension 12 semi-elliptic leaf spring
