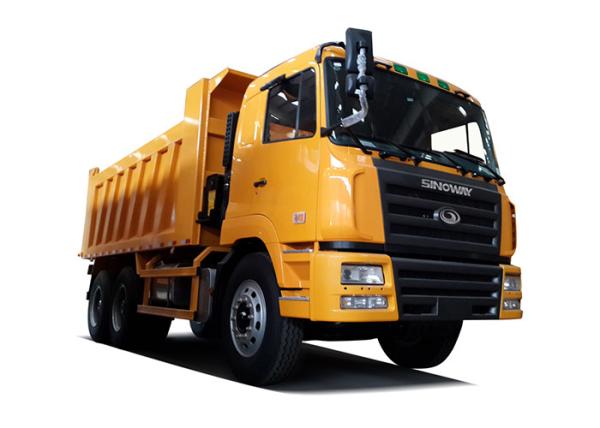

HVYA Front Lifting Heavy Duty Dump Tipper Truck ZF Tech Transmission
HVYA Front Lifting Heavy Duty Dump Tipper Truck ZF Tech Transmission
Specifications
Brand Name :
SINOWAY
Model Number :
SWDT37564H2
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Dump Truck Tipper
Engine Type :
Mechanical, 6 cylinder,water-cooled turbocharged,direct-injection
Transmission System :
ZF tech transmission,mechanical with synchronizer
Rated power :
276KW/1900rpm
Fuel tank capacity :
350L
Fuel consumption :
＜38L/100km
Description

HVYA Front Lifting Heavy Duty Dump/Tipper Truck ZF Tech Transmission,Mechanical With Synchronizer

Engine 　
Make SINOWAY SW6D18.375
Type Mechanical, 6 cylinder,water-cooled
turbocharged,direct-injection
Rated power 276KW
Torque 1900rpm
Main Technical Specification 　
Curb Weight 13000Kg
Max. payload capacity 30000Kg
Axle loading capacity(F/R) 7500/2×16000Kg
Max. traveling speed 85km/h
Grade ability 48%
Approach angle 25°
Departure angle 24°
Fuel consumption ＜38L/100km
Fuel tank capacity 350L
Dimensions 　
Overall size(L×W×H) 8600×2530×3300mm
Wheel base 3900+1450mm
Front overhang 1512mm
Rear overhang 1895mm
Transmission System 　
ZF tech transmission,mechanical with synchronizer 　
Ratio 　
Forward 13.22, 10.54, 7.37, 5.21, 3.47, 2.16,
1.54, 1.00
Reverse 14.26
Dump Body 　
Overall length 5600mm
Overall width 2300mm
Overall height 1500mm
Side plate thickness 6mm
Under floor thickness 8mm
Hoist HVYA front lifting
Steering System 　
Hydraulic steering with power assistance(HITACHI)
Driving position Left hand drive
Axle And Tyre 　
Front axle Reinforced
Rear axle Reinforced
Rear axle ratio 5.73
Tyre size 12.00R20
Electric System 　
Batteries 2*12 Volt – 150 AH*2
Alternator 24 Volt/70A
Starter 24 Volt/7.80kw
Clutch And Brake 　

Single-plate dry coil-spring clutch, hydraulically operated with air assistance

　
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Suspension 　
Front suspension 9 semi-elliptic leaf spring
Rear suspension 12 semi-elliptic leaf spring

HVYA Front Lifting Heavy Duty Dump Tipper Truck ZF Tech Transmission
