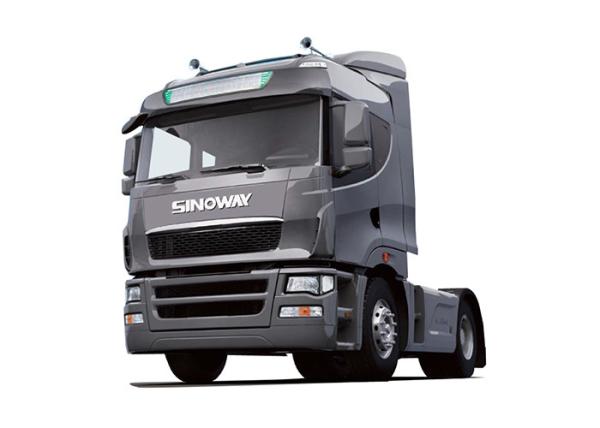

371hp - 460hp Lowbed Semi Trailer Tractor 11.8 L Displacement SWTT46042H9
371hp - 460hp Lowbed Semi Trailer Tractor 11.8 L Displacement SWTT46042H9
Specifications
Brand Name :
SINOWAY
Model Number :
SWTT46042H9
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Truck Tractor
Engine :
SW6D28.460(AVL developed)
Rated power :
338kw/1900rpm
Displacement :
11.8 L
Grade ability :
30%
Peak traction capacity :
40000kg
Description

New Sinoway 336hp 371hp 420hp 460hp Tractor Truck Lowbed Semi Trailer Tractor Truck Tractor

Engine 　
Model SW6D28.460(AVL developed)
Type Six cylinder,four-stroke,water-cooled,
in-line,dry-liner,direct-injection,turbo charged
Controller type Electronic
Air cleaner Dry paper element
Rated power 338KW
Rated speed 1900rpm
Max. torque 2200 N.m/1100-1450rpm
Bore × stroke 128*153 mm
Displacement 11.8 L
Main Technical Specification 　
Curb weight 7800kg
Rated traction capacity 40000kg
Max.traveling speed 110km/h
Min. turning radius 6900mm
Grade ability 30%
Min.ground clearance 320mm
Approach angle 19°
Departure angle 45°
Fuel tank capacity 850L
The fifth wheel JOST2.0"
Fuel consumption 34L/100km
Dimensions 　
Overall size(L×W×H) 6450×2500(2980)×3950mm
Wheel base 3900mm
Tread(F/R) 2065/1860mm
Overhang(F/R) 1550/840mm
Transmission System 　
German ZF 16S-2230TO
16 forward & 2 reverse		 　
Ratio 　
Forward 1 13.8
Forward 2 11.54
Forward 3 9.49
Forward 4 7.93
Forward 5 6.53
Forward 6 5.46
Forward 7 4.57
Forward 8 3.82
Forward 9 3.02
Forward 10 2.53
Forward 11 2.08
Forward 12 1.74
Forward 13 1.43
Forward 14 1.2
Forward 15 1
Forward 16 0.84
Reverse 1 12.92
Reverse 2 10.8
Steering System 　
Driving position Left hand drive
Type HITACHI or equivalent
Electric System 　
Batteries 24 Volt/165Ah
System voltage 24V
Axle And Tyre 　
Front axle capacity 7.5 ton
Front axle type Disk
Rear axle capacity 13 ton
Rear axle type Drum
Ratio 4.11
Tyre size 12R22.5
Clutch And Brake 　
Clutch German SACHS
ABS German KNORR
Service brake Foot operated compressed air
braking system,two circuits,front/rear distribution
Parking brake Hand operated
spring brake system,
brake force applies on the rear axle
Auxiliary brake JACOB engine brake
Emergency brake Two circuits,
front/rear distribution
Suspension 　
Front suspension Tapered leaf spring 4
semi-elliptic leaf spring
Rear suspension Tapered leaf spring 9+6
semi-elliptic leaf spring
