Commercial Concrete Mixer ISUZU Engine Truck Mounted 42m Distributing Height
Commercial Concrete Mixer ISUZU Engine Truck Mounted 42m Distributing Height
Specifications
Brand Name :
SINOWAY
Model Number :
SWTCP42I
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Max. distributing height :
41.58m
Engine :
ISUZU
Max. distributing radius :
37.58m
Max. distributing depth :
29.8m
Condition :
Brand new
Rated power :
380hp/1800rpm
Warranty :
One year or 2000 working hours, whichever comes earlier
Description

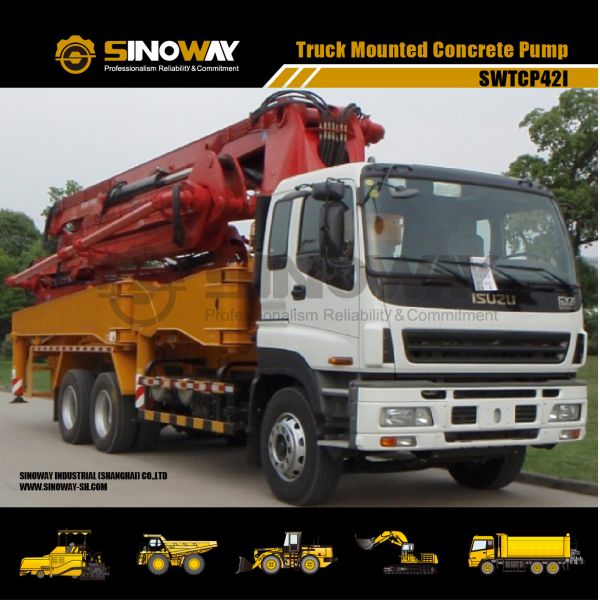

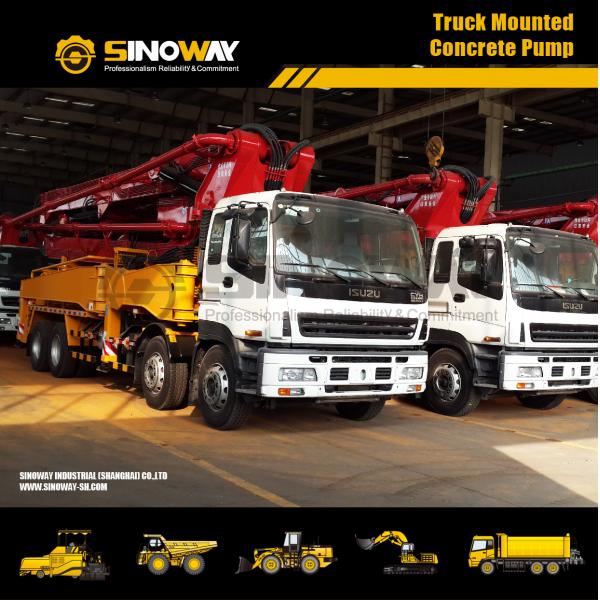

42m Distributing Height ISUZU Engine Truck Mounted Concrete Pump Concrete Pump Truck

Pumping System 　
Output in theory 170/203/m³/h
Max. pumping pressure 7.8MPa
Hopper capacity 550L
Feeding height 1450mm
Distributing valve S pipe valve
Rated work pressure 34Mpa
Pumping frequency 24/29min-1
Chassis And Whole Vehicle 　
Max. travelling speed 96km/h
Drive model 8×4
Engine model Isuzu engine
Rated power 287kw
Rated speed 1800rpm
Max. torque 1863N.m/1100rpm
Displacement 14.256L
Curb weight 34000kg
Wheel base 　
Axle1, Axle2 1850mm
Axle2, Axle3 4605mm
Axle3, Axle4 1310mm
Boom 　
Max. distributing radius 37.58m
Max. distributing height 41.58m
Max. distributing depth 29.8m
Height of boom when stretched 8025mm
Distance between front landing legs 8734mm
Distance between rear landing legs 8808mm
Distance between front and rear landing legs 8845mm
Delivery pipe diameter 125mm
Tail hose length 3000mm
Rotary angle of boom 365°
Boom section 5
Rotary angle of each boom section 90/180/180/180/270°
Boom length 8830/7630/7180/6970/6970mm
Main Components 　
Arm support pump Germany REXROTH
Oil pump Germany REXROTH
Balance valve Germany HAWE
Solenoid valve USA EATON
Hydraulic valve USA EATON
Sealing element USA PARKER
Connector Germany EMB
Hose Italy MANULI
Proportional multiway valve Germany HAWE
Wireless romote-control device Germany HBC
Dimension 　
Overall length 12600mm
Overall width 2495mm
Overall height 3990mm
Service Capacities 　
Fuel tank 400L
Water tank 600L
Hydraulic tank 600L

Commercial Concrete Mixer ISUZU Engine Truck Mounted 42m Distributing HeightCommercial Concrete Mixer ISUZU Engine Truck Mounted 42m Distributing Height
