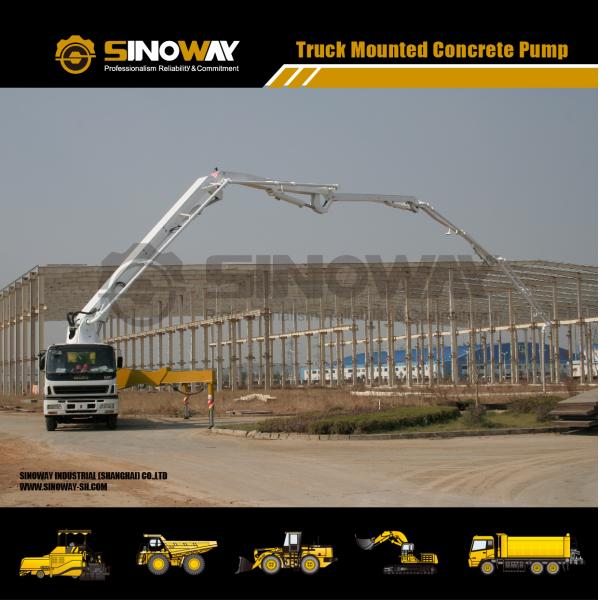

Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted
Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted
Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted
Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted
Specifications
Brand Name :
SINOWAY
Model Number :
SWTCP49I
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Truck mounted concrete pump
Engine1800rpm model :
ISUZU
Displacement :
14.256L
Curb weight :
39 ton
Max. distributing height :
48.6m
Max. distributing depth :
37.8m
Description

New Concrete Pump Truck ISUZU Chassis 49m Concrete Boom Truck Mounted

Pumping System 　
Output in theory 150m³/h
Max. pumping pressure 9.0MPa
Hopper capacity 550L
Feeding height 1450mm
Distributing valve S pipe valve
Rated work pressure 36Mpa
Pumping frequency 22min-1
Chassis And Whole Vehicle 　
Max. travelling speed 89km/h
Drive model 8×4
Engine model Isuzu engine
Rated power 287kw
Rated speed 1800rpm
Max. torque 1863N.m/1100rpm
Displacement 14.256L
Curb weight 39000kg
Wheel base 　
Axle1, Axle2 1850mm
Axle2, Axle3 4605mm
Axle3, Axle4 1310mm
Boom 　
Max. distributing radius 45.5m
Max. distributing height 48.6m
Max. distributing depth 37.8m
Height of boom when stretched 12800mm
Distance between front landing legs 9316mm
Distance between rear landing legs 10364mm
Distance between front and rear landing legs 10273mm
Delivery pipe diameter 125mm
Tail hose length 3000mm
Rotary angle of boom 365°
Boom section 5
Rotary angle of each boom section 90/180/180/225/212°
Boom length 9700/7910/7985/9460/9460mm
Main Components 　
Arm support pump Germany REXROTH
Oil pump Germany REXROTH
Balance valve Germany HAWE
Solenoid valve USA EATON
Hydraulic valve USA EATON
Sealing element USA PARKER
Connector Germany EMB
Hose Italy MANULI
Proportional multiway valve Germany HAWE
Wireless romote-control device Germany HBC
Dimension 　
Overall length 13720mm
Overall width 2495mm
Overall height 3990mm
Service Capacities 　
Fuel tank 400L
Water tank 600L
Hydraulic tank 600L

Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted
