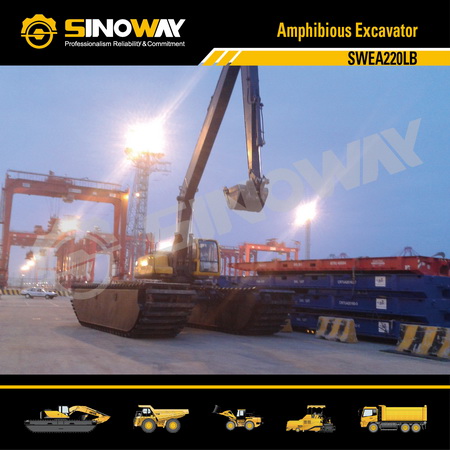

Amphibious Equipment 15.1m Long Reach Boom Shovel excavator Swamp Buggy
Amphibious Equipment 15.1m Long Reach Boom Shovel excavator Swamp Buggy
Specifications
Brand Name :
SINOWAY
Model Number :
SWEA220LB
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Engine Make :
Cummins/Doosan/Isuzu
Max. reach :
15.1 m
Bucket capacity :
0.5 m3
Number of chain :
3 strand chains
Track width :
1700mm
Operating weight :
40 ton
Description
Amphibious Equipment
Sinoway amphibious excavator is specially designed for swamp earthmoving applications, with a pair of steel pontoons with several compartments built in as undercarriage, swamp excavator is able to work in soft terrain with much lower ground pressure than normal hydraulic crawler excavators. With special grade material and workmanship, each model of Sinoway amphibious excavator is a trusted piece of equipment that built to last.
Proven in projects like oil and gas industry, pipeline, land reclamation, waterway deepening, delta works, etc., Sinoway team takes every single chance to enhance our swamp buggy excavators' reputation. Thus we have developed a complete line of swamp excavator from 0.2m3 bucket, up to 1.1m3, with optional for long reach boom amphibious excavator
Main Features
Equipped with Cummins Isuzu or Doosan engine with good performance and reliability.
The special undercarriage, fitted with square hollow steel shoes and floating seal rollers, gives exceptional mobility on wetland and
swamps. It boosts buoyancy and ruggedness too. The machine can be easily knocked down for quick transport to the next job site, as the
upperstructure is bolted to the undercarriage through the support beam, and hydraulic piping employs quick couplers.
The boom is with large cross-section, high-rigidity box-shaped structure, through optimizing procession, to reduce the negative intensity welding, to make the machine also suitable for heavy-load operations. The main hinged parts are all forgings structure, which prevent focusing the stress, at the same time, improving the strength of high strength wear-resistance are utilized at the boom-stick and the cylinder
mounting area, which provide a better lubrication and higher durability.
Each track driven by axial piston motor through spur wheel double reduction gear for counterrotation of the tracks.
Parking brake is spring-set/hydraulic-released disc type. Travel shockless relief valve built in travel motor absorbs shocks when stopping travel.
The operator cabin is supported with innovative silicone rubber shock absorber, which minimize the shock brought by the rough terrain and engine or hydraulic vibration and impact transmitted to the cabin, increase the stability of cabin and improve the operators’ sitting quality and operating comfort.
Engine　
ModelIsuzu/Cummins
TypeSix-cylinder,water-cooled
turbocharged,mechanical injection
Rated power106KW
Main Technical Specification
Operating weight40000Kg
Standard bucket capacity0.6m3
Slewing speed13rpm
Stick digging force50.0KN
Bucket digging force64.0KN
Main Features　
Tracked pontoon structure　
Big torque travelling device　
Big circular arc structure　
High capacity of fuel tank　
Main Applications　
River/Beach earth moving　
Swamp works　
Dredging applications　
Delta works　
Waterway deepening　
Hydraulic System　
Main pumpKAWASAKI
Main valveKAWASAKI
MotorKAWASAKI
Hydraulic flow rate2x210L/min
Hydraulic pressure32MPa
Travelling System　
Travelling speed0~4.88km/h
Grade ability58%
Ground pressure0.013MPa
No. of chains300%
Dimensions　
Overall length14500mm
Overall width6100mm
Overall height3950mm
Ground clearance1192mm
Length of pontoon10200mm
Width of pontoon1760mm
Height of pontoon1700mm
Optional　
Wide bucket　
Operating Scope　
Stick length5200mm
A: Max. cutting height12190mm
B: Max. dumping height9800mm
C: Max. digging depth11600mm
D: Max. reach15100mm
