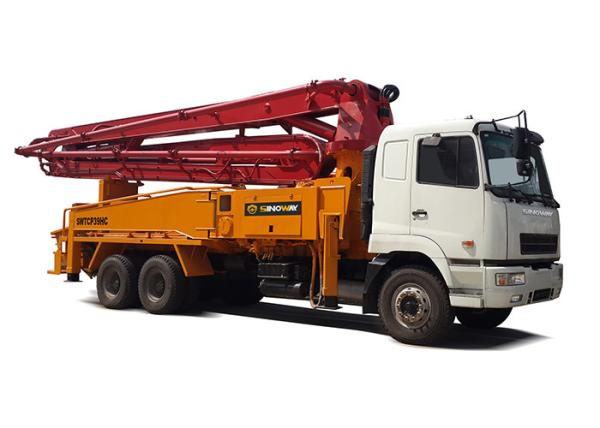

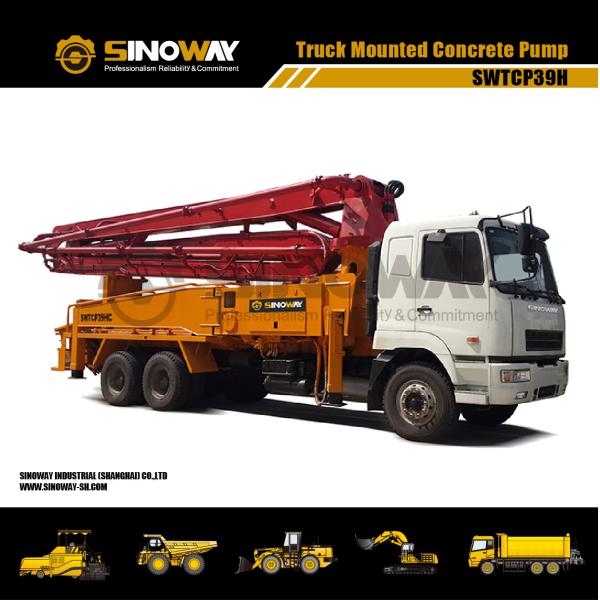

Heavy Duty Cement Mixer 39m Boom Concrete Pump Truck 9.84L Displacement
Heavy Duty Cement Mixer 39m Boom Concrete Pump Truck 9.84L Displacement
Specifications
Brand Name :
SINOWAY
Model Number :
SWTCP39H
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Engine model :
SW6D18.385
Rated power :
283kw/1900rpm
Max. torque :
1750N.m/1250rpm
Displacement :
9.84L
Output in theory :
150m³/h
Hopper capacity :
600L
Description

New Machine 39m Boom Concrete Pump Truck For Sale Made in China Good Quality

Pumping System 　
Output in theory 150m³/h
Max. pumping pressure 9.2MPa
Hopper capacity 600L
Feeding height 1350mm
Distributing valve S pipe valve
Rated work pressure 35Mpa
Pumping frequency 22min-1
Chassis And Whole Vehicle 　
Max. travelling speed 96km/h
Drive model 6×4
Engine model SW6D18.385
Rated power 283kw
Rated speed 1900rpm
Max. torque 1750N.m/1250rpm
Displacement 9.84L
Curb weight 29000kg
Wheel base 　
Axle1, Axle2 5220mm
Axle2, Axle3 1310mm
Boom 　
Max. distributing radius 34.57m
Max. distributing height 38.57m
Max. distributing depth 26.8m
Height of boom when stretched 9065mm
Distance between front landing legs 7390mm
Distance between rear landing legs 7763mm
Distance between front and rear landing legs 7976mm
Delivery pipe diameter 125mm
Tail hose length 4000mm
Rotary angle of boom 365°
Boom section 4
Rotary angle of each boom section 90/180/180/270°
Boom length 9150/8360/8480/8580mm
Main Components 　
Arm support pump Germany REXROTH
Oil pump Germany REXROTH
Balance valve Germany HAWE
Solenoid valve USA EATON
Hydraulic valve USA EATON
Sealing element USA PARKER
Connector Germany EMB
Hose Italy MANULI
Proportional multiway valve Germany HAWE
Wireless romote-control device Germany HBC
Dimension 　
Overall length 12440mm
Overall width 2495mm
Overall height 3930mm
Service Capacities 　
Fuel tank 400L
Water tank 600L
Hydraulic tank 600L

Heavy Duty Cement Mixer 39m Boom Concrete Pump Truck 9.84L Displacement
