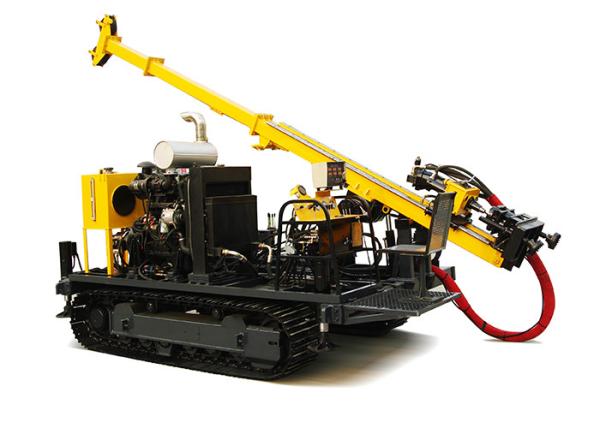

Hydraulic Drilling Rig Equipment Surface Exploration Core Drilling Rig
Hydraulic Drilling Rig Equipment Surface Exploration Core Drilling Rig
Specifications
Brand Name :
SINOWAY
Model Number :
SWCDR200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 units per year
Delivery Time :
45 days
Packaging Details :
Nude
Rated power :
74KW
Lifting capacity :
18KN (4046 lbf)
Hole depth :
350 m BQ drill rod
Max. Spindle torque :
334-930kN.m
Engine make :
Cummins
Warranty :
One year
Description

Hydraulic Drilling Rigs

SWCDR200 full hydraulic power head core drilling rig is a light full hydraulic core drilling rig specially designed for complex terrain and inconvenient traffic areas. It is mainly suitable for diamond rope core drilling technology. The main engine includes diesel engine power drill, hydraulic system, control system, main hoist, rope core hoist, power head, feed system and wellhead gripper. All functions of SWCDR200 fully hydraulic surface coring rig are hydraulic driven. It has the characteristics of strong disassembly, light weight of disassembly parts, simple assembly, convenient operation, precise control, convenient removal and high efficiency of coring operation.

Highlights

With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.

Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is setted in main winding,single rope to make deep inspection more accurate.

The standard centralized lubrication system, maintenance more convenient.

Several drilling rod configurations with different specification are available for efficient construction on different layers.

The detachable unit head drive key can provide easy maintenance and replacement.

Hole depth 　
BQ(Φ55.6mm equal to Φ2.19 inch )drill rod 350 m(1148feet)
NQ (Φ69.9mm equal to Φ2.75 inch) drill rod 230 m (754feet)
HQ (Φ88.9mm equal to Φ3.50 inch) drill rod 120 m (394feet)
Power 　
Model CUMMINS 4BTA3.9
Rated Power 74KW
Rated Speed 2200rpm
Drill head 　
Max. Spindle speed 0 to 900r/min
Max. Spindle torque 334-930 N·m (246-685 lbf·ft)
Feeding system (feed with hydraulic cylinder) 　
Feeding stroke 1700mm (67inch)
Lifting Capacity 50KN (11240 lbf)
Feeding Capacity 25KN (5620 lbf)
Main Hoist 　
Lifting Capacity (single-wire, bare drum) 18KN (4046 lbf)
Lifting Speed 84m/min (276feet/min)
Rope Capacity 30m(98.4feet)
Steel Wire dia. 12mm(0.47inch)
Wire line Winch 　
Lifting Capacity(single-wire,bare drum) 8.4KN (1888 lbf)
Lifting Speed 90-240m/min(295-787feet/min)
Rope Capacity 500m(1640feet)
Steel Wire dia. 6mm(0.24inch)
Mud Pump 　
Model BW-100A
Overall Dimension 3500×1500×1300 mm

Hydraulic Drilling Rig Equipment Surface Exploration Core Drilling Rig
