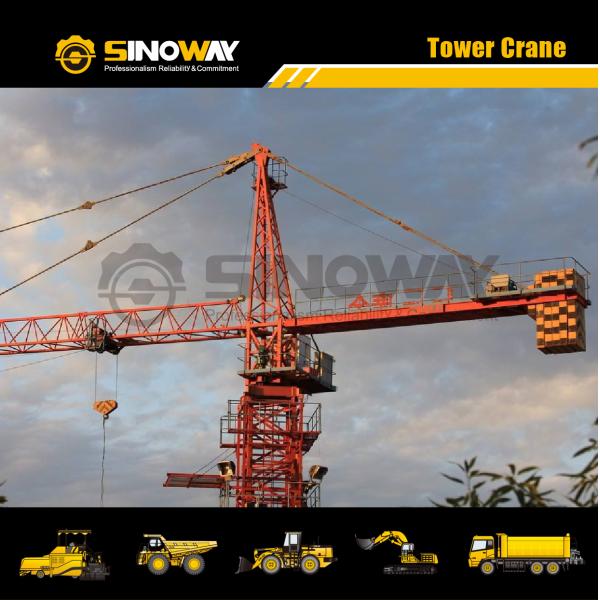

4ton Hydraulic Mobile Crane , 135m CE Hammer Head Tower Crane SWQTZ40
4ton Hydraulic Mobile Crane , 135m CE Hammer Head Tower Crane SWQTZ40
Specifications
Brand Name :
SINOWAY
Model Number :
SWQTZ40
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 units per year
Delivery Time :
60 days
Packaging Details :
Nude
Working radius :
45m
Free height :
30m
Max. height :
135m
Slewing speed :
0~0.6rpm
Slewing Mechanism Power :
3.7KW
Climbing Mechanism Power :
4KW
Warranty :
1 Year
Description

4ton 135m CE Hammer Head Tower Crane Manufacturer Hydraulic Mobile Crane

Hoisting Mechanism
Multiplying a = 2 or 4
Hoisting speed 10/35/70m/min (a=2); 5/17.5/35m/min (a=4)
Motor power 15/15/4kw
Trolley Mechanism
Max. luffing speed 40/20m/min
Motor power 2.4/1.5kw
Climbing Mechanism
Climbing speed 0.5m/min
Motor power 4kw
Rated working pressure 20MPa
Size of mast section 1.5 x 1.5 x 2.5m
Slewing Mechanism
Slewing speed 0-0.6rpm
Motor power 3.7kw
Ballast
Ballast weight 6645kg (38m jib)
Ballast weight 7860kg (45m jib)
Ballast weight 8100kg (47m jib)
Main Technical Specification
Max. working radius 45m
Free height 30m
Max. height 135m
Max. lifting capacity 4000kg
Tip lifting capacity 936kg

Rated Lifting Load Capacity

m 2-12.2 15 20 25 30 35 40 43 45 47
a=4 (T) 4 3.19 2.28 1.69 1.38 1.13 0.94 0.85 0.79 0.75
a=2 (T) 2 2 2 1.74 1.43 1.18 0.99 0.8 0.84 0.8

m 2-13.8 15 20 25 30 35 40 43 45
a=4 (T) 4 3.72 2.68 2 1.61 1.32 1.11 1.01 0.95
a=2 (T) 2 2 2 2 1.66 1.37 1.16 1.06 1

m 2-13.8 15 20 25 30 33 35 38
a=4 (T) 4 3.72 2.68 2 1.61 1.43 1.32 1.19
a=2 (T) 2 2 2 2 1.66 1.48 1.37 1.24
