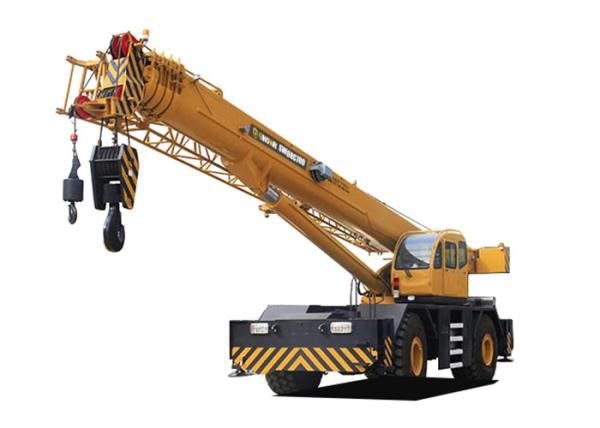

4X4 Hydraulic Mobile Crane 70 Ton 4 By 4 For Construction And Engineering
4X4 Hydraulic Mobile Crane 70 Ton 4 By 4 For Construction And Engineering
Specifications
Brand Name :
SINOWAY
Model Number :
SWORC700
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 units per year
Delivery Time :
60 days
Packaging Details :
Nude
Product name :
Off road crane
Engine Make :
Cummins
Engine power :
194kw
Dead weight :
49000kg
Lifting capacity :
70 ton
Condition :
Brand new
Description

Rough Terrain Compact Crane
Compact cranes with a single cab for both driving and lifting operation. This compact model hasmaneuverability, capable of accessing to narrow spaces with all wheel steering and can be driven onrough or uneven terrain with all wheel driving.

SINOWAY SWORC700 off road crane adopts with two-axle loading chassis and has two types of driving model, four types of turning models and back-and-forward driving function. The product has four sections of quadrangular great circle main doom, H-type outrigger as well as combined self-removal and installation counterweight. It has three types of operation models such as operation with the support of outrigger, operation with the support of tire and hanging when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.

Main Features

Equipped with powerful Cummins engine, 35.5m main boom, 16m auxiliary jib, under the same boundary conditions, the comprehensive lifting performance is the strongest.

Maneuvering and Flexible, Quick and Efficient

The max speed reaches 35km/h and the max gradeability is 65% and the min. turning radius is 6.1m. All these three factors make it flexible.

The product is equipped with great power system, specialized cross-country pattern tire and skid-resisting differential locking gear. All these three factors make it drive over all kinds of road easily.

Safe and Reliable,Easy to Handle

The SWORC700 rough terrain crane is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.

The SWORC700 is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 4,000km and 10,000 times hanging. Both ensure its reliability.

Comfortable to Handle, Convenient to Operate

This 4x4 off road crane is equipped with full hydro-steering control system and automatic-manual gear box, which make it easy to handle. And it is equipped with turnover handling room, which presents a border view and makes it more comfortable to operate.

The product is equipped with humanized climb ladder, maintenance access and control layout. And it is equipped with professional man-machine engineering simulation analysis; exquisite man-machine interface and stand-alone fault diagnose function. It is comfortable to handle and convenient to operate.

Engine 　
Engine make CUMMINS
Type Six-cylinder,water-cooled,turbocharged,electronic injection
Rated power 194KW
Rated speed 2200rpm
Lifting Specification 　
Max. rated lifting capacity 70000kg
Min. raged working radius 2.5m
Slewing radius at turntable tail (at counterweight) 4100mm
Max. load moment 　
Base boom max. load moment 2033KN•m
Fully extended boom load moment 1223KN•m
Boom Length 　
Base boom 11320mm
Fully extended boom 43200mm
Fully extended boom+jib 60700mm
Lifting height 　
Base boom 11300mm
Fully extended boom 43900mm
Fully extended boom+jib 58100mm
Working Speed 　
Boom raising time 80s
Boom extending time 120s
Max. slewing speed 2.0 rpm
Outrigger beam extending/retracting time 40/30s
Outrigger jack extending/retracing time 55/40s
Hoist speed 　
Main winch max. speed 130m/min
Aux. winch max. speed 130m/min
Outrigger span 　
Longitudinal 7300mm
Lateral(fully/half extended) 7200/5600mm
Traveling Specification 　
Max. traveling speed 25km/h
Drive type 4×2/4×4
Grade ability 65%
Min. turning radius 6.1m(4×4)/10.5(4×2)
Noise at seated position 80dB(A)
Braking distance (at 24 km/h) 9m
Tyre 29.5R25
Mass Specification 　
Operating weight 49000kg
Axle load 1st 25500kg
Axle load 2nd 23500kg
Dimensions 　
Overall size 13135×3180×3750mm
Wheel base 4000mm
Tread 2400mm
Overhang(F/R) 1925/2190mm
Extension(F/R) 5020/0mm
Min. ground clearance 467mm
Approaching/departure angle 20°/17.5°
Jib offset angle 0°, 20°, 40°
Braking system 　
Service brake Double-circuit full-hydraulic disc brake
Parking brake Spring-loaded brake,hydraulic-released independent disc brake
