Hydraulic Truck Crane
Sinoway supply the truck crane with the lifting capacity ranging from 20ton to 130ton and provide complete technical support for customers. Truck crane is a crane mounted on a truck carrier which can provide better mobility. Truck cranes are able to travel on highways, eliminating the need for special equipment to transport the crane unless weight or other size constrictions are in place such as local laws.

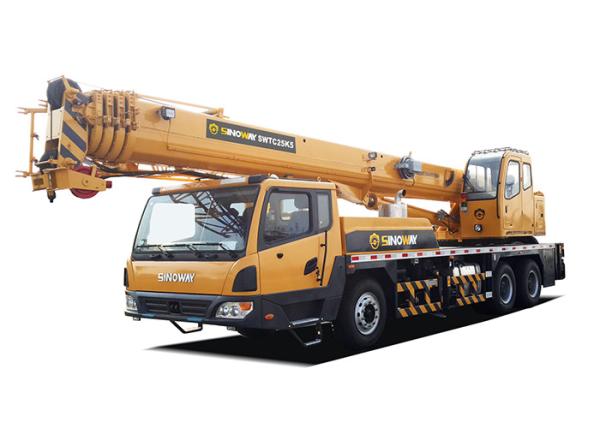

SWTC25K5 truck crane has five-section boom of high strength steel structure and optimized U-shaped cross section with max.lifting capacity of 25t, full-extended boom length of 33.5m, max.lifting height including jib of 42m, reduce weight and improve safety significantly.
Jib mounting angles are 0°, 15°, and 30°, which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.
Features

Equipped with powerful Cummins engine.
High-strength U-shaped cross section boom.
Luffing telescopic operation controlled independently by advanced post-compensate hydraulic technology.
Ultra-long outrigger span ensures increasing stability.
Load sensitive variable plunger pump is applied to provide real time adjustment of pump displacement, high-accuracy flow control, strong lifting capacity and good micro-mobility. Unique steering system is applied to ensure stable braking operation.
Double-axle drive is applied to provide good mobility. Trafficability and comfortableness under the complex road condition is improved with reliable traveling performance;
Equipped with the comprehensive intelligent protection system is used with accuracy within 3%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.
Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.
Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.
Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.
