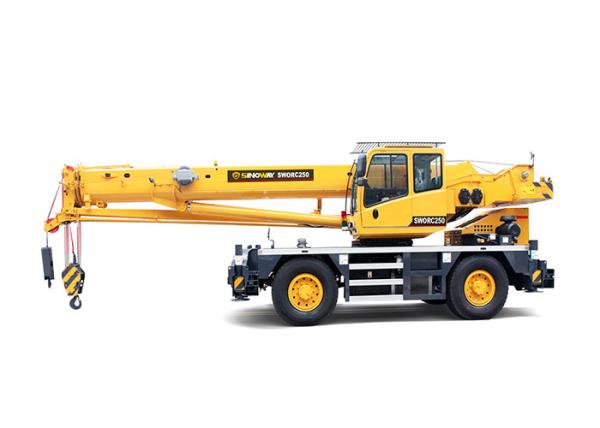

Heavy Duty Rough Terrain Crane 25 Ton , 4X4 Off Road Crane 14.00R25 Tire Size
Heavy Duty Rough Terrain Crane 25 Ton , 4X4 Off Road Crane 14.00R25 Tire Size
Specifications
Brand Name :
SINOWAY
Model Number :
SWORC250
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 units per year
Delivery Time :
60 days
Packaging Details :
Nude
Condition :
Brand New
Warranty :
One year
Shipping terms :
FOB CFR CIF CIP DAF
Rated power :
142kw
Max. Travel speed :
50km/h
Tire size :
14.00R25
Description

Mobile Hydraulic Crane
Rough terrain crane also call off-road crane is a kind of hydraulic crane mounted on an undercarriage with four rubber tires. It is designed for pick and carry operations and work on off-road and rough application surface with better mobility. Sinoway can offer rough terrain crane which payload capacity are from 25 ton to 150 ton to meet different requirement.

SINOWAY SWORC250 off road crane adopts two-axles heavy-duty special chassis, which has two driving modes, four steering modes and forward and reverse driving functions; four dodecagonal main arms, abdominal auxiliary arms, H-leg, fixed balance weight; three operating modes of leg support, tire support and crane travel, which are widely used in oil fields, mines, road and bridge construction, warehouse base and other construction sites.

Product highlights:
Strong lifting capacity and wide range of work
The 31m main arm and 13m auxiliary arm are the longest in the same tonnage products and have the highest comprehensive lifting performance.
Flexible, fast and efficient
The maximum speed is 50km/h, the maximum climbing ability is 55%, and the minimum turning radius is only 5m, which is flexible and flexible.
Self-positioning and self-locking abdominal assistant arm, without auxiliary operators and equipment, can be retrieved and placed quickly and efficiently.
Safety, reliability and ease of use
Lifting protection control, such as overload, roll-over and overload, as well as the industry's unique rear axle wheel auto-alignment control and driving safety auto-protection technology, greatly enhance the product's active safety performance; Industry top configuration, professional matching optimization and systematic evaluation test, 11,000 km driving, 10,000 lifting tests, effectively ensure the reliability of products.
4Economical and environmental protection, cost saving
Optimizing the matching power transmission system and equipped with a hydraulic torque converter with locking function, the fuel consumption of high-speed driving can be reduced by more than 20%. Parallel hydraulic system controlled by one-way steady flow has small flow loss, and variable amplitude system with gravity drop does not need additional power and saves fuel consumption.
Comfortable operation and convenient use
Full hydraulic steering and braking, hand-in-one gearbox, easy to operate; leaf spring + hydraulic cylinder composite suspension, self-identification and staged control of rotary cushioning technology, stable operation, comfortable operation;
Humanized climbing, maintenance channels and manipulators layout, professional ergonomics simulation analysis, exquisite human-computer interaction interface, configuration of single machine fault diagnosis function, easy to use.
Engine 　
Make CUMMINS
Rated power 142KW
Rated speed 2200rpm
Emission Off-road, Eu stage IIIA
Drive type 4×2, 4×4
Dimension & Weight 　
Overall length 11703mm
Overall width 2700mm
Overall height 3385mm
Wheel base 3700mm
Tread (F/R) 2200m/2200mm
Overhang (F/R) 1601mm/1867mm
Extension (F/R) 4484mm/51mm
Total mass 26300kg
Front axle load 12696mm
Rear axle load 13604mm
Main Technical Specification 　
Max. Rated lifting capacity 25t
Min. Rated working radius 3m
Slewing radius at turntable tail 3698mm
Max. Load moment 　
Base boom 989.8kN.m
Fully-extended boom 588kN.m
Outrigger span 　
Longitudinal 6.3m
Lateral(fully/half extended) 6.3/4.8m
Lifting height 　
Base boom 9.1m
Fully-extended boom 30.8m
Fully-extended boom+jib 37.7m
Boom length 　
Base boom 9.7m
Fully-extended boom 31m
Fully-extended boom+jib 39.15m
Jib offset angle 0°, 15°, 30°
Performance Specification 　
Max. Travel speed 50km/h
Min. Turning radius 5m(4 wheels)/8m(2 wheels)
Min. Ground clearance 345mm
Approach angle 22°
Departure angle 19°
Brake distance(24km/h) 9m
Max. Grade ability 55%
Tire 14.00R25
Number of tires 4
Working Speed 　
Time for boom raising 55s
Time for boom extending fully 70s
Max. Slewing speed 2.0r/min
Outrigger extending/retracting time 　
Outrigger beam(extending/retracting) 35s/30s
Outrigger jack(extending/retracting) 45s/35s
Hoisting speed(at 4th layer no load) 　
Main winch 130m/min
Auxiliary winch 130m/min

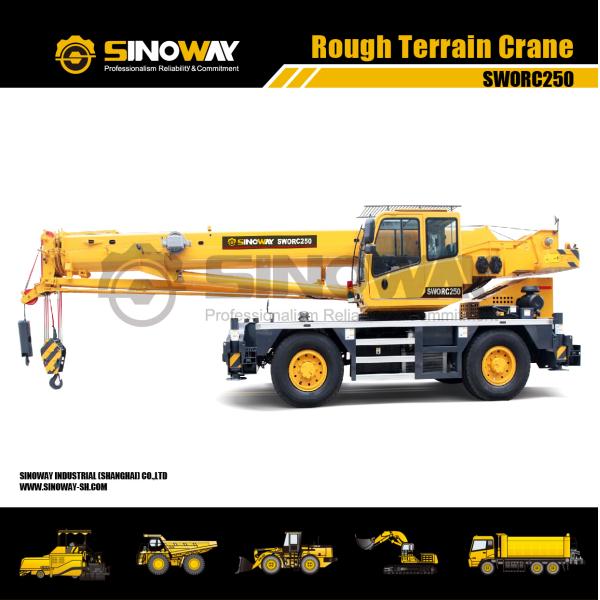

Heavy Duty Rough Terrain Crane 25 Ton , 4X4 Off Road Crane 14.00R25 Tire Size
