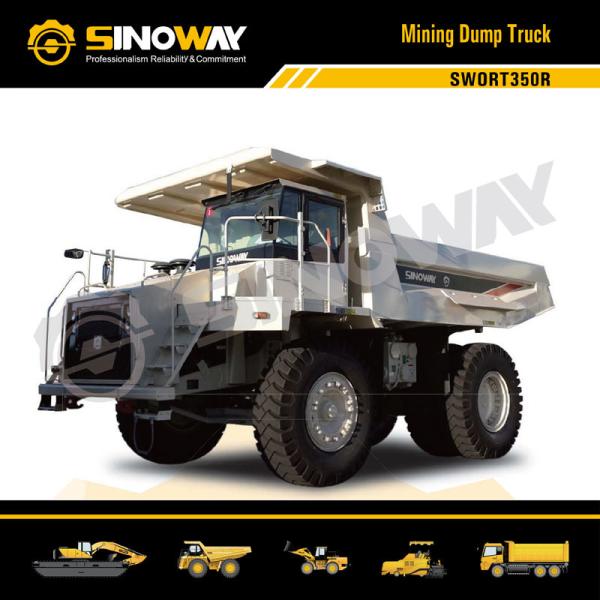

Open Pit Mining Dump Truck , 32 Ton Off Road Dump Truck 4x2 Mining Haul Truck
Open Pit Mining Dump Truck , 32 Ton Off Road Dump Truck 4x2 Mining Haul Truck
Specifications
Brand Name :
SINOWAY
Model Number :
SWORT350R
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 units per year
Delivery Time :
60 days
Packaging Details :
Nude
Engine make :
Cummins
Rated power :
330hp
Max. travelling speed :
56km/h
Body raise time :
≤14.0
Body lower time :
≤9.0
Tire size :
21.00-35(36PR)
Description

Mining Dump Truck

Off-highway trucks, including dump trucks, are specially designed for this purpose and are built towithstand punishing environments to get the job done. In this category, you’ll find smaller trucks madefor lower capacity jobs as well as massive trucks that are dozens of feet tall and support maximumpayload capacities in the hundreds of tons.

Sinoway off-road mining trucks have been specially designed with a rugged and robust frame to provide superior levels of productivity in the roughest terrain. The dump trucks have been equipped with the latest technologies to offer not only high performance in the most arduous application, but also a safe and comfortable environment for the operator. We are proud that Sinoway mining trucks are now contributing towards many mine pits.

Main Advantages

Reliable and powerful Cummins engine with large power storage, reliable performance.

ALLISON, automatic electronic control,integral torque converter and planetary gearing,6 forward & 1 reverse.

Independent hydrostatic steering with closed-centre steering valve accumulator and pressure compensating piston pump.

Suspension system is with kingpin strut-type independent front wheel suspension using self-contained, variable rate,nitrogen/oil cylinders. variable rate nitrogen/oil cylinders with A-frame linkage and lateral stabilizer for rear.

cab is with all steel construction, adjustable seat, fully thermal and noise insulated, instrumental panel with gauges, warning and indicator lamps, automotive safety glass all round.

Engine
Model Cummins
Type 6 cylinder,water-cooled,turbocharged,mechanical injection
Rated power 245KW
Rated speed 2100rpm
Main technical specification
N.V.W 23000Kg
Payload capacity 32000Kg
G.V.W 55000Kg
Max. travelling speed 56km/h
Overall size(L×W×H) 7950×3400×4190mm
Wheel base 3605mm
Tire size 21.00-35(36PR)
Dump Body
Struck (SAE) 16.1m³
Heaped 2:1 (SAE) 21.1 m³
