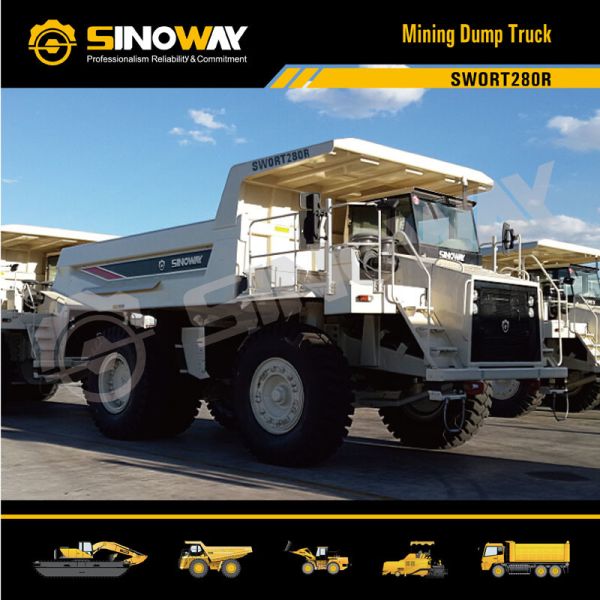

Off Road Mining Dump Truck , 28 Ton Rigid Dump Truck For Mines And Quarry

Mining Dump Truck

Off-highway trucks, including dump trucks, are specially designed for this purpose and are built towithstand punishing environments to get the job done. In this category, you’ll find smaller trucks madefor lower capacity jobs as well as massive trucks that are dozens of feet tall and support maximumpayload capacities in the hundreds of tons.

Sinoway off-road mining trucks have been specially designed with a rugged and robust frame to provide superior levels of productivity in the roughest terrain. The dump trucks have been equipped with the latest technologies to offer not only high performance in the most arduous application, but also a safe and comfortable environment for the operator. We are proud that Sinoway mining trucks are now contributing towards many mine pits.

Main Advantages

Heavy duty Cummins engine with rich power.

Twin Countershaft main gearbox with rear mounted auxiliary planetary gearbox,all the gears is axle bush engage shift and air pressure for the auxiliary gearbox.

Two body hoists are mounted outside the frame rails. Hoists are two stage with power down in the second stage. Hydraulic system is powered
by the gear pump.

Service brake adopt full hydraulic control, transmission mounted pressure compensating piston pump providing hydraulic pressure, independent brake on all wheels.

Longitudinal”v” type floor plate with integral transverse box-section stiffeners the body rest on resilient impact absorption pads. Body wear surfaces are high strength and high hardness abrasion resistant steel.

Full hydraulic power steering by two double-acting steering cylinders. Pressure is supplied to a load sensing and priority steering valves by an engine driven gear pump. The system provides uniform steering regardless of engine speed.
