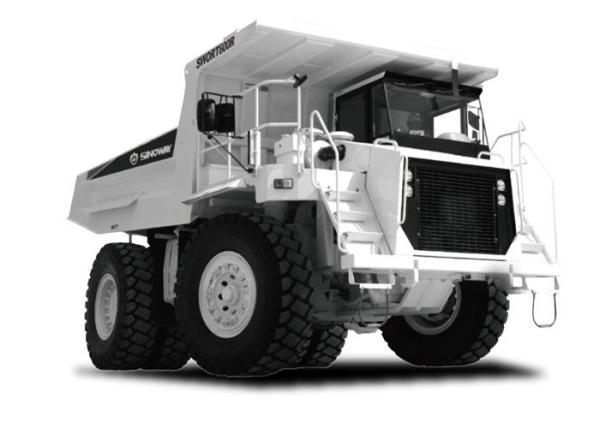

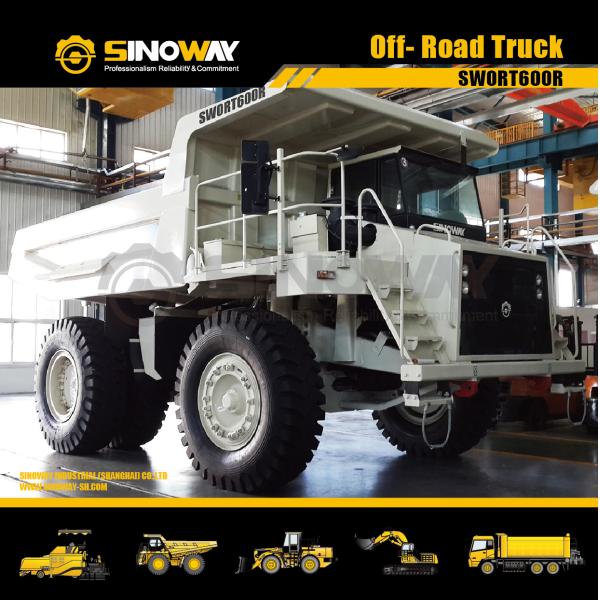

55 Ton Heavy Duty Mining Dump Truck 4X2 Off Road Rigid Frame For Construction
55 Ton Heavy Duty Mining Dump Truck 4X2 Off Road Rigid Frame For Construction
Specifications
Brand Name :
SINOWAY
Model Number :
SWORT600R
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
300 units per year
Delivery Time :
90 days
Packaging Details :
Nude
Engine make :
Cummins
Rated power :
655hp
Transmission :
Alission
Warranty :
One year
Condition :
Brand new
Shipment :
By Ro Ro vessel
Description

Mining Dump Truck

Mining Rock truck is specifically used on a mine or quarrying site. They are not driven on publicroads, except for extreme instances.

The toughest mining conditions require the top mining dump trucks for mineral haulage. The range of Sinoway rigid mining dump trucks with payload ranging from 20 ton to 100 ton, meets the demand requirements of most mining, quarrying, and heavy construction applications.
Sinoway off-road mining trucks have been specially designed with a rugged and robust frame to provide superior levels of productivity in the roughest terrain. The dump trucks have been equipped with the latest technologies to offer not only high performance in the most arduous application, but also a safe and comfortable environment for the operator. We are proud that Sinoway mining trucks are now contributing towards many mine pits.

Main Advantages

Heavy duty Cummins engine with rich power.

Independent hydrostatic steering with closed-centre steering valve accumulator and pressure compensating piston pump.

Self contained variable rate, nitrogen/oil cylinder, independent front and rear suspension

Hoist system is dual two stage double acting cylinder mounted between the frame rails.

Full box section frame with integral front bumper and closed loop crossmember, crossmember and rear torque tube and tail seat connections with frame rails adopting high strengh alloy castings.

Heavy duty axle with single reduction spiral bevel gear differential, full floating axle shafts, planetary reduction at each wheel.

cab is with all steel construction, adjustable seat, fully thermal and noise insulated, instrumental panel with gauges, warning and indicator lamps, automotive safety glass all round.

Engine
Model Cummins
Type 6 cylinder,water-cooled,turbocharged electronic injection
Rated power 485KW
Rated speed 2100rpm
Main technical specification
N.V.W 41250Kg
Payload capacity 54430Kg
G.V.W 95680Kg
Max. travelling speed 57.5km/h
Overall size(L×W×H) 9130×4948×4440mm
Wheel base 4170mm
Min.turning diameter 21.2m
Tire size 21.00-35(36PR)
Dump Body
Struck (SAE) 26m³
Heaped 2:1 (SAE) 35 m³
