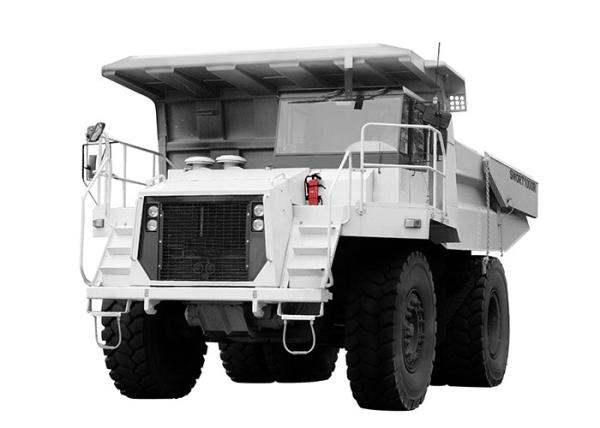

100 Ton Mining Rock Trucks 4X2 Off Highway For Open Pit And Quarries
100 Ton Mining Rock Trucks 4X2 Off Highway For Open Pit And Quarries
Specifications
Brand Name :
SINOWAY
Model Number :
SWORT1000R
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
300 units per year
Delivery Time :
90 days
Packaging Details :
Nude
Engine make :
Cummins
Rated power :
655hp
Transmission :
Alission
Warranty :
One year
Condition :
Brand new
Shipment :
By Ro Ro vessel
Description

Mining Dump Truck

Mining Rock truck is specifically used on a mine or quarrying site. They are not driven on publicroads, except for extreme instances.

The toughest mining conditions require the top mining dump trucks for mineral haulage. The range of Sinoway rigid mining dump trucks with payload ranging from 20 ton to 100 ton, meets the demand requirements of most mining, quarrying, and heavy construction applications.
Sinoway off-road mining trucks have been specially designed with a rugged and robust frame to provide superior levels of productivity in the roughest terrain. The dump trucks have been equipped with the latest technologies to offer not only high performance in the most arduous application, but also a safe and comfortable environment for the operator. We are proud that Sinoway mining trucks are now contributing towards many mine pits.

Main Advantages

Tier3 stage high power electronic control Cummins engine is adopted, which has stronger power.
Oil/air suspension cylinder with variable damping characteristics can absorb the impact and vibration of pavement very well.
Full floating heavy-duty rear axle is adopted to ensure that the half axle is only subjected to torsion, which significantly improves the service life of the rear axle.
Parallel box girder frame with variable cross-section has excellent bending, torsion and impact resistance.
Allision Electronic automatic transmission with power and economy shifting mode is adopted to improve fuel economy.

cab is designed with car-like instrument platform and internal supercharging, which meets the requirements of ROPS/FOPS.

Engine
Model Cummins QSM11
Type 6 cylinder,water-cooled,turbocharged electronic injection
Rated power 783KW
Rated speed 2100rpm
Main technical specification
N.V.W 68620kg
Payload capacity 91000kg
G.V.W 160000kg
Max. travelling speed 47.6km/h
Overall size(L×W×H) 10820×5150×4575mm
Wheel base 4570mm
Min.turning diameter 21.2m
Tire size 27.00R49 Radial
Dump Body
Struck (SAE) 41.6m³
Heaped 2:1 (SAE) 57 m³


100 Ton Mining Rock Trucks 4X2 Off Highway For Open Pit And Quarries
