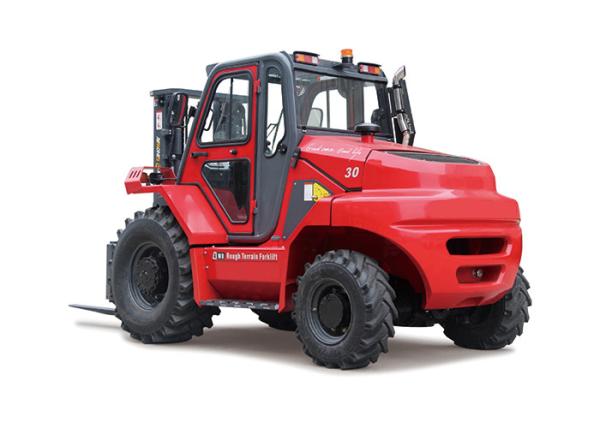

3 and 3.5 Ton Diesel Forklift With Four Wheel Drive
3 and 3.5 Ton Diesel Forklift With Four Wheel Drive
Specifications
Brand Name :
SINOWAY
Model Number :
SWRTF35H
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Product Name :
All Terrain Forklifts
Engine model :
Cummins QSF2.8T3NA60
Rated power :
55kw/2500rpm
Max. Torque :
300N.m/1600rpm
Emission :
EU IIIB/EPA Tier 4
Rated capacity :
3500kg
Description

Off-Road 3 and 3.5 Ton Diesel Forklift With Four Wheel Drive For Sale Cheap Price Hydraulic Material Handler

Engine
Engine model Cummins QSF2.8T3NA60
Rated output 55kw/2500rpm
Max. Torque 300N.m/1600rpm
Number of cylinders 4
Bore x stroke 94 x 100mm
Displacement 2.8L
Emission EU IIIB/EPA Tier 4
Fuel tank capacity 80L
General
Power type Diesel
Rated capacity 3500kg
Load center 500mm
Service weight 5900kg
Dimensions
Fork size (L x W x T) 1220 x 125 x 50mm
Mast tilt angle (F/R) 10/12°
Lift height 4000mm
Mast lowered height 2810mm
Free lift height 90mm
Mast extended height 5245mm
Length to face of fork 3252mm
Overall width 1835mm
Overhead guard height 2250mm
Front overhang 705mm
Rear overhang 607mm
Turning radius (outside) 4380mm
Ground clearance (bottom of mast) 135mm
Min. intersecting aisle 3040mm
Min. right angle stacking aisle width 6350mm
Main Technical Specification
Transmission type Hydraulic
Transmission stage (F/R) 3/2
Drive type 2WD/4WD
Travelling speed (full/empty) 24/25km/h
Lifting speed (full/empty) 480/500mm/s
Lower speed (full/empty) 380/400mm/s
Max. Gradeability (full load) 30%
Front tire 405/70-20-14PR
Rear tire 10.0/75-15.3-12PR
Wheelbase 1990mm
Tread (F/R) 1410/1484mm
Battery voltage 12 V
Battery capacity 120Ah

3 and 3.5 Ton Diesel Forklift With Four Wheel Drive
