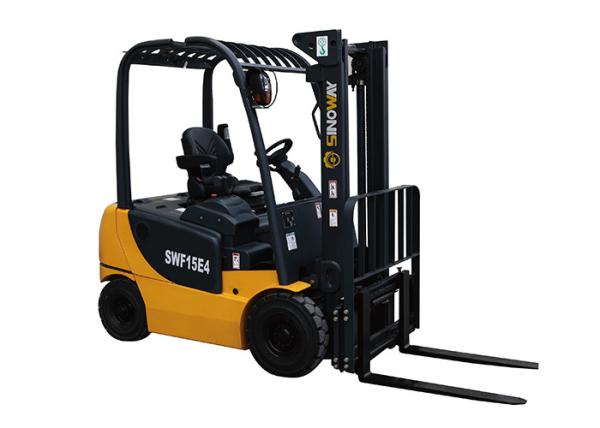

Small Electric Forklift SINOWAY 1.5t Lead Acid Battery 13kw Drive Output
Small Electric Forklift SINOWAY 1.5t Lead Acid Battery 13kw Drive Output
Specifications
Brand Name :
SINOWAY
Model Number :
SWF15E4
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Product Name :
Electric Forklift
Drive output (60 min. rating) :
13KW
Hydraulic output (15 min. rating) :
15KW
Battery Type :
Lead Acid
Voltage :
48V
Max. capacity (6 hour rating) :
480Ah
Description

SINOWAY 1.5t Lead Acid Battery Small Electric Forklift Hydraulic Material Handler

Controllers
Drive/hydraulic (make, type) SME, AC
Motors
Drive output (60 min. rating) 13kw
Hydraulic output (15 min. rating) 15kw
Battery
Type Lead Acid
Voltage 48V
Max. capacity (6 hour rating) 480Ah
Weight, minimum / maximum 760kg / 920kg
Base capacity (rated load center) 1500kg
Load center 500mm
Service weight (unloaded) 3050kg
Front axle load (loaded / unloaded) 3992kg / 558kg
Rear axle load (loaded / unloaded) 1522kg / 1528kg
Wheels (front / rear) 2 / 2
Wheelbase 1340mm
Tire size (front / rear) 18x7-8 / 16x6-8
Tread width 925mm / 880mm
Max. Fork height (with std. 2-stage mast) 3000mm
Free lift (with std. 2-stage mast) 135mm
Height, upright lowered (with std. 2-stage mast) 2045mm
Height, upright extended (with std. 2-stage mast) 4090mm
Mast tilt, fwd/back (with std. 2-stage mast) 6° / 7°
Carriage width 1040mm
Fork spread (minimum / maximum 222mm / 1010mm
Fork dimensions (T x W x L) 35 x 100 x 920mm
Length to fork face (with std. 2-stage mast) 2000mm
Overall width 1110mm
Overhead guard height 2025mm
Turning radius (minimum outside) 1860mm
Fork overhang (with std. 2-stage mast) 385mm
Right angle stack (add load length and clearance) 3445mm
Ground clearance (minimum loaded / center of wheelbase 60mm / 105mm
Battery compartment (length/width/height) 565 x 830 x 675mm
Travel speed (loaded / unloaded) 15 / 15km/h
Lift speed (loaded / unloaded) 0.35 / 0.5m/s
Lower speed (loaded / unloaded) 0.5 / 0.4m/s
Max. Draw-bar pull (5 min. rating/60 min. rating) 1275 / 316kg
Max. Gradeability (5 min. rating) 20%

Small Electric Forklift SINOWAY 1.5t Lead Acid Battery 13kw Drive Output
