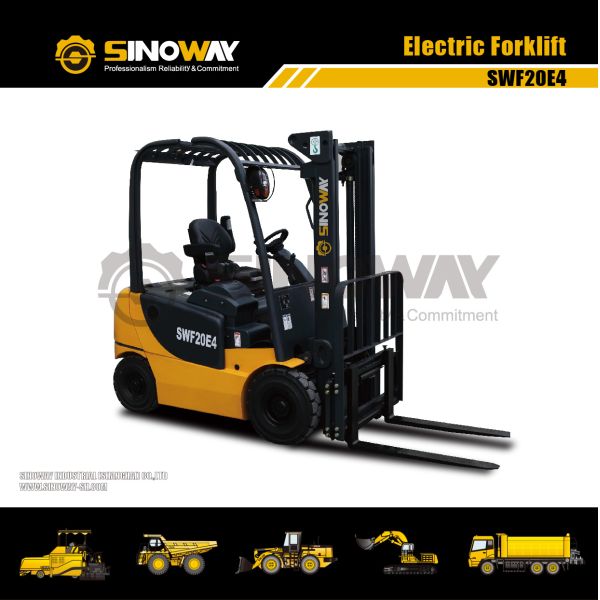

Electric Forklift Hydraulic Material Handler 2.0 Ton 2000kg Base Capacity
Electric Forklift Hydraulic Material Handler 2.0 Ton 2000kg Base Capacity
Specifications
Brand Name :
SINOWAY
Model Number :
SWF20E4
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Product Name :
Electric Forklift
Drive/hydraulic (make, type) :
SME, AC
Weight, minimum / maximum :
900kg / 1200kg
Base capacity (rated load center) :
2000kg
Voltage :
48V
Max. capacity (6 hour rating) :
560Ah
Description

2.0 Ton Electric Forklift Brand New Battery Forklift Hydraulic Material Handler

Controllers
Drive/hydraulic (make, type) SME, AC
Motors
Drive output (60 min. rating) 8kw
Hydraulic output (15 min. rating) 15kw
Battery
Type Lead Acid
Voltage 48V
Max. capacity (6 hour rating) 560Ah
Weight, minimum / maximum 900kg / 1200kg
Base capacity (rated load center) 2000kg
Load center 500mm
Service weight (unloaded) 3500kg
Front axle load (loaded / unloaded) 4841kg / 659kg
Rear axle load (loaded / unloaded) 1660kg / 1840kg
Wheels (front / rear) 2 / 2
Wheelbase 1510mm
Tire size (front / rear) 23x9-10-16PR / 18x7-8-14PR
Tread width 970mm / 880mm
Max. Fork height (with std. 2-stage mast) 3000mm
Free lift (with std. 2-stage mast) 140mm
Height, upright lowered (with std. 2-stage mast) 2055mm
Height, upright extended (with std. 2-stage mast) 4115mm
Mast tilt, fwd/back (with std. 2-stage mast) 6° / 7°
Carriage width 1040mm
Fork spread (minimum / maximum 222mm / 1010mm
Fork dimensions (T x W x L) 40 x 100 x 1070mm
Length to fork face (with std. 2-stage mast) 2220mm
Overall width 1200mm
Overhead guard height 2050mm
Turning radius (minimum outside) 2050mm
Fork overhang (with std. 2-stage mast) 445mm
Right angle stack (add load length and clearance) 3655mm
Ground clearance (minimum loaded / center of wheelbase 95mm / 115mm
Battery compartment (length/width/height) 655 x 880 x 680mm
Travel speed (loaded / unloaded) 15 / 15km/h
Lift speed (loaded / unloaded) 0.35 / 0.5m/s
Lower speed (loaded / unloaded) 0.52 / 0.48m/s
Max. Draw-bar pull (5 min. rating/60 min. rating) 1150 / 204kg
Max. Gradeability (5 min. rating) 13%

Electric Forklift Hydraulic Material Handler 2.0 Ton 2000kg Base Capacity
