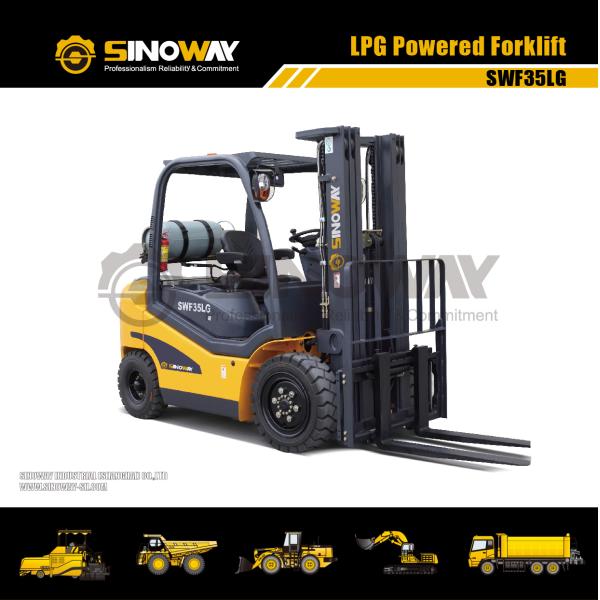

LPG Forklift 3.5 Ton 37.4kw / 2300rpm Rated Power With NISSAN Engine
LPG Forklift 3.5 Ton 37.4kw / 2300rpm Rated Power With NISSAN Engine
Specifications
Brand Name :
SINOWAY
Model Number :
SWF35LG
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Product Name :
LPG Forklift
Engine model :
NISSAN
Displacement :
2.488L
Service weight (unloaded) :
4750
Front axle load (loaded / unloaded) :
7275kg/1700kg
Rear axle load (loaded / unloaded) :
975kg/3050kg
Description

LPG/Gas Forklift 3.5 ton With NISSAN Engine Hydraulic Material Handler

Engine model NISSAN
Rated power 37.4kw / 2300rpm
Max. Torque 176.5N.m/1600rpm
Displacement 2.488L
Base capacity (rated load center) 3500kg
Load center 500mm
Service weight (unloaded) 4750kg
Front axle load (loaded / unloaded) 7275kg/1700kg
Rear axle load (loaded / unloaded) 975kg/3050kg
Wheels (front /rear) 2/2
Wheelbase 1700mm
Tire size (front / rear) 28x9-15-12PR/6.50-10-10PR
Tread width 1000mm/980mm
Max. fork height (with std 2-stage mast) 3000mm
Free lift (with std 2-stage mast) 130mm
Height, upright lowered (with std 2-stage mast) 2120mm
Height, upright extended (with std 2-stage mast) 4278mm
Mast tilt, fwd/back (with std 2-stage mast) 6°/10°
Carriage width 1100mm
Fork spread (minimum/maximum) 272mm/1072mm
Fork dimensions (T x W x L) 50 x 122 x 1070mm
Length to fork face (with std 2-stage mast) 2730mm
Overall width 1240mm
Overhead guard height 2170mm
Turning radius (minimum outside) 2450mm
Fork overhang (with std 2-stage mast) 480mm
Right angle stack (add load length and clearance) 4195mm
Ground clearance (minimum loaded / center of wheelbase 120mm / 135mm
Travel speed (loaded / unloaded) 19/20km/h
Lift speed (loaded / unloaded) 0.42/0.52m/s
Lower speed (loaded / unloaded) 0.6/0.4m/s
Max. Draw-bar pull (loaded) 2105kg
Max. Gradeability (loaded / unloaded) 18%/20%
Service brake Foot / Hydraulic
Parking brake Hand / Mechanical
