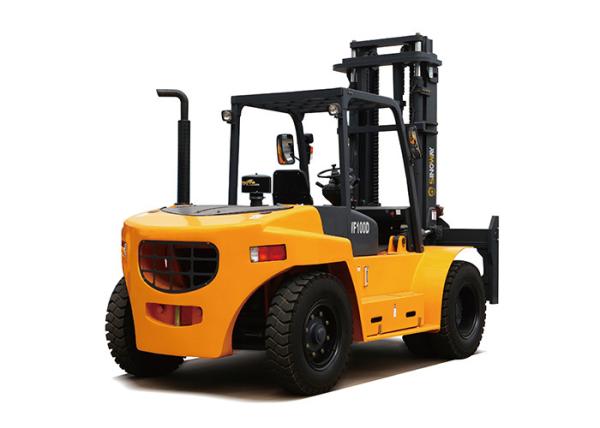

Heavy Diesel Forklift 10 Tons Pneumatic Tyre 82.4kw / 2000rpm Rated Power
Heavy Diesel Forklift 10 Tons Pneumatic Tyre 82.4kw / 2000rpm Rated Power
Specifications
Brand Name :
SINOWAY
Model Number :
SWF100D
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Product Name :
Diesel Forklift
Engine model :
ISUZU
Rated power :
82.4kw / 2000rpm
Displacement :
6.494L
Max. Gradeability (loaded/unloaded) :
28%/26%
Base capacity(rated load center) :
10000kg
Description

Heavy Forklift 10 tons Pneumatic Tyre New Style Forklift With ISUZU Engine Hydraulic Material Handler

Engine model ISUZU
Rated power 82.4kw / 2000rpm
Max. Torque 416.8N.m/1500rpm
Displacement 6.494L
Base capacity(rated load center) 10000kg
Load center 600mm
Service weight (unloaded) 12800kg
Front axle load (loaded / unloaded) 20300kg/5620kg
Rear axle load (loaded / unloaded) 2500kg/7180kg
Wheels (front/rear) 4/2
Wheelbase 2800mm
Tyre size (front/rear) 9.00-20-14PR/9.00-20-14PR
Tread width 1600mm/1720mm
Max. Fork height (with std. 2-stage mast) 3000mm
Free lift (with std. 2-stage mast) 200mm
Height, upright lowered (with std. 2-stage mast) 2675mm
Height, upright extended (with std. 2-stage mast) 4175mm
Mast tilt, fwd/back (with std. 2-stage mast) 6°/12°
Carriage width 2210mm
Fork spread (minimum/maximum) 430mm/2130mm
Fork dimensions (T x W x L) 80 x 175 x 1520mm
Length to fork face (with std. 2-stage mast) 4260mm
Overall width 2210mm
Overhead guard height 2646mm
Turning radius (minimum outside) 3850mm
Fork overhang (with std. 2-stage mast) 720mm
Right angle stack (add load length and clearance) 5860mm
Ground clearance (minimum loaded/center of wheelbase) 290mm/300mm
Travel speed (loaded/unloaded) 20/25km/h
Lift speed (loaded/unloaded) 0.31/0.35m/s
Lower speed (loaded/unloaded) 0.41/0.35m/s
Max. Draw-bar pull (loaded) 6800kg
Max. Gradeability (loaded/unloaded) 28%/26%
Service brake Foot/Hydraulic
Parking service Hand/Mechanical

Heavy Diesel Forklift 10 Tons Pneumatic Tyre 82.4kw / 2000rpm Rated Power
