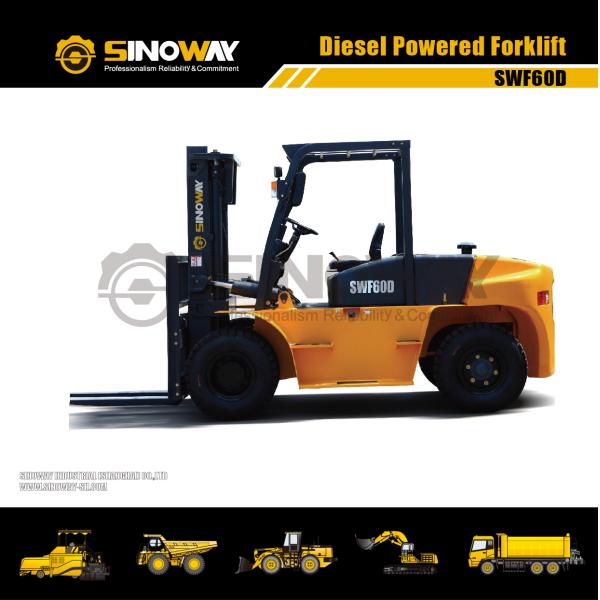

ISUZU Hydraulic Material Handler 6 Ton Diesel Forklift 6000kg Base Capacity
ISUZU Hydraulic Material Handler 6 Ton Diesel Forklift 6000kg Base Capacity
Specifications
Brand Name :
SINOWAY
Model Number :
SWF60D
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Product Name :
Diesel Forklift
Engine model :
ISUZU
Rated power :
82.4kw / 2000rpm
Max. Torque :
416.8N.m/1500rpm
Displacement :
6.494L
Base capacity(rated load center) :
6000kg
Description

6 Ton Diesel Forklift With Good Performance And Low Forklift Price Hydraulic Material Handler

Engine model ISUZU
Rated power 82.4kw / 2000rpm
Max. Torque 416.8N.m/1500rpm
Displacement 6.494L
Base capacity(rated load center) 6000kg
Load center 600mm
Service weight (unloaded) 8500kg
Front axle load (loaded / unloaded) 12950kg/3800kg
Rear axle load (loaded / unloaded) 1550kg/4700kg
Wheels (front/rear) 4/2
Wheelbase 2250mm
Tyre size (front/rear) 8.25-15-14PR/8.25-15-14PR
Tread width 1474mm/1730mm
Max. Fork height (with std. 2-stage mast) 3000mm
Free lift (with std. 2-stage mast) 210mm
Height, upright lowered (with std. 2-stage mast) 2534mm
Height, upright extended (with std. 2-stage mast) 4377mm
Mast tilt, fwd/back (with std. 2-stage mast) 6°/12°
Carriage width 1840mm
Fork spread (minimum/maximum) 300mm/1836mm
Fork dimensions (T x W x L) 65 x 150 x 1520mm
Length to fork face (with std. 2-stage mast) 3517mm
Overall width 2040mm
Overhead guard height 2520mm
Turning radius (minimum outside) 3300mm
Fork overhang (with std. 2-stage mast) 592mm
Right angle stack (add load length and clearance) 5292mm
Ground clearance (minimum loaded/center of wheelbase) 203mm/250mm
Travel speed (loaded/unloaded) 23/25km/h
Lift speed (loaded/unloaded) 0.44/0.52m/s
Lower speed (loaded/unloaded) 0.55/0.4m/s
Max. Draw-bar pull (loaded) 5500kg
Max. Gradeability (loaded/unloaded) 32%/20%
Service brake Foot/Hydraulic
Parking service Hand/Mechanical

ISUZU Hydraulic Material Handler 6 Ton Diesel Forklift 6000kg Base Capacity
