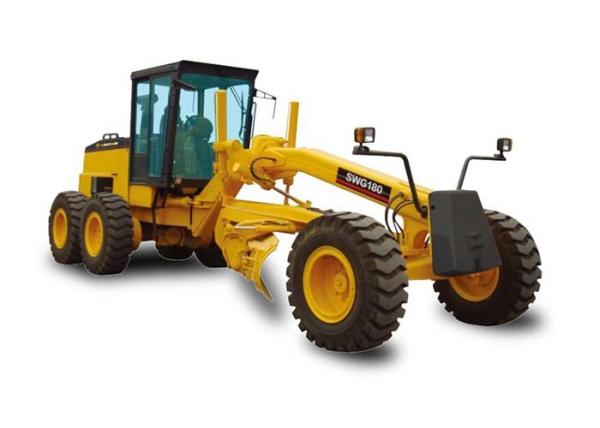

Heavy Duty Soil Moving Equipment , Land Moving Equipment 180 hp Motor Grader
Heavy Duty Soil Moving Equipment , Land Moving Equipment 180 hp Motor Grader
Specifications
Brand Name :
SINOWAY
Model Number :
SWG180
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
30 units per month
Delivery Time :
30 days
Packaging Details :
Nude
Product Name :
Motor Grader
Condition :
Brand New
Applicant :
Earthmoving farmland & ground leveling
Warranty :
One year
Blade width :
3965mm
Operating weight :
15400kg
Description

Heavy Duty Soil Moving Equipment , Land Moving Equipment 180 hp Motor Grader
SINOWAY SWG180 Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement.

Main features
Equipped with reliable Shanghchai engine.
Sing-handle electro-hydraulic controlled power shift T/M, 6 forward & 3 reverse shifts maks operation easy and convenient.
Hydraulic lock auto lock/unlock NO-SPIN differential ensure stability and powerful traction
The international matching hydraulic parts are adopted,with reliable operation.
Box-typed frame and advanced T/M enable it to complete heavy duty work.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added.

Engine 　
Model Cummins 6BTA5.9
Type Six-cylinder,water-cooled,turbocharged, aftercooled, mechanical injection
Rated power 132KW
Rated speed 2300rpm
Transmission System 　
Torque conveter type 3 elements, single stage
Torque ratio 1.5~3
Cooling type Oil cooled, pressure circulation
Gearbox type Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h) F6/R3
Forward/Reverse I 5.2/5.2
Forward/Reverse II 7.9/11.8
Forward/Reverse III 11.8/25.0
Forward IV 17.9
Forward V 25
Forward VI 36.1
Steering System 　
Front wheel steering angle 45º(L/R)
Articulated steering angle 25º(L/R)
Drive type Dual action cylinder
Axle 　
Drive type Four wheel drive(6×4)
Front axle ground clearance 630mm
Front wheel lean 17º(L/R)
Oscillation ±15º
Drive axle Three stages with No-SPIN differential
Working Equipment 　
Control system Hydrostatic drive system
Hydraulic pump Gear pump
Control valve Two sets, five pieces per set
Control pressure 18MPa
Hydraulic oil cylinder Dual action cylinder
Max. tractive force 80.3KN
Ground penetration 500mm
Blade width 3965mm
Blade cycling 360º
Max. bank cutting angle 90º(L/R)
Operating weight 15400kg
Braking System 　
Service brake Hydraulic caliper disc brake actuate 4 rear wheels
Parking brake Hand operated hoop brake
Dimensions 　
Overall length 8700mm
Overall width(wheel outside) 2600mm
Overall height 3500mm
Wheel base 5985mm
Front tread 2150mm
Rear tread 2340mm
Tyre size 17.5-25
Service Capacities 　
Fuel tank 228L
Engine crank case 19L
Hydraulic tank 130L
Gear box 21L
Rear axle 28L
Balance box 23L(each)
Worm gear case 2.5L
Tandem Drive 　
Type Swing type with roller chain transmission
Speed ratio 18.03
