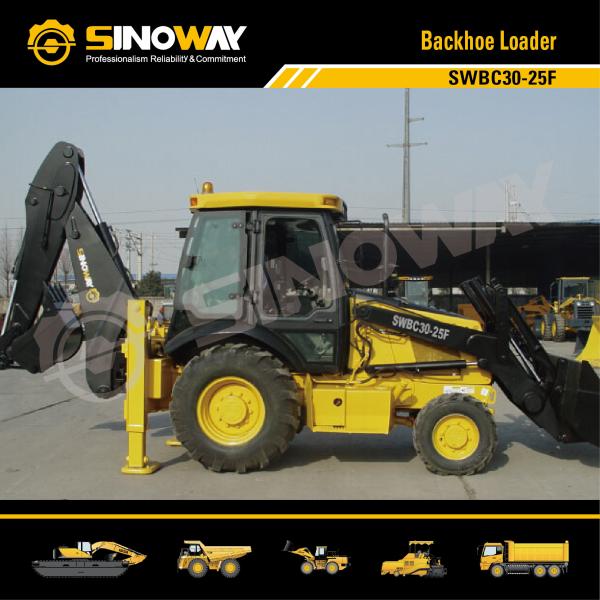

ISO 9001 Soil Moving Equipment 8 Ton Operating Weight 4x4 Backhoe Loader With Side Shift
Earth Moving Machinery
As one of the most commonly used earthmoving equipment, backhoe loader with its great versatility, is a needful of all earthmoving equipment fleets. You might have probably seen a backhoe loader working, when passing by some construction site, or even a Sinoway backhoe loader. With a loader attached in the front, and a backhoe in the rear, the tractor loader backhoe (TLB) is able to perform as mini excavator, as well as act as a front end loader.
Sinoway backhoe loader is developed with reliable power driving system and hydraulic components, with both two wheel drive and four wheel drive backhoe loaders available. Optional attachments like four in one bucket, hydraulic breaker to make your machine more versatile
Main Advantages
Powered by a world class engine delivering unmatched and dependable power in its class yet it produce low noise and low emission.
Ergonomic designed cab with improved overall visibility and well placed controls. They are easy to see, easy to reach and easy to handle.
Perfectly matched power train system, the differential lock on rear axle aids to deliver high tractive force. Oil-bath brake allows unilateral braking function to be executed, requiring minimum turning radius.Easy engine access, convenient placement of key parts and fluid refill points.
The pilot valve controlled loader, as well as the backhoe valve, makes for easy and flexible operation of the backhoe loader.
Smartly designed, the extendible dipper for the excavator greatly reduces the travelling distance and improves the working efficiency.
The arm of the wheel loader can be extended to increase the working range.
Overall Dimension | ||
Length(with bucket on ground) | 5835(mm) | |
Width (at landing leg) | 2240(mm) | |
Width(to the outside of the tire) | 1993(front wheel) 2057mm(rear wheel) | |
Bucket width | 2313(mm) | |
Height (to the top of the cab) | 2720(mm) | |
Height (to the top of the digging arm) | 3548(mm) | |
Wheelbase | 2155.5(mm) | |
Back wheel tread | 1700(mm) | |
Front wheel tread | 1880(mm) | |
Min. ground clearance | 355(mm) for 2WD 275(mm) for 4WD | |
Min. ground clearance of tail | 350(landing leg), 520(centre) | |
Traveling speed (4 forward and 4 reverse gears) | ||
(1) I gear forward/reverse | 6/6(km/h) | |
(2) II gear forward/reverse | 9.6/9.6(km/h) | |
(3) III gear forward/reverse | 20.5/20.5(km/h) | |
(4) IV gear forward/reverse | 38/38(km/h) | |
Loading specification | ||
Rated loading capacity | 1700kg(standard bucket) | |
Operating weight | 8000kg(standard bucket) | |
Rated bucket lifting capacity | >34KN | |
Bucket capacity | 1.0m3(standard bucket) | |
Max. breakout force | >49kN(swinging arm), 60(bucket) | |
Max. dumping clearance | 2714mm(standard bucket) | |
Max. dumping reach | 845mm(standard bucket) | |
Dumping angle at full height | 43.5º(standard bucket) | |
Tilting angle of bucket | On ground | 41° |
For transportation | 41.7° (350) | |
Max. digging depth (with bucket bottom horizontal) | 80mm | |
Min. turning radius (centre of the tire outside) | 4380mm | |
Lifting time of loading bucket | ≤4.5(sec.) | |
Lowering time of loading bucket | ≤3.5(sec.) | |
Dumping time | ≤1.5(sec.) | |
Digging specification | ||
Rated digging bucket capacity | 0.2(m3) | |
Max. digging depth | 4405(mm) | |
Max. digging force | >56.1±10%kN(bucket lip) | |
Max. digging radius | 5390(mm) | |
Max. dumping height | 3510(mm) | |
Central offset | 550mm | |
Swing angle | 180° | |
Max. rollback angle of digging bucket | 201° | |
Diesel engine | ||
Model | Cummins/ Perkins | |
Type | Direct injection, turbocharged, water-cooled | |
Rated output | 74 kW/100HP | |
Rated speed | 2200rpm | |
Total displacement of cylinder | 4.5(L) | |
Cylinder diameter /stroke | 102/138(mm) | |
Voltage of starting motor | 12(V) | |
Max. torque | 414N.m at 1500rpm | |
Starting type | Electric | |
Min. specific fuel consumption | 225(g/kW.h) | |
Oil Capacity | ||
Fuel(diesel) | 151(L) | |
Engine lubricating oil | 11(L) | |
Oil for converter and gear box | 18.5(L) | |
Oil for hydraulic system | 110(L) | |
Oil for driving axles (F/R) | 7.6+17(L) |
