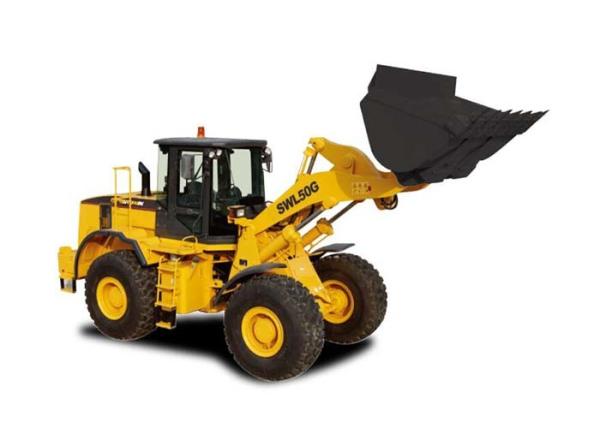

Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight
Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight
Specifications
Brand Name :
SINOWAY
Model Number :
SWL50G
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Wheel Loader
Rated power :
220hp
Transmission :
ZF power shift
Tipping load :
13200kg
Bucket breakout force :
158KN
Braking System :
Wet multi disc
Description

Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight

Soil Moving Machinery
Sinoway offers a complete line of wheel loaders, covering from maneuverable compact wheel loader to productive heavy wheel loader. With world-class components used and more care built in, you will surely feel the robust power with comfort operating by experiencing our new F series models of front end bucket loader.
Sinoway wheel loaders are widely employed in the digging, transporting and loading construction materials like soil, sand and gravel. With various configurations, Sinoway wheel loader is devoted to meet both your applications as well as your budgets. Thanks to our variety of attachments for wheel loader, Sinoway even extend your loading applications to farming, stockpile scooping, snow plowing, logging and timber industry.

Main Features

Equipped with Cummins engine with strong power and high reliability.
ZF electronic controlled gearbox is adopted for excellent reliability and easy & comfortable operation, which reduces the driver’s fatigue when performing continuous work, thus improving the efficiency.
ZF axles with excellent reliability and bearing capacity are adopted to complete the operation in various heavy-duty working conditions.
The optimal matching of power system and transmission system greatly increases traction force. Long span articulated structure is adopted for larger ground clearance, ensuring good passing-through performance even in winding mountain roads.
Upgraded sealing technology in the hydraulic system and butt welding technology of steel tubes improve the sealing performance significantly.
CAE analysis is applied to structural components system to optimize the structure. Welding robot is used to ensure reliability of the structure components system.
Central articulated structure enables the rear wheel track to overlap the front one, decreasing power loss while increasing the tipping load and the breakout force for excellent performance in heavy-duty working condition.
Optimized working devices increase the lifting force, load ratio of bucket and overall efficiency.
Full decorated cab with all-around clear visibility, ample space, low noise, comfortable seat and optimized shock damping system provides a pleasant driving environment with A/C as standard configuration.
Engine 　
Emission regulation Tier 2/Stage II
Make Cummins
Gross power 164kw(220hp)@2200rpm
Net power 157kw(198hp)@2200rpm
Peak torque 950N.m@1400rpm
Displacement 8.9L
Number of cylinder 6
Aspiration Turbo air-to-air after cooled
Main Technical Specification 　
Bucket capacity 3.0m³
Operationg weight 17100kg
Tipping load 13200kg
Full turn tipping load 11750kg
Bucket breakout force 158kN
Maximum Dump Angle at Full Height 45°
Dump Clearance at Full Height Discharge 3100mm
Dump Reach at Full Height Discharge 1035mm
Max.hinge pin height 4154mm
Max.digging depth,bucket level 61mm
Bucket rollback at ground level 45°
Bucket rollback at carry 50°
Bucket Rollback at Maximum Height 61°
Implement Hydraulic System 　
Main pump tyoe Gear
Main relief pressure 20Mpa
Raise 6.0sec
Dump time 1.5sec
Float down time 3.0sec
Fastest total cycle time 10.5sec
Axles And Tyre 　
Differential front type Limited slip standard
Differential rear type Limited slip standard
Axle oscillation ±14°
Tire size 23.5-25
Braking System 　
Service brake type Wet multi disc
Service brake actuation Hydraulic
Parking brake type Air over hydraulic
Parking brake actuation Spring apply,hydraulic release
Steering System 　
Steering configuration Articulated
Steering relief pressure 16 Mpa
Transmission System 　
Transmission type Power shift
Transmission configuration Counter shaft
Torque converter Single stage,three element
Max.travel speed,fwd 37.0km/h
Max.travel speed,rev 23.0km/h
Number of speed,fwd 4
Number of speed,rev 3
Dimensions 　
Length wiht bucket down 8150mm
Width over tires 2750mm
Wheel base 3250mm
Wheel tread 2150mm
Ground clearance 431mm
Turn angle,either side 38°
Rear angle of departure 30°
Turning Radius, Outside of Tire 6232mm
Turning Radius, Center of Tire 5932mm
Turning Radius, Bucket Carry 6913mm
Service Capacities 　
Fuel tank 330L
Engine oil 30L
Cooling system 58L
Hydraulic tank 210L
Gear box and converter 45L
Driving axles (F/R) 34L


Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight
